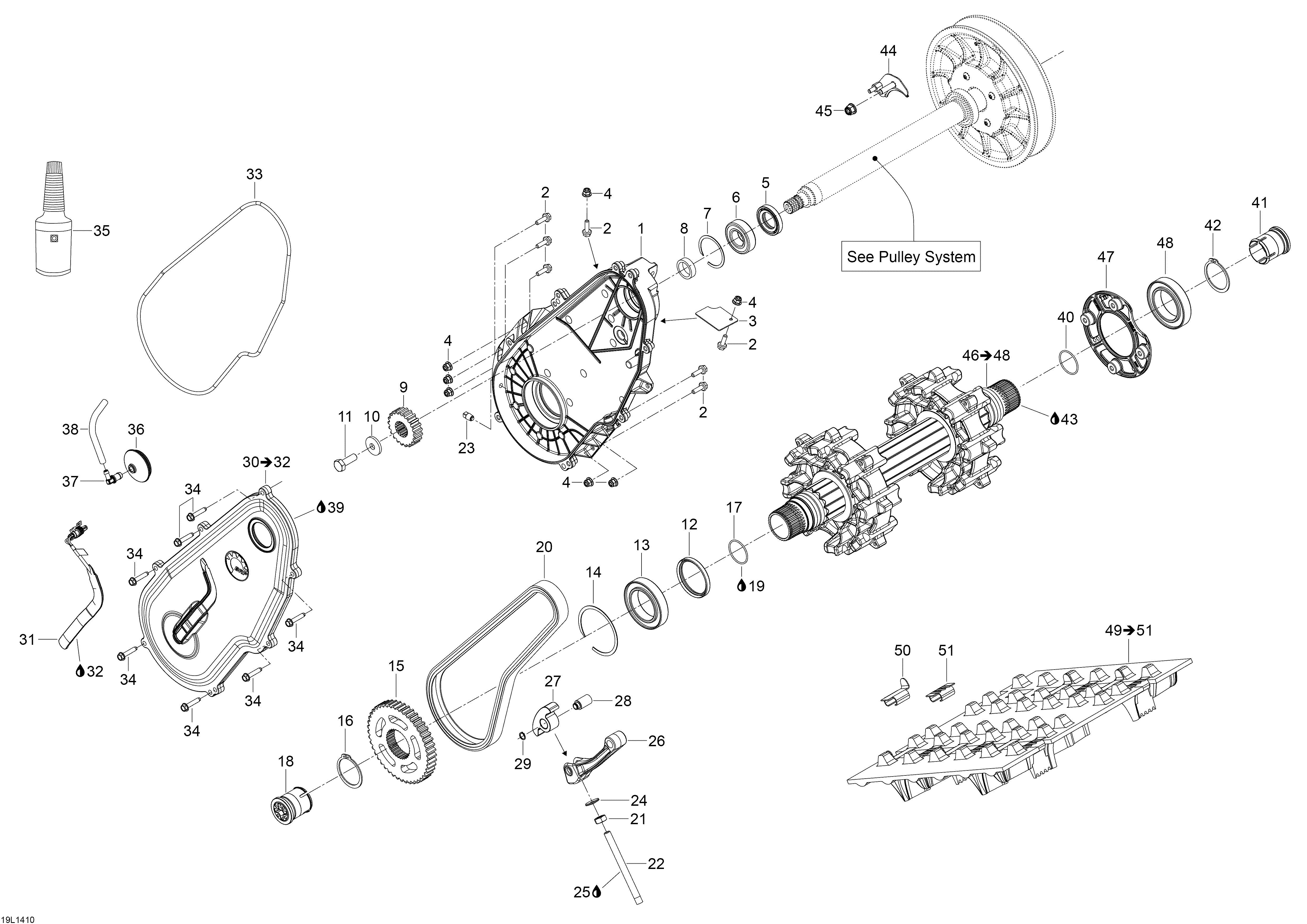

05- Drive System для BRP Lynx 49 Ranger 600 E-TEC - 2014
-
№АртикулНазвание
-
1504153180 ChaincaseChaincase
-
2207662034 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
3504152844 Middle PlateMiddle Plate
-
4233261434 Elastic Flange Nut M6Elastic Flange Nut M6
-
5415049300 Oil SealOil Seal
-
6293350055 Ball BearingBall Bearing
-
7504152576 CirclipCirclip
-
8504152628 ShimShim
-
9504096200 Sprocket, 21 TeethSprocket, 21 Teeth
-
10504152784 Spring WasherSpring Washer
-
11207503046 Hex. Flange Screw M10 x 30Hex. Flange Screw M10 x 30
-
12504152571 SealSeal
-
13293350059 Ball BearingBall Bearing
-
14504152582 CirclipCirclip
-
15504152581 Sprocket, 49 TeethSprocket, 49 Teeth
-
16504152572 CirclipCirclip
-
17293300122 O RingO Ring
-
18504152619 Magnetic CapMagnetic Cap
-
20504152630 Drive ChainDrive Chain
-
21232006414 NutNut
-
22504152602 Adjusting ScrewAdjusting Screw
-
23504152636 Magnetic PlugMagnetic Plug
-
24293200128 Seal RingSeal Ring
-
25619590098 Chaincase OilChaincase Oil
-
26504152685 Chain TensionerChain Tensioner
-
27504152739 Chain SliderChain Slider
-
28504152841 Axle TensionerAxle Tensioner
-
29504152282 CirclipCirclip
-
30504153146 Cover Ass?y. Includes 30 To 32Cover Ass?y. Includes 30 To 32
-
31504152896 SensorSensor
-
32293800066 Sealant 5900, 300mlSealant 5900, 300ml
-
33293300130 O RingO Ring
-
34210263080 Hex. HD Forming Screw M6 x 30Hex. HD Forming Screw M6 x 30
-
35619590098 Chaincase OilChaincase Oil
-
36504152860 CapCap
-
37414580700 Male ConnectorMale Connector
-
38415080200 HoseHose
-
39619590098 Chaincase OilChaincase Oil
-
40293300122 O RingO Ring
-
41504152619 Magnetic CapMagnetic Cap
-
42504152572 CirclipCirclip
-
44504152974 Bearing HousingBearing Housing
-
45233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
46504153257 Drive Axle Ass?y. Includes 46 To 48Drive Axle Ass?y. Includes 46 To 48
-
47504152949 Bearing HousingBearing Housing
-
48293350059 Ball BearingBall Bearing
-
49504153173 Track Ass?y (406 x 3923 x 51). Includes 49 To 51Track Ass?y (406 x 3923 x 51). Includes 49 To 51
-
50415129528 GuideGuide
-
51504152651 CleatCleat
