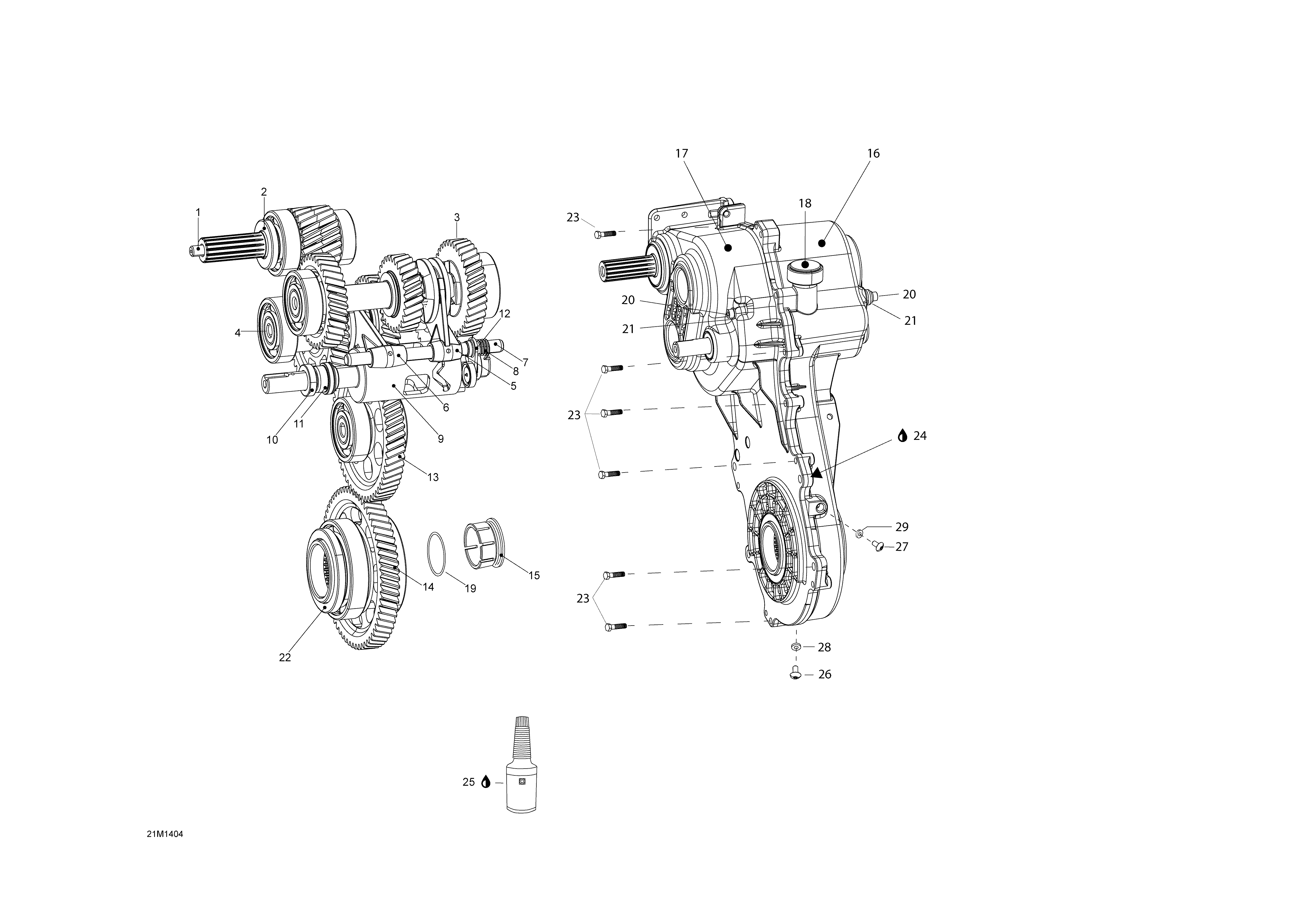

05_Transmission для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2014
-
№АртикулНазвание
-
-504153220 Transmission ass'y, High speedTransmission ass'y, High speed
-
1619230009 Counter shaft ass'yCounter shaft ass'y
-
2619230010 Oil sealOil seal
-
3619230051 Main shaft ass'yMain shaft ass'y
-
4619230013 Reverse shaft ass'yReverse shaft ass'y
-
5619230014 Fork, forewards (1-2)Fork, forewards (1-2)
-
6619230015 Fork, reverseFork, reverse
-
7619230016 ShaftShaft
-
8619230017 SpringSpring
-
9619230018 Shifting drumShifting drum
-
10619230019 Oil sealOil seal
-
11619230020 BushingBushing
-
12619230021 Locking leverLocking lever
-
13619230022 Middle gear ass'yMiddle gear ass'y
-
14619230023 Lower gear ass'yLower gear ass'y
-
15504152821 Magnetic plugMagnetic plug
-
16504153194 Cover, outsideCover, outside
-
17504153192 Cover, insideCover, inside
-
18619230027 Cap, oilCap, oil
-
19619230028 O-ringO-ring
-
20619230029 ScrewScrew
-
21619230030 WasherWasher
-
22619230031 Oil sealOil seal
-
23619230033 Screw M6 x 20Screw M6 x 20
-
24420297906 SealSeal
-
25619590182 OIL-GEAR SYNTHETIC (12 x 1l)OIL-GEAR SYNTHETIC (12 x 1l)
-
26619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
27619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
28615580812 Gasket-ringGasket-ring
-
29619230047 SEAL RINGSEAL RING
