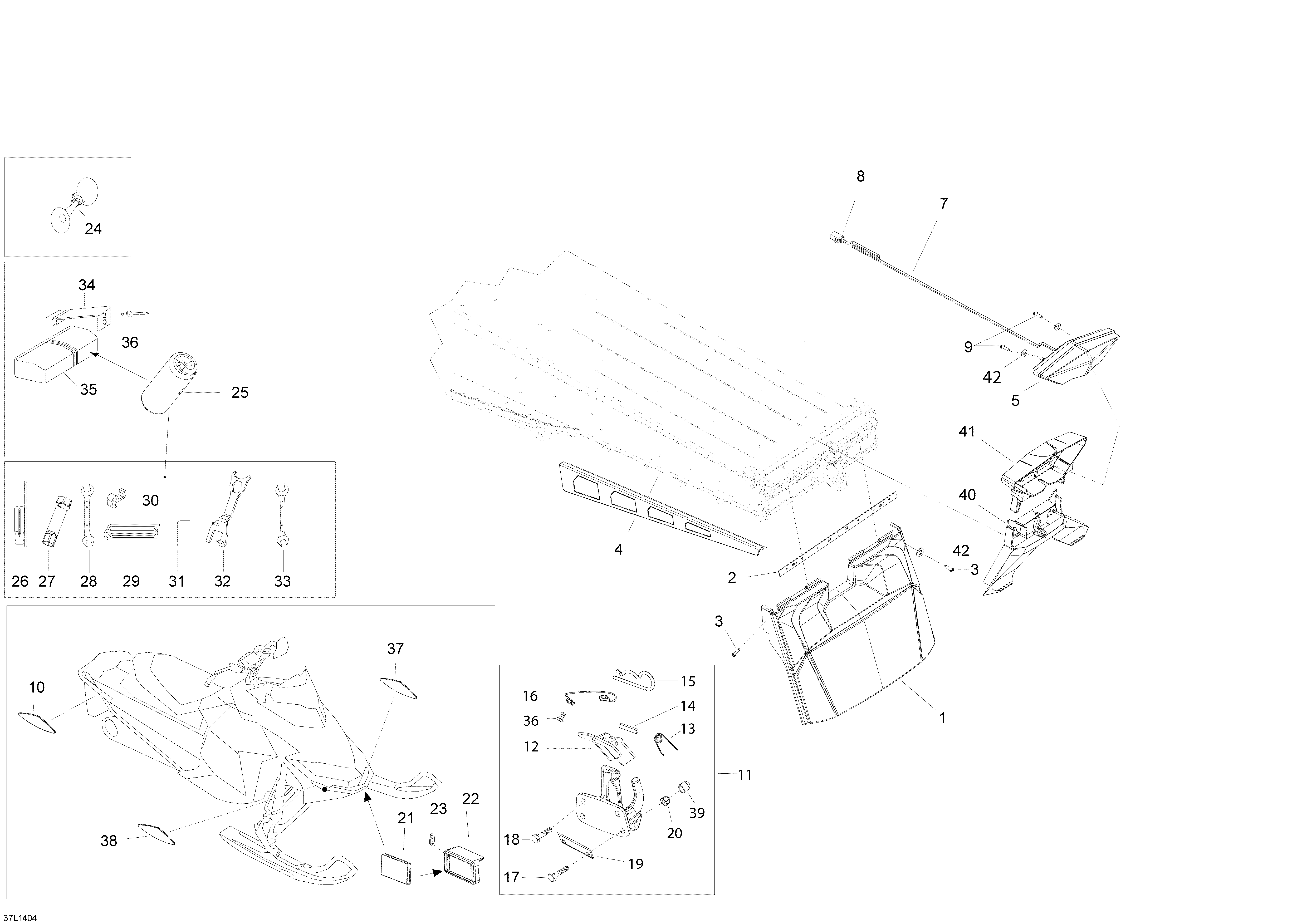

09- Utilities для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2014
-
№АртикулНазвание
-
1520001408 Snow Guard Lynx 600 Long BlackSnow Guard Lynx 600 Long Black
-
2520001022 Fastening Plate 600Fastening Plate 600
-
3250000676 Screw formingScrew forming
-
4520000693 Snow guard R.H.Snow guard R.H.
-
4520000694 Snow guard L.H.Snow guard L.H.
-
5520001233 Rear lightRear light
-
7520000849 Wiring HarnessWiring Harness
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
940611 Screw plastofaxScrew plastofax
-
10705002423 ReflectorReflector
-
11520001039 Hitch assyHitch assy
-
12520001041 Locking PlateLocking Plate
-
13545693 SpringSpring
-
1441012 Spring Pin 6 x 30Spring Pin 6 x 30
-
1541029 Cotter SpringCotter Spring
-
165446839 Retainer CableRetainer Cable
-
17207784044 Bolt 8 x 40Bolt 8 x 40
-
18207782544 Bolt 8 x 25Bolt 8 x 25
-
19520000727 Bolt plateBolt plate
-
20233281414 Flanged nut M8Flanged nut M8
-
2121118 Reflector brightReflector bright
-
22520000871 Reflector supportReflector support
-
2327120 Tie rapTie rap
-
24549011291 HornHorn
-
25529000066 Tool kitTool kit
-
26529000004 Screw DriverScrew Driver
-
27529000046 Socket WrenchSocket Wrench
-
28529000002 Fork WrenchFork Wrench
-
31520001142 KeyKey
-
32520000988 WrenchWrench
-
3334017 WrenchWrench
-
345346728 Toolkit support springToolkit support spring
-
3636108 Rivet steelRivet steel
-
37520000844 Reflector LHReflector LH
-
38520000843 Reflector RHReflector RH
-
3928056 Cover plugCover plug
-
40511000559 SupportSupport
-
41511000763 Rear light coverRear light cover
-
42250200025 Washer M5Washer M5
