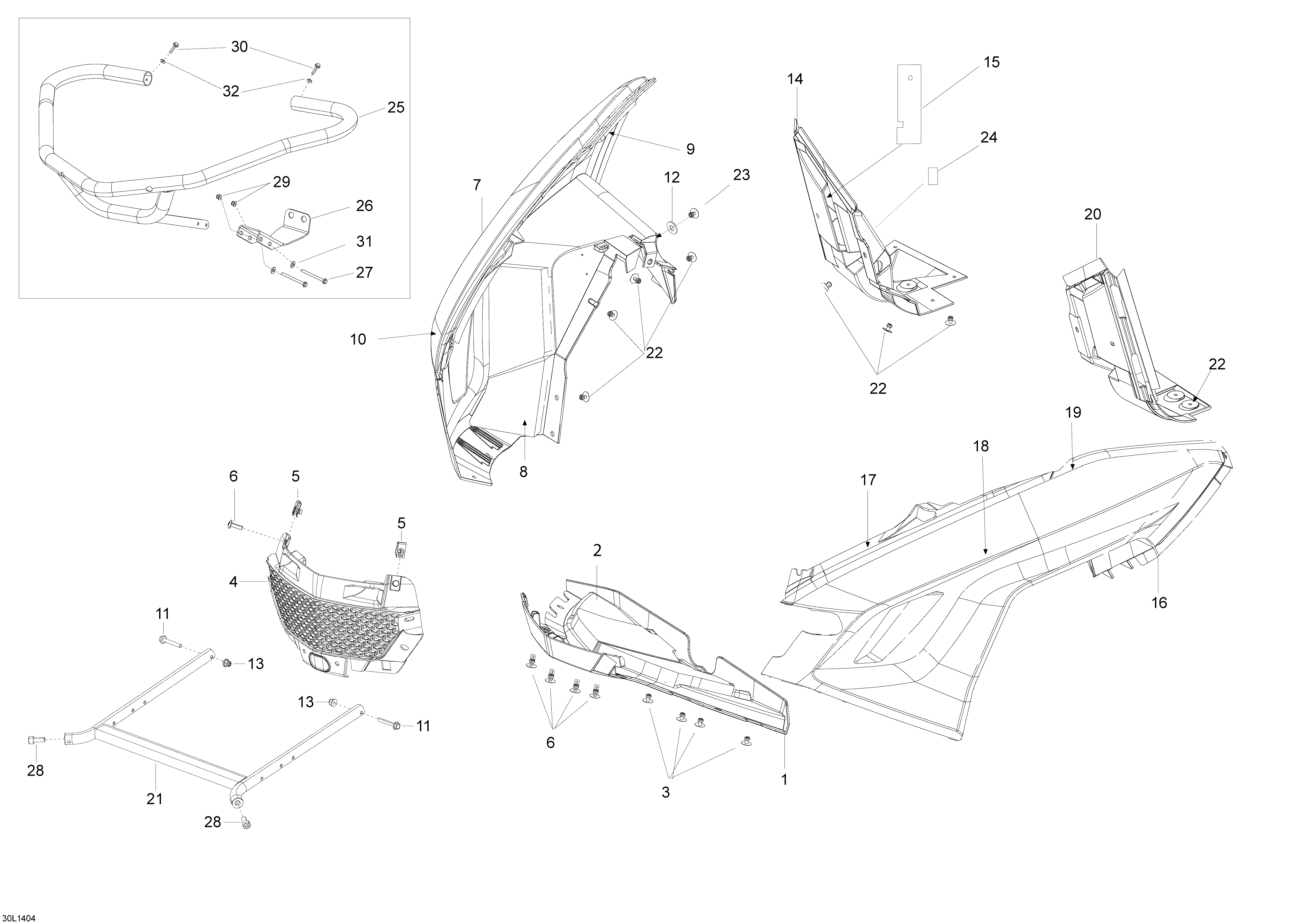

09- Bottom Pan для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2014
-
№АртикулНазвание
-
1502007184 Bottom-pan frontBottom-pan front
-
2502007002 IsolationIsolation
-
3293150103 Rivet 3/16Rivet 3/16
-
4502007145 GrillGrill
-
5250100113 Extruded panel nut M6 X 1.0Extruded panel nut M6 X 1.0
-
6250000128 Torx-Truss M/S GM6047M NYLON PATCHTorx-Truss M/S GM6047M NYLON PATCH
-
7502007180 Bottom-pan R.H. assyBottom-pan R.H. assy
-
8502007006 IsolationIsolation
-
9502007008 IsolationIsolation
-
10502007009 IsolationIsolation
-
11207664044 ScrewScrew
-
12234052490 WasherWasher
-
13233261414 NutNut
-
14502007193 Bottom-pan rear, R.H.Bottom-pan rear, R.H.
-
15502007038 Aluminium foilAluminium foil
-
16502007182 Bottom-pan L.H. assy CEBottom-pan L.H. assy CE
-
17502007003 IsolationIsolation
-
18502007185 IsolationIsolation
-
20502007195 Bottom-pan rear, L.H.Bottom-pan rear, L.H.
-
21502007235 BumberBumber
-
22293150104 RivetRivet
-
23390402200 RivetRivet
-
2444110 Aluminum foilAluminum foil
-
25502007273 Extra Bumber PaintExtra Bumber Paint
-
26502007022 Lower Fastening PlateLower Fastening Plate
-
27207066044 Screw -Hex.Cap DIN.931Screw -Hex.Cap DIN.931
-
28205082044 Screw socket M8 x 20Screw socket M8 x 20
-
29233261414 Nut-Flange DIN.6926Nut-Flange DIN.6926
-
30250000223 Torx truss M6 x 16Torx truss M6 x 16
-
31234061410 Washer -Flat M6 DIN.125AWasher -Flat M6 DIN.125A
-
3220117 WasherWasher
