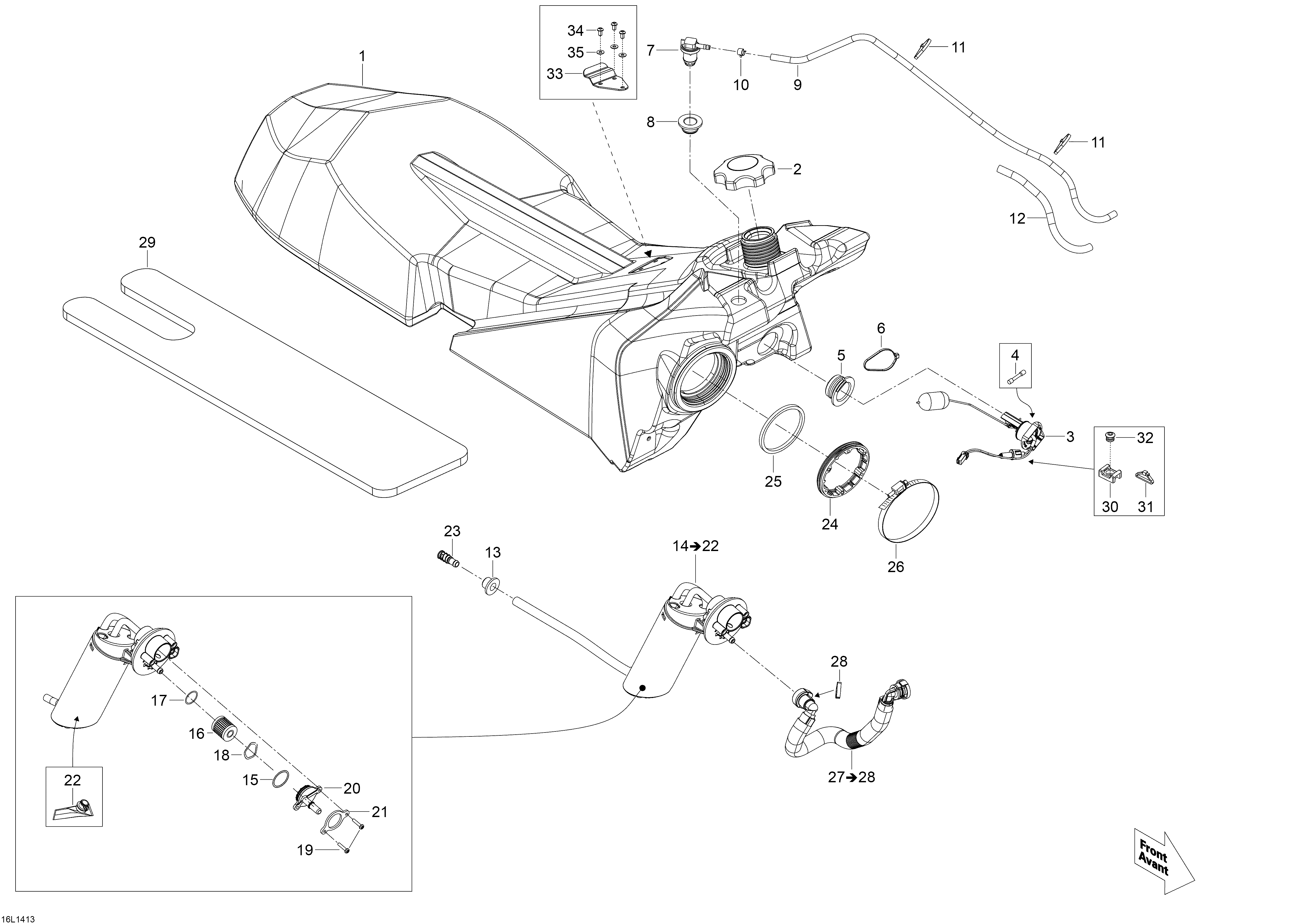

02- Fuel System для BRP Lynx Rave 600 ACE - 2014
-
№АртикулНазвание
-
1513033700 Fuel TankFuel Tank
-
2513033723 CapCap
-
3513033642 Fuel SensorFuel Sensor
-
4710001995 Fuse 0.5AFuse 0.5A
-
5513033606 GrommetGrommet
-
6293750008 Tie Rap 368mmTie Rap 368mm
-
7513033188 Check ValveCheck Valve
-
8513033596 GrommetGrommet
-
9415080200 HoseHose
-
10414554800 Spring ClampSpring Clamp
-
11414115200 Tie Rap 180mmTie Rap 180mm
-
12504153074 Protector TubeProtector Tube
-
1328037 GrommetGrommet
-
14513033694 Fuel Pump. Includes 14 To 22Fuel Pump. Includes 14 To 22
-
15415129509 O RingO Ring
-
16415129510 Fuel FilterFuel Filter
-
17415129511 O RingO Ring
-
18415129512 Wave WasherWave Washer
-
19415129513 ScrewScrew
-
20415129685 CoverCover
-
21415129569 Fuel Pump RingFuel Pump Ring
-
22415129451 Fuel Filter (In Tank, Fuel Pump)Fuel Filter (In Tank, Fuel Pump)
-
23414872100 Fuel Filter (In Tank, Fuel Line)Fuel Filter (In Tank, Fuel Line)
-
24513033180 RingRing
-
25513033334 GasketGasket
-
26270000892 ClampClamp
-
27513033582 Hose Assy. Includes 27 To 28Hose Assy. Includes 27 To 28
-
28513033135 Locking ClipLocking Clip
-
29513033588 Insulating FoamInsulating Foam
-
30515176795 ClipClip
-
31293750002 Tie Rap 142mmTie Rap 142mm
-
32390402000 Pop Rivet 3/16Pop Rivet 3/16
-
33510005129 Front Seat Fastening PlateFront Seat Fastening Plate
-
34205961060 Screw Socket M6 x 10Screw Socket M6 x 10
-
35234061410 Flat WasherFlat Washer
