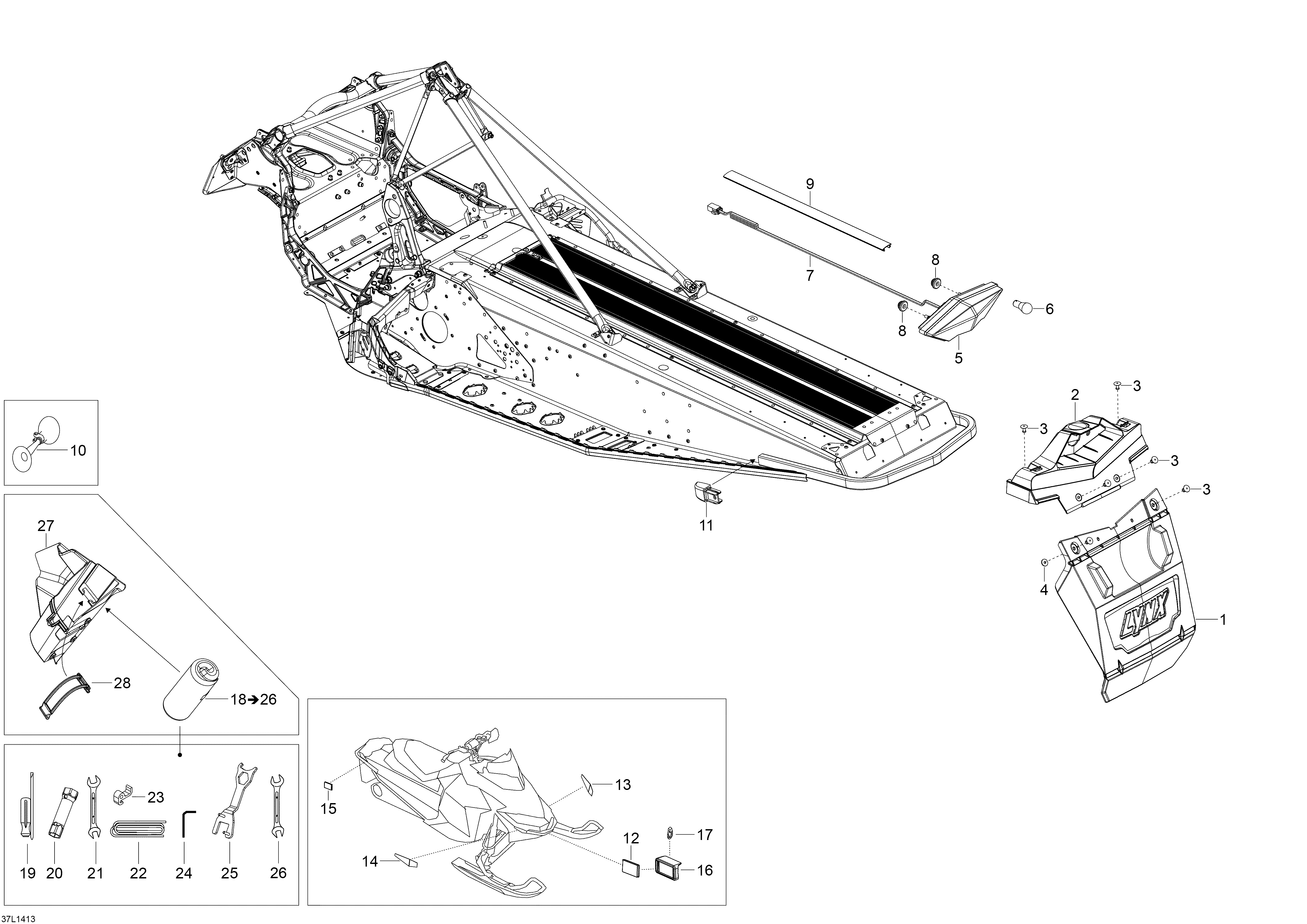

09- Utilities для BRP Lynx Rave 600 ACE - 2014
-
№АртикулНазвание
-
1520001070 Snow GuardSnow Guard
-
2511000583 Light CoverLight Cover
-
3293150108 Pop Rivet 3/16Pop Rivet 3/16
-
4517124300 WasherWasher
-
5520000587 Rear LightRear Light
-
6520000758 BulbBulb
-
7520000677 Wiring HarnessWiring Harness
-
8705003666 GrommetGrommet
-
9520000829 TrimTrim
-
10549011291 HornHorn
-
11520000567 CapCap
-
1221118 Reflector, BrightReflector, Bright
-
13520000719 Reflector Front LHReflector Front LH
-
14520000718 Reflector Front RHReflector Front RH
-
1521121 Reflector, YellowReflector, Yellow
-
16520000871 Reflector SupportReflector Support
-
1727120 Tie RapTie Rap
-
18529000065 Tool Kit. Includes 18 To 26Tool Kit. Includes 18 To 26
-
19529000004 Screw DriverScrew Driver
-
20529000046 Socket WrenchSocket Wrench
-
21529000002 Fork Wrench 10/13Fork Wrench 10/13
-
22412500200 Starter RopeStarter Rope
-
23529000060 Starter GripStarter Grip
-
24520001142 KeyKey
-
25520000988 WrenchWrench
-
2634017 Wrench 17/19Wrench 17/19
-
27520000894 Tool Kit RackTool Kit Rack
-
28520000528 LatchLatch
