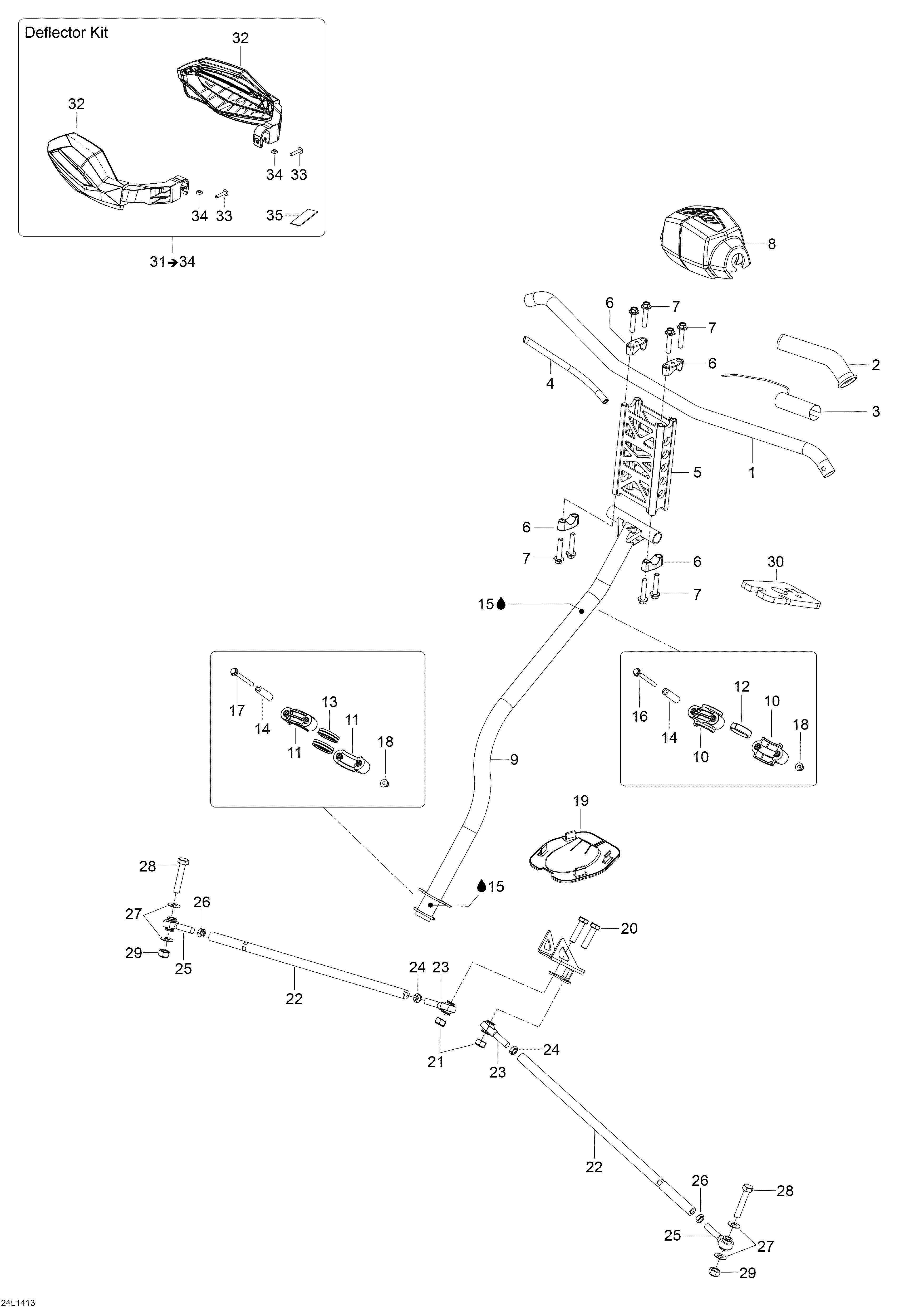

07- Steering System для BRP Lynx Rave 600 ACE - 2014
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152467 Heated FilmHeated Film
-
4515175830 Protector TubeProtector Tube
-
5860200819 ExtensionExtension
-
6506152395 Steering SupportSteering Support
-
7250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
8506152265 Steering PadSteering Pad
-
9506152585 Main TubeMain Tube
-
10506152508 Half Housing UpperHalf Housing Upper
-
11506152217 Half Housing LowerHalf Housing Lower
-
12506152509 Vibrat. Gasket UpperVibrat. Gasket Upper
-
13506152518 Vibrat. Gasket LowerVibrat. Gasket Lower
-
14506152297 Housing BushingHousing Bushing
-
16207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
17207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
18233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19506152163 PlatePlate
-
20207004044 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
21232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
22506152496 Tie RodTie Rod
-
23506152081 Ball JointBall Joint
-
24250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
25506152019 Ball JointBall Joint
-
26732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
27506152194 WasherWasher
-
28207005544 Hex Screw M10 x 55Hex Screw M10 x 55
-
29232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
30506152521 CushionCushion
-
31517305053 Deflector Kit, White. Includes 30 To 34Deflector Kit, White. Includes 30 To 34
-
33250000501 Screw M6 x 35Screw M6 x 35
-
34250000498 Square Nut M6Square Nut M6
-
35294000973 Friction TapeFriction Tape
