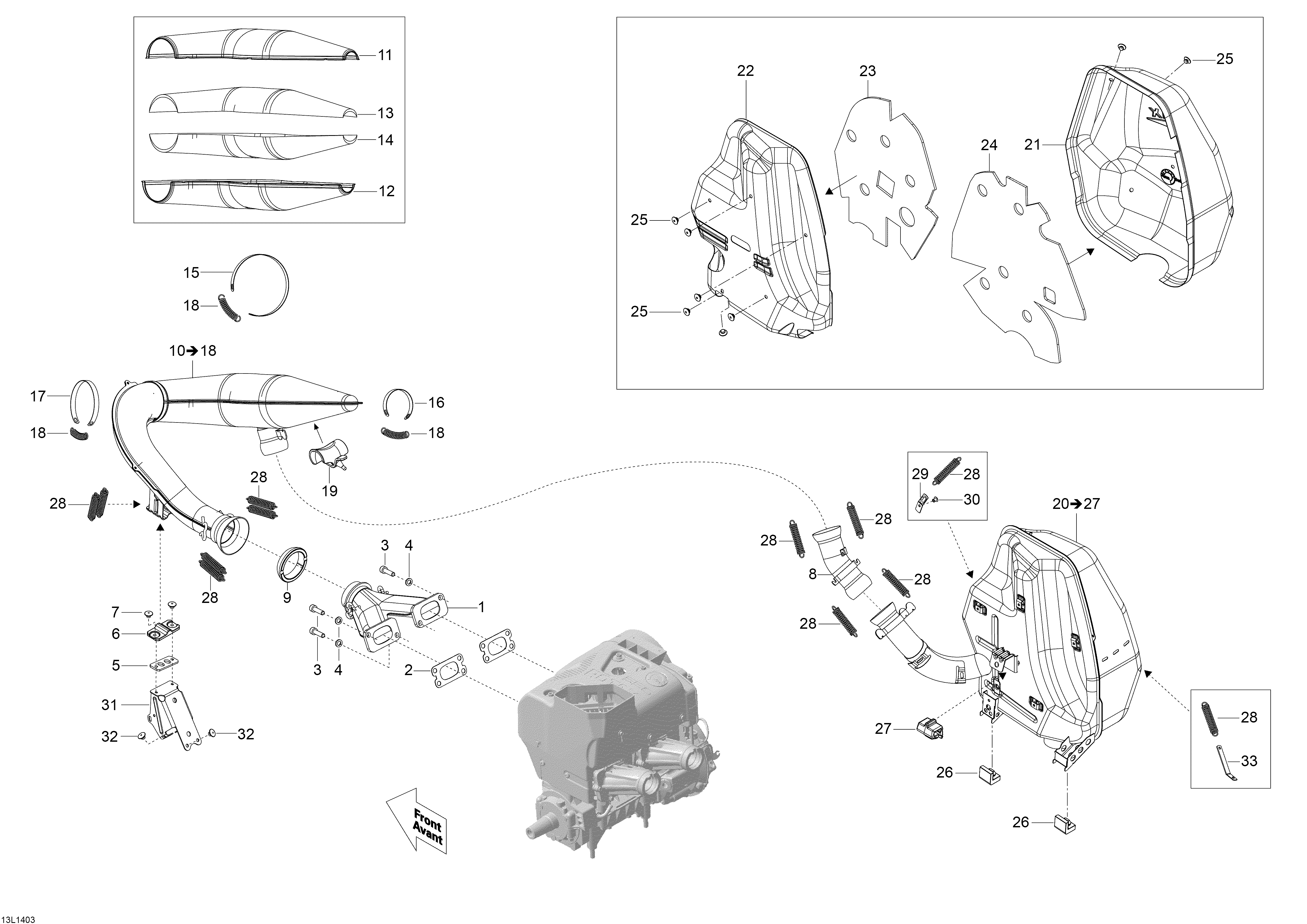

01- Exhaust System для BRP Lynx 59 YETI 550 - 2014
-
№АртикулНазвание
-
1420673065 Exhaust ManifoldExhaust Manifold
-
2420831849 Gasket 1.0mmGasket 1.0mm
-
3205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
4250200111 WasherWasher
-
5514054806 Riser PlateRiser Plate
-
6514054617 BumperBumper
-
7293150108 Pop RivetPop Rivet
-
8514054411 Exhaust ElbowExhaust Elbow
-
9514053644 Exhaust GasketExhaust Gasket
-
10514054414 Calibrated Tube Ass'y. Includes 10 To 18Calibrated Tube Ass'y. Includes 10 To 18
-
11514054208 Rear Upper Half EnvelopeRear Upper Half Envelope
-
12514054210 Rear Lower Half EnvellopeRear Lower Half Envellope
-
13514054244 Upper Insulating WoolUpper Insulating Wool
-
14514054243 Lower Insulating WoolLower Insulating Wool
-
15514053502 Retaining StrapRetaining Strap
-
16514053491 Retaining StrapRetaining Strap
-
17514053498 Retaining StrapRetaining Strap
-
18514053643 SpringSpring
-
19514054513 BumperBumper
-
20514055055 Muffler Ass'y. Includes 20 To 27Muffler Ass'y. Includes 20 To 27
-
21514054433 RH DeflectorRH Deflector
-
22514055069 LH DeflectorLH Deflector
-
23514054421 LH Insulated WoolLH Insulated Wool
-
24514054711 RH Insulating WoolRH Insulating Wool
-
25390910000 Pop Rivet 3/16Pop Rivet 3/16
-
26514054529 Lower StopperLower Stopper
-
27514054606 Upper StopperUpper Stopper
-
28415107100 SpringSpring
-
29514054391 Spring BracketSpring Bracket
-
30390402200 Avex RivetAvex Rivet
-
31514054767 Muffler SupportMuffler Support
-
32293150096 RivetRivet
-
33514054846 Spring BracketSpring Bracket
