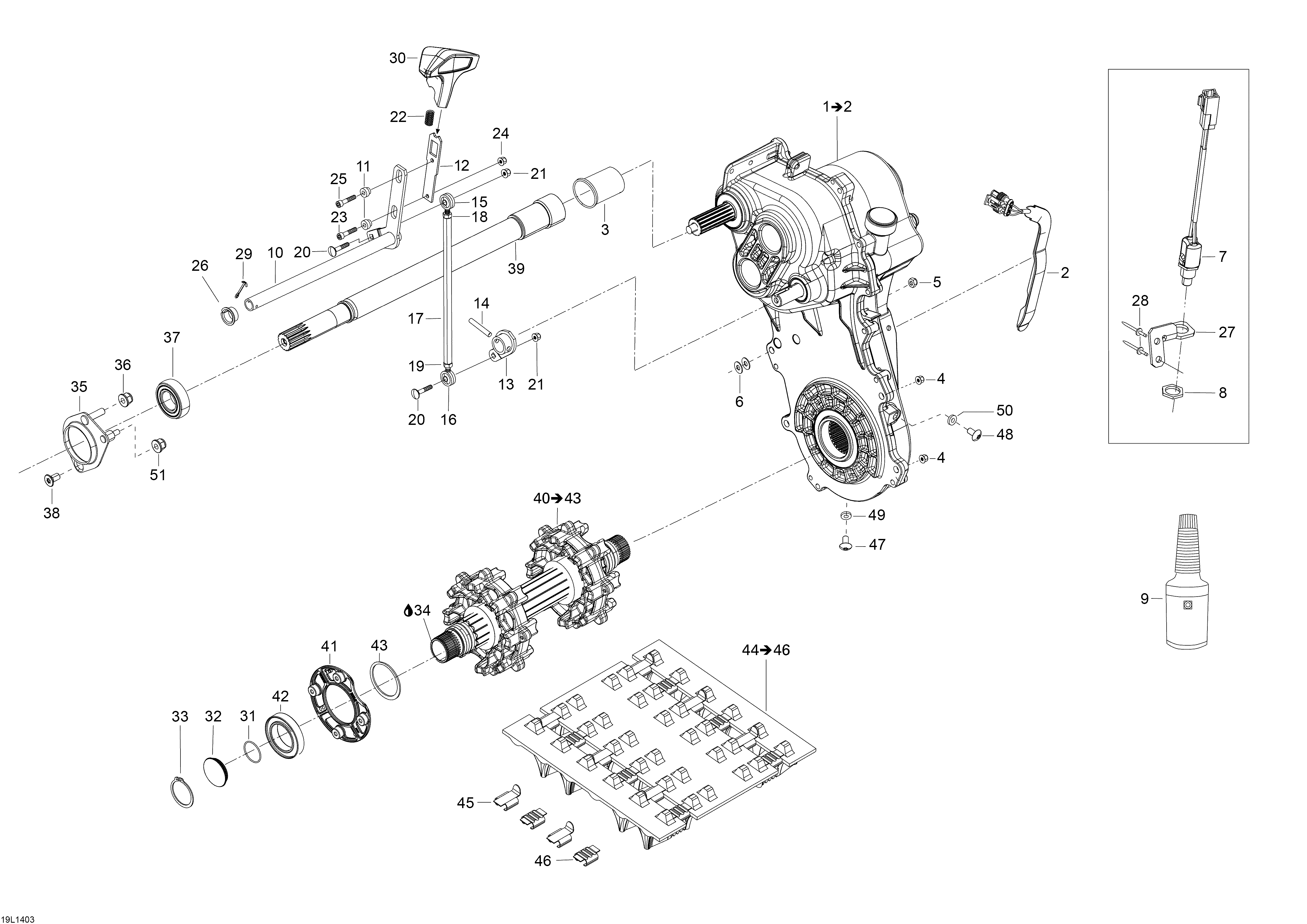

05- Drive System для BRP Lynx 59 YETI 550 - 2014
-
№АртикулНазвание
-
1504153219 Gear Box, Slow Ratio. Includes 1 To 2Gear Box, Slow Ratio. Includes 1 To 2
-
2504152896 SensorSensor
-
3504153054 Protective RubberProtective Rubber
-
4233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6503193095 WasherWasher
-
7515176472 SwitchSwitch
-
8250000373 NutNut
-
9619590182 Gearbox OilGearbox Oil
-
10504152887 ShifterShifter
-
11504152787 SleeveSleeve
-
12504152831 Shifter ArmShifter Arm
-
13504152834 Lever WeldLever Weld
-
1441012 Spring Pin 6 x 30Spring Pin 6 x 30
-
15707000689 Ball Joint RHBall Joint RH
-
16707000690 Ball Joint LHBall Joint LH
-
17504152836 RodRod
-
18232061414 Nut M6Nut M6
-
19232066414 Nut LH Thread M6Nut LH Thread M6
-
20250000677 Bolt Carriage M6 x 20Bolt Carriage M6 x 20
-
21232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
22504152882 SpringSpring
-
23205052544 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
24233251434 Nut M5Nut M5
-
25250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
26504152890 BushingBushing
-
27504152902 Sensor BracketSensor Bracket
-
28293150163 RivetRivet
-
29250400035 Cotter PinCotter Pin
-
30504152837 Shifter HandleShifter Handle
-
31293300122 O-RingO-Ring
-
32504152619 Magnetic CapMagnetic Cap
-
33504152572 CirclipCirclip
-
35504153187 Bearing HousingBearing Housing
-
36233281414 Nut M8Nut M8
-
37293350074 Ball BearingBall Bearing
-
38235381646 Torx Screw M8 x 16Torx Screw M8 x 16
-
39504152963 Counter ShaftCounter Shaft
-
40504153208 Drive Axle Ass'y. Includes 40 To 43Drive Axle Ass'y. Includes 40 To 43
-
41504152949 Bearing HousingBearing Housing
-
42293350059 Ball BearingBall Bearing
-
43504153207 ShimShim
-
44504152817 Track Ass'y (500 x 3923 x 32). Includes 44 To 46Track Ass'y (500 x 3923 x 32). Includes 44 To 46
-
47619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
48619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
49615580812 Gasket RingGasket Ring
-
50619230047 Seal RingSeal Ring
-
51233261414 Elastic Flange Nut M6Elastic Flange Nut M6
