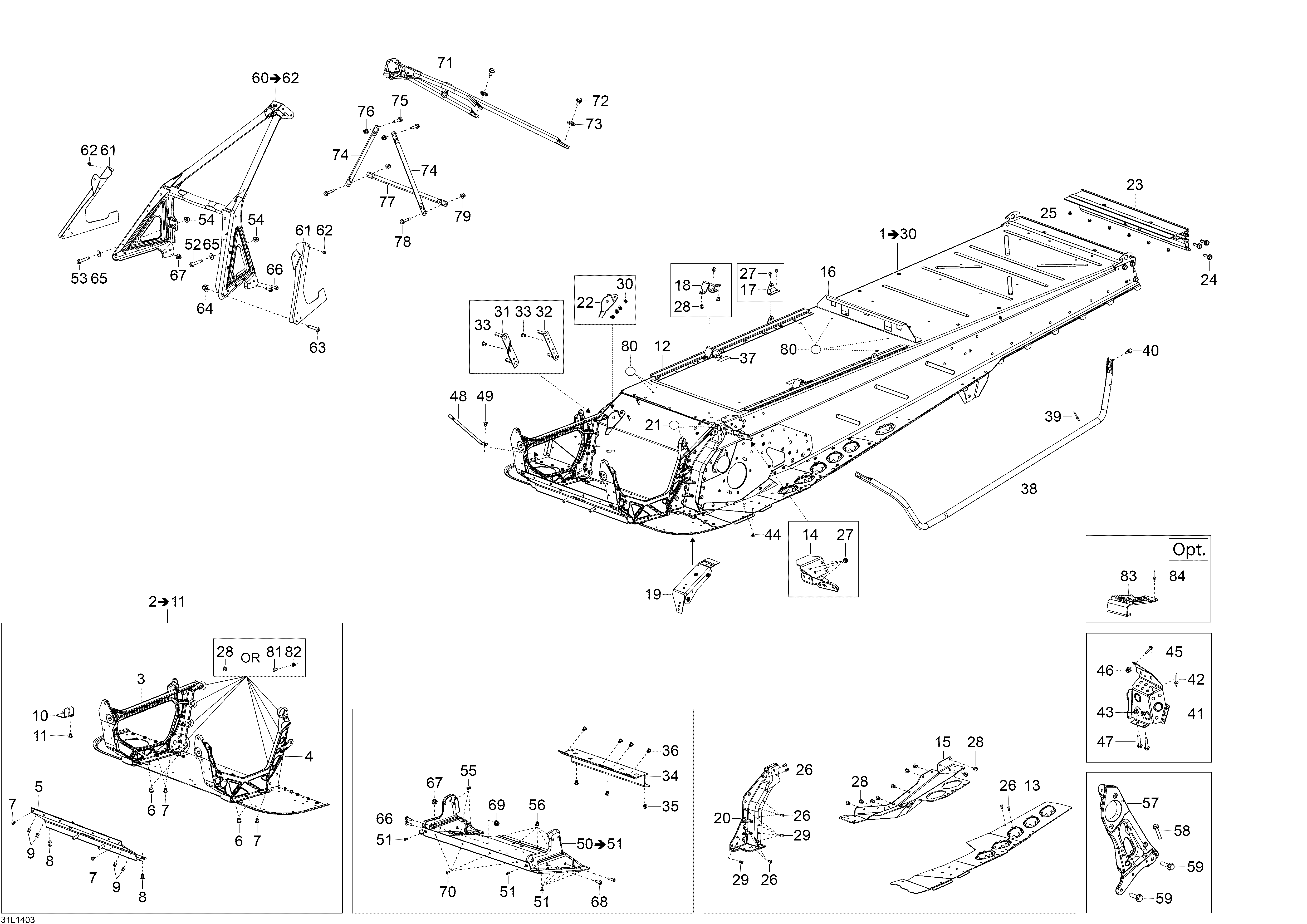

09- Frame для BRP Lynx 59 YETI 550 - 2014
-
№АртикулНазвание
-
1518327969 Frame. Includes 1 To 30Frame. Includes 1 To 30
-
2518326515 Module E. Includes 2 To 11Module E. Includes 2 To 11
-
3518326795 RH MemberRH Member
-
4518325558 LH MemberLH Member
-
5518325818 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10518327219 Muffler SupportMuffler Support
-
11293150163 RivetRivet
-
12518326107 Fastening RailFastening Rail
-
13518326895 Footrest LHFootrest LH
-
13518326896 Footrest RHFootrest RH
-
14605355235 Fastening BracketFastening Bracket
-
16518325986 Battery SupportBattery Support
-
17518327457 Seat Box BracketSeat Box Bracket
-
18518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
18518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
19518326430 Clinch Nut PlateClinch Nut Plate
-
20518325524 Frame Corner LHFrame Corner LH
-
20518328024 Frame Corner RHFrame Corner RH
-
21518325560 Adhesive PatchAdhesive Patch
-
22518326520 Support RHSupport RH
-
23518327194 Rear ProfileRear Profile
-
24207582586 Screw Hex. Flange M8 x 25Screw Hex. Flange M8 x 25
-
25293150174 RivetRivet
-
26390909100 RivetRivet
-
27390909200 RivetRivet
-
28293150119 RivetRivet
-
29293150183 RivetRivet
-
30293150096 RivetRivet
-
31518326123 Gearbox Counter Plate FrontGearbox Counter Plate Front
-
32518326124 Gearbox Counter Plate RearGearbox Counter Plate Rear
-
33390402200 Pop Rivet 3/16Pop Rivet 3/16
-
34518326719 Engine SupportEngine Support
-
35293150163 RivetRivet
-
36390909200 RivetRivet
-
37518326357 Rubber CoverRubber Cover
-
38518326963 Footboard Support Tube LHFootboard Support Tube LH
-
38518326964 Footboard Support Tube RHFootboard Support Tube RH
-
39390909100 RivetRivet
-
40207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
41518326671 Toe Hook LHToe Hook LH
-
41518326672 Toe Hook RHToe Hook RH
-
42390909200 RivetRivet
-
43605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
44414644300 DartDart
-
45207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
46233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
47250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
48514054846 Spring BracketSpring Bracket
-
49390909200 RivetRivet
-
50518326213 Module S Cross Member. Includes 50 To 51Module S Cross Member. Includes 50 To 51
-
51390909200 RivetRivet
-
52207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
53207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
54233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
55390909100 Avex RivetAvex Rivet
-
56390909200 Avex RivetAvex Rivet
-
57518326714 Pulley SupportPulley Support
-
58207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
59207583086 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
60518327004 Front Member Ass'y. Includes 60 To 62Front Member Ass'y. Includes 60 To 62
-
61502007077 Bumper Fastener LHBumper Fastener LH
-
61502007078 Bumper Fastener RHBumper Fastener RH
-
62390909200 RivetRivet
-
63207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
64233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
65224061201 Flat WasherFlat Washer
-
66207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
67233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
68207662044 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
69233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
70390909200 RivetRivet
-
71518326103 Upper Support TubeUpper Support Tube
-
72207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
74518325114 Upper ColumnUpper Column
-
75207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
76233261414 Nut Elastic Flange M6Nut Elastic Flange M6
-
77518325115 Upper ColumnUpper Column
-
78207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
79233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
80518325560 Adhesive PatchAdhesive Patch
-
81207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
82233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
83520000492 Footrest (Opt.)Footrest (Opt.)
-
84390909100 RivetRivet
