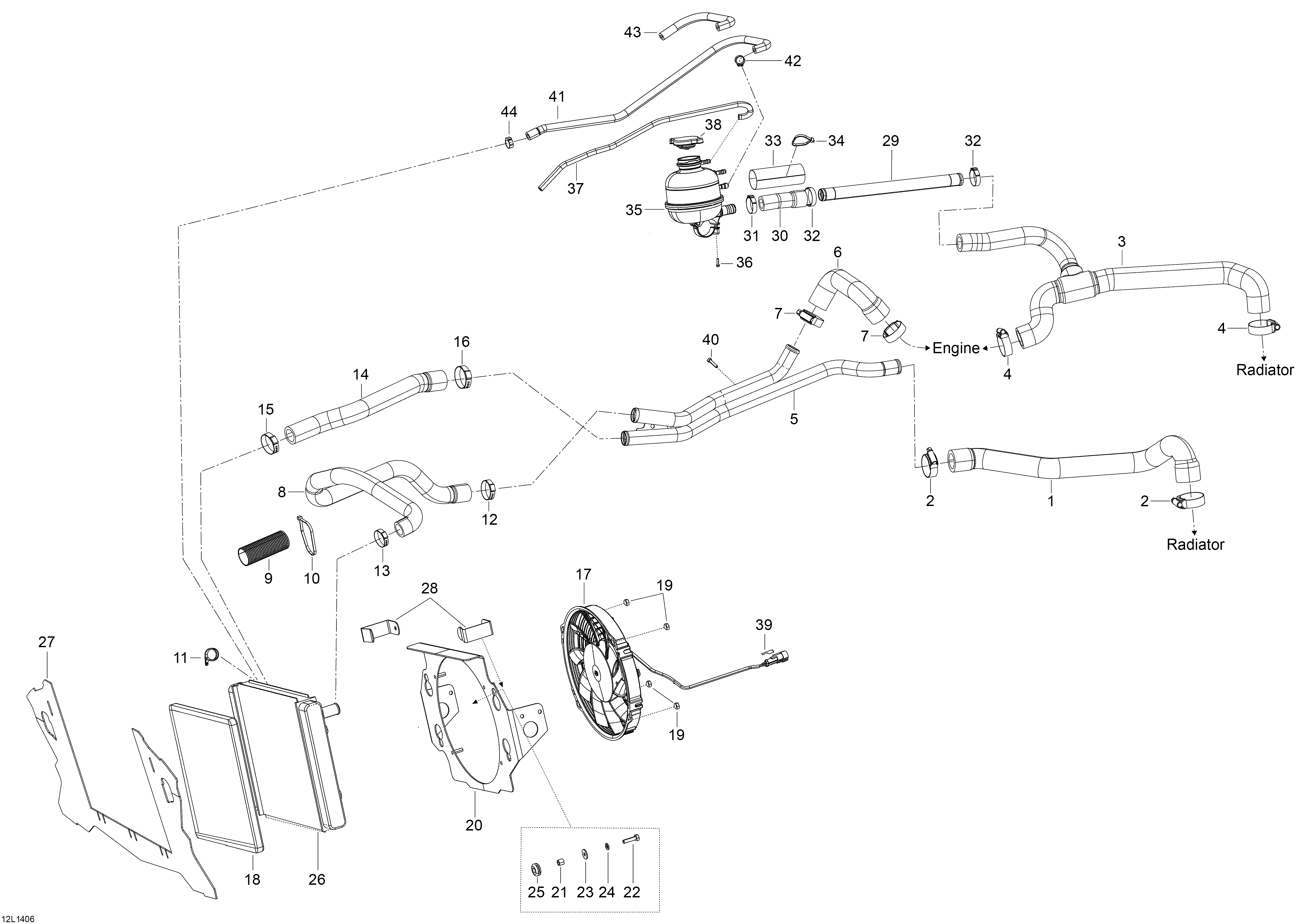

01- Cooling System для BRP Lynx 69 YETI 600 ACE - 2014
-
№АртикулНазвание
-
1509000634 Hose, Tunnel RadiatorHose, Tunnel Radiator
-
2509000443 Gear ClampGear Clamp
-
3509000805 Hose, Tunnel Rad. -> Engine FillingHose, Tunnel Rad. -> Engine Filling
-
4509000443 Gear ClampGear Clamp
-
5509000800 Water PipeWater Pipe
-
6509000564 Hose, Engine OutletHose, Engine Outlet
-
7509000443 Gear ClampGear Clamp
-
8509000706 Hose, Air Rad - EngineHose, Air Rad - Engine
-
928036 TubingTubing
-
10414115200 Tie Rap 180mmTie Rap 180mm
-
11605627008 Clamp With RubberClamp With Rubber
-
12509000443 Gear ClampGear Clamp
-
13293650099 Crimp ClampCrimp Clamp
-
14509000707 Hose, Air Rad. -> Tunnel Rad.Hose, Air Rad. -> Tunnel Rad.
-
15293650099 Crimp ClampCrimp Clamp
-
16509000443 Gear ClampGear Clamp
-
17509000838 Cooling FanCooling Fan
-
18509000718 D-SealD-Seal
-
19233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
20509000791 Radiator SupportRadiator Support
-
21605453745 BushingBushing
-
22207162044 Hex.Cap Screw M6 x 20Hex.Cap Screw M6 x 20
-
23234062410 Flat Washer M6Flat Washer M6
-
2420052 Spring WasherSpring Washer
-
25293720053 GrommetGrommet
-
26509000787 RadiatorRadiator
-
27509000784 Air Deflector LTSAir Deflector LTS
-
28509000703 Deflector ClipDeflector Clip
-
29509000644 PipePipe
-
30509000698 HoseHose
-
31509000442 Crimp ClampCrimp Clamp
-
32293650099 Crimp ClampCrimp Clamp
-
33707001349 Protector TubeProtector Tube
-
34414115200 Tie Rap 180mmTie Rap 180mm
-
35509000368 Coolant TankCoolant Tank
-
36241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
37276000048 HoseHose
-
38509000180 Pressure CapPressure Cap
-
39710000992 ClipClip
-
40207561634 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
41509000750 Breather HoseBreather Hose
-
42293650047 Crimp ClampCrimp Clamp
-
43409901800 Insulating Tubing 13mmInsulating Tubing 13mm
-
44293650047 Crimp ClampCrimp Clamp
