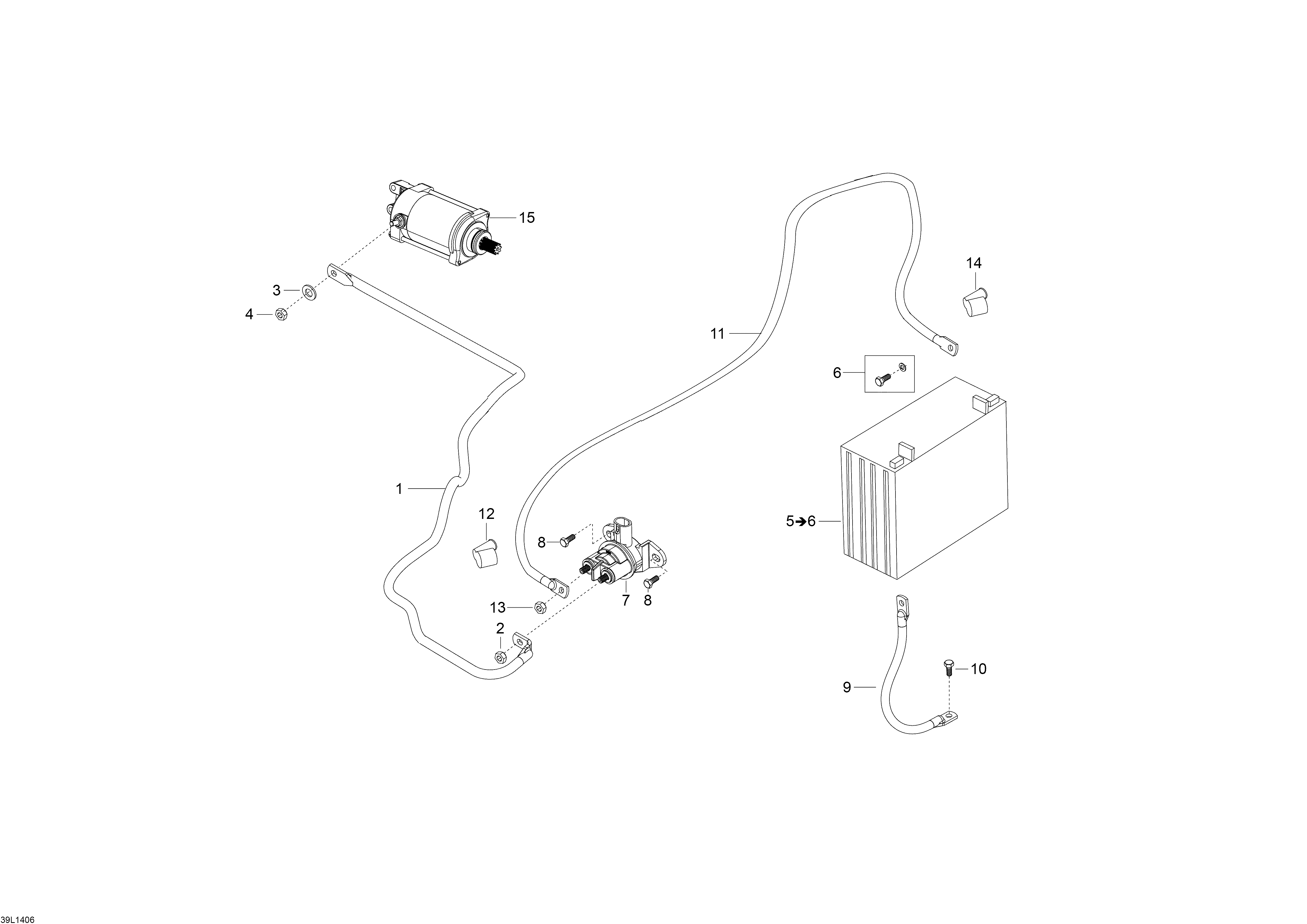

10- Battery And Starter для BRP Lynx 69 YETI 600 ACE - 2014
-
№АртикулНазвание
-
1515176945 Battery WireBattery Wire
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer M6Flat Washer M6
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5515176151 Battery 30Ah. Includes 5 To 6Battery 30Ah. Includes 5 To 6
-
6250000282 Battery Fastener KitBattery Fastener Kit
-
7278003012 Starter SolenoidStarter Solenoid
-
8207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
9515176777 Ground WireGround Wire
-
10207661644 Hex.Flange Screw M6 x 16Hex.Flange Screw M6 x 16
-
11515176778 Battery WireBattery Wire
-
12570151000 Protection CapProtection Cap
-
13232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
14710000495 Protector CapProtector Cap
-
15420892428 Electric Starter Ass'yElectric Starter Ass'y
