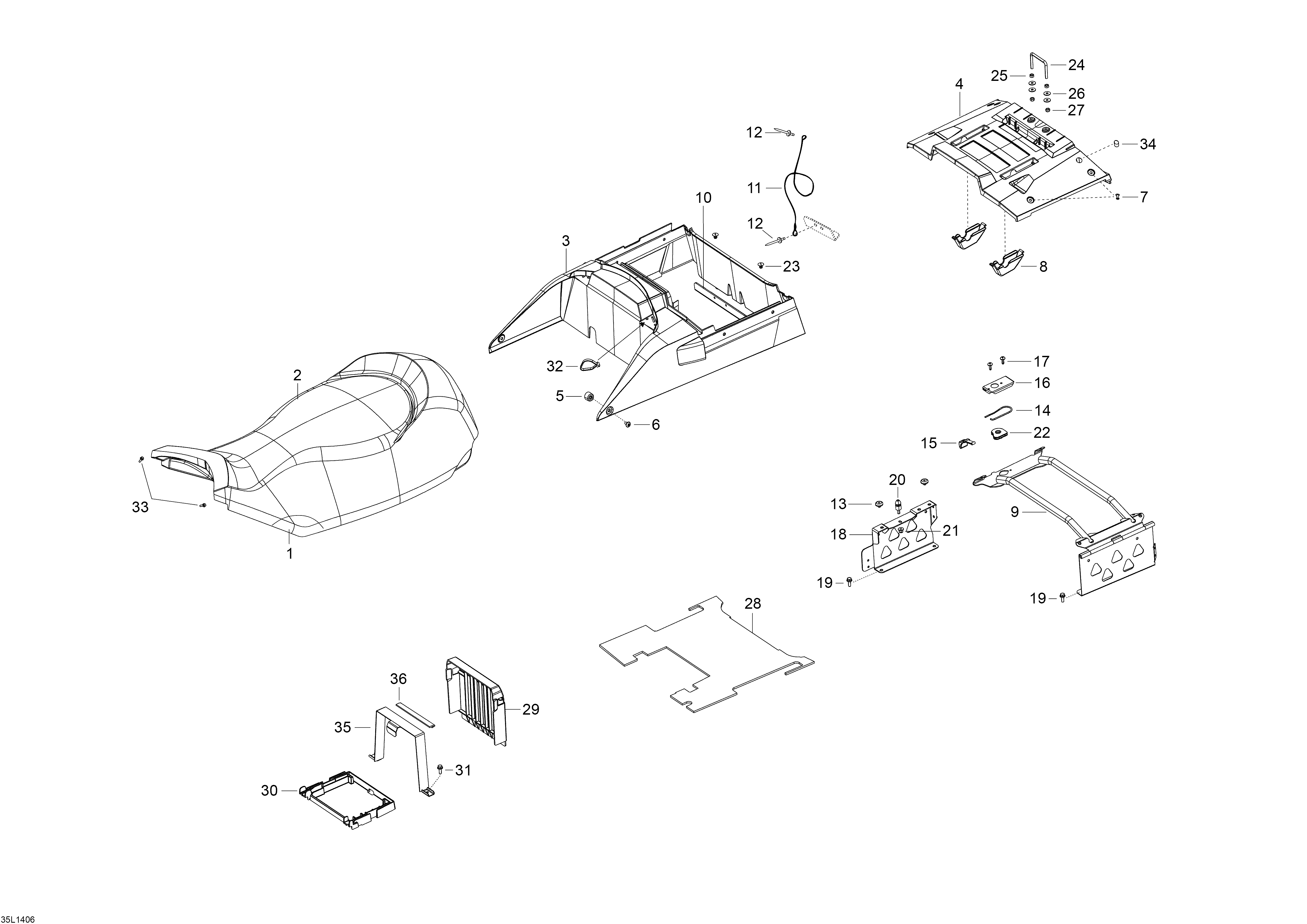

09- Seat для BRP Lynx 69 YETI 600 ACE - 2014
-
№АртикулНазвание
-
1510005807 Front Seat FoamFront Seat Foam
-
2510005722 Front Seat CoverFront Seat Cover
-
3510004874 Storage BoxStorage Box
-
4510005604 Storage Box CoverStorage Box Cover
-
5510005147 BushingBushing
-
6250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
7293150104 Pop Rivet 3/16Pop Rivet 3/16
-
8510004999 CoverCover
-
9510005714 Fastening TubeFastening Tube
-
10510005156 Cable Support PlateCable Support Plate
-
11546777 Seat Retainer CableSeat Retainer Cable
-
12390402200 Pop Rivet 3/16Pop Rivet 3/16
-
13605452114 Rubber PlugRubber Plug
-
14269700017 Latch SpringLatch Spring
-
15510005072 PullerPuller
-
16510005698 Lock Pin CoverLock Pin Cover
-
17250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
18510004998 Locking PlateLocking Plate
-
19207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
20605452035 Lock PinLock Pin
-
21233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
22510005044 Lock Pin GuideLock Pin Guide
-
23293150104 Pop Rivet 3/16Pop Rivet 3/16
-
24510004876 Fastener PinFastener Pin
-
25250000135 Nut M6Nut M6
-
2620117 WasherWasher
-
27232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
28510005043 FoamFoam
-
29510005079 Battery CoverBattery Cover
-
30515176804 Battery SupportBattery Support
-
31207561644 Screw Hex. Flange M6 x 16Screw Hex. Flange M6 x 16
-
32605627000 Tie RapTie Rap
-
33250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
34572051500 CapCap
-
35510005250 Battery StrapBattery Strap
-
36605356094 Retainer StrapRetainer Strap
