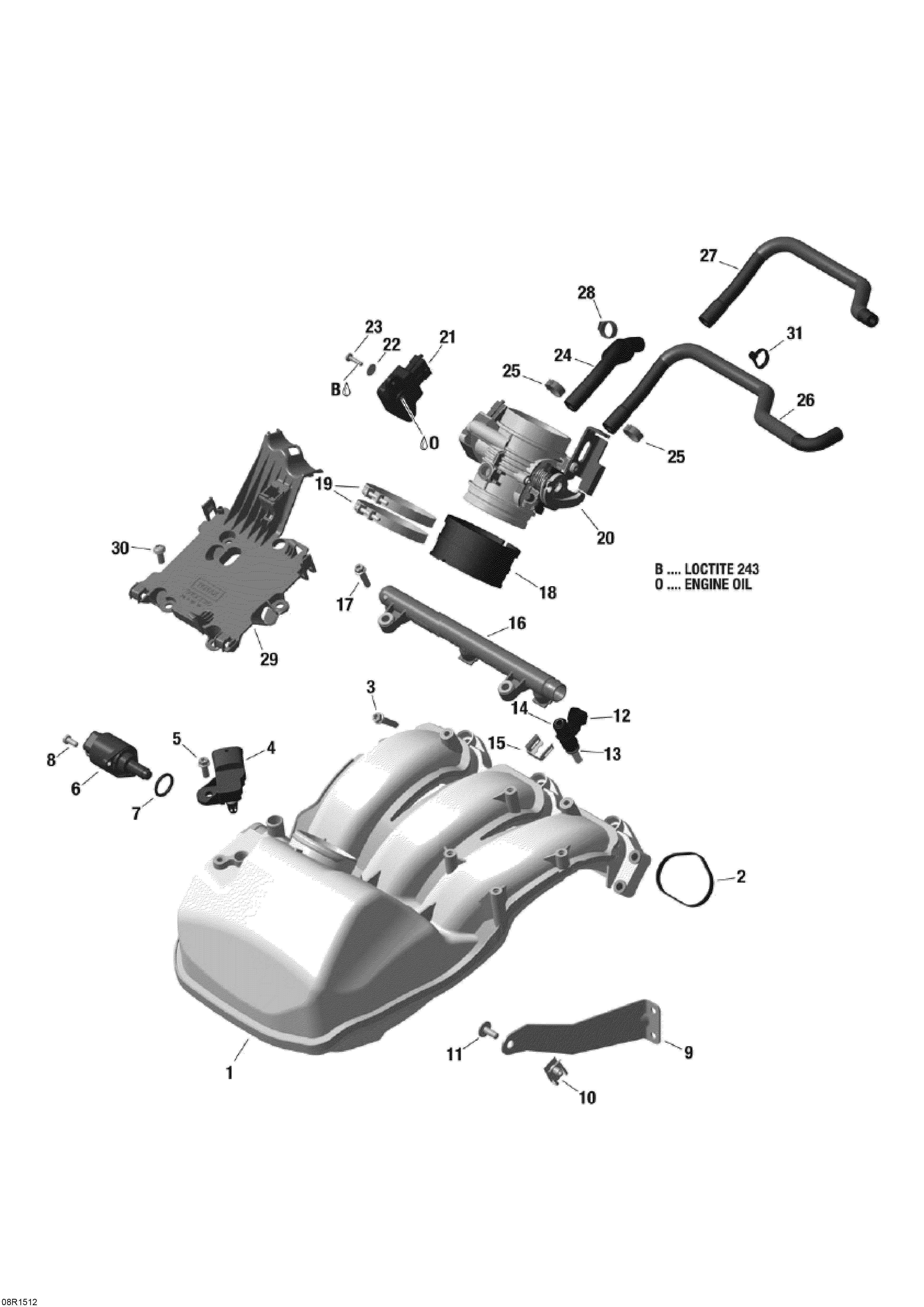

02- Air Intake Manifold And Throttle Body для BRP Lynx Adventure GT 1200 4-TEC - 2015
-
№АртикулНазвание
-
1420667440 Air Intake Manifold. Includes 1 To 2Air Intake Manifold. Includes 1 To 2
-
2420950745 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420440647 Flanged Torx Screw M6 x 30. Tightening Torque 11 NmFlanged Torx Screw M6 x 30. Tightening Torque 11 Nm
-
4707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420440162 Flanged Torx Screw M6 x 16. Tightening Torque 5,5 NmFlanged Torx Screw M6 x 16. Tightening Torque 5,5 Nm
-
6420665940 Idle Bypass ValveIdle Bypass Valve
-
7420631780 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
8420640081 Torx Screw M5 x 12. Tightening Torque 2,5 NmTorx Screw M5 x 12. Tightening Torque 2,5 Nm
-
9420951011 SupportSupport
-
10420942108 Clip nutClip nut
-
11420241524 Torx Screw M6 x 16. Tightening Torque 11 NmTorx Screw M6 x 16. Tightening Torque 11 Nm
-
12420874830 Injection Valve. Includes 12 To 14Injection Valve. Includes 12 To 14
-
13420431890 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
14420631220 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
15420853030 ClipClip
-
16420874810 Fuel RailFuel Rail
-
17420440234 Flanged Torx Screw M6 x 25. Tightening Torque 11 NmFlanged Torx Screw M6 x 25. Tightening Torque 11 Nm
-
18420460490 Intake AdaptorIntake Adaptor
-
19420251209 ClampClamp
-
20420891905 Throttle Body Socket Ass'y. Includes 20 To 23Throttle Body Socket Ass'y. Includes 20 To 23
-
21270000251 Throttle Position SensorThrottle Position Sensor
-
22234042600 Flat WasherFlat Washer
-
23208641660 Phillips Screw M4 x 16Phillips Screw M4 x 16
-
24420460482 Molded HoseMolded Hose
-
25293650125 ClampClamp
-
27420822662 Molded HoseMolded Hose
-
28420851458 ClampClamp
-
29420910331 Base PlateBase Plate
-
30420641588 Flanged Torx Screw M6 x 16. Tightening Torque 6 NmFlanged Torx Screw M6 x 16. Tightening Torque 6 Nm
-
31414115200 Tie rapTie rap
