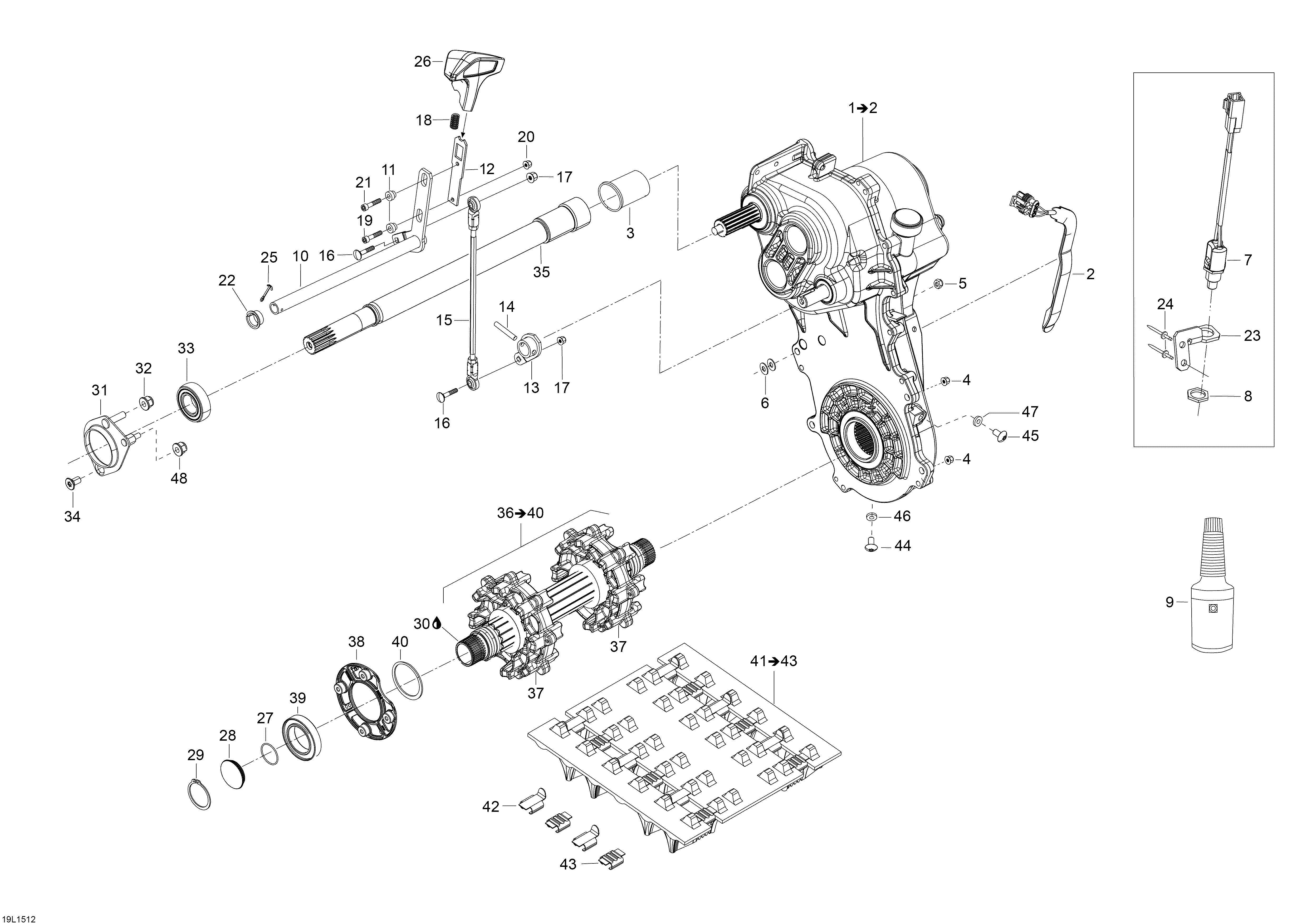

05- Drive System для BRP Lynx Adventure GT 1200 4-TEC - 2015
-
№АртикулНазвание
-
1619230059 Transmission Ass'y (High Ratio). Includes 1 To 2Transmission Ass'y (High Ratio). Includes 1 To 2
-
2504152896 SensorSensor
-
3504153054 Protective RubberProtective Rubber
-
4233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6503192494 WasherWasher
-
7515176472 SwitchSwitch
-
8250000373 NutNut
-
9619590182 Gearbox OilGearbox Oil
-
10504153288 ShifterShifter
-
11504152787 SleeveSleeve
-
12504153287 Shifter ArmShifter Arm
-
13504153280 Lever WeldLever Weld
-
1441012 Spring PinSpring Pin
-
15504153258 Shifter RodShifter Rod
-
16250000677 Carriage Bolt M6 x 20Carriage Bolt M6 x 20
-
17232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
18504152882 SpringSpring
-
19205052544 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
20233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
21250000676 Forming Screw Torx M5 x 16Forming Screw Torx M5 x 16
-
22504152890 BushingBushing
-
23504152902 Sensor BracketSensor Bracket
-
24293150163 RivetRivet
-
25250400035 Cotter PinCotter Pin
-
26504152837 Shifter HandleShifter Handle
-
27293300122 O-RingO-Ring
-
28504152619 Magnetic CapMagnetic Cap
-
29504152572 CirclipCirclip
-
30619590193 Synthetic GreaseSynthetic Grease
-
31504153187 Bearing HousingBearing Housing
-
32233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
33293350074 Ball BearingBall Bearing
-
34235381646 Torx Screw M8 x 16Torx Screw M8 x 16
-
35504153292 Counter ShaftCounter Shaft
-
36504153210 Drive Axle Ass'y. Includes 36 To 40Drive Axle Ass'y. Includes 36 To 40
-
38504152949 Bearing HousingBearing Housing
-
39293350059 Ball BearingBall Bearing
-
40504153207 ShimShim
-
41504152817 Track Ass'y. Includes 41 To 43Track Ass'y. Includes 41 To 43
-
41504153036 Track Ass'y Studded. ECS2 modelTrack Ass'y Studded. ECS2 model
-
44619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
45619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
46615580812 Gasket RingGasket Ring
-
47619230047 Seal RingSeal Ring
-
48233261414 Elastic Flange Nut M6Elastic Flange Nut M6
