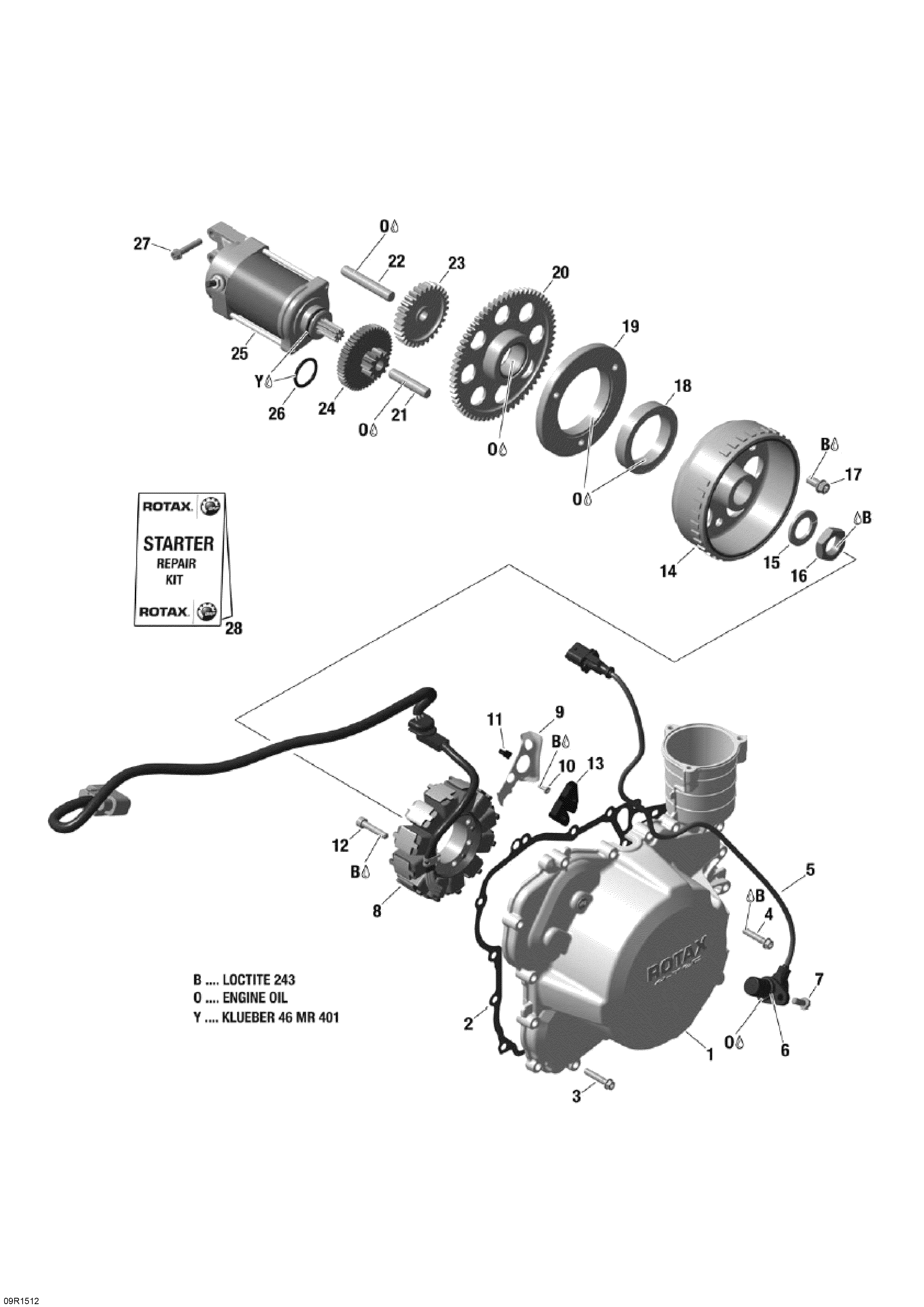

03_Magneto and Electric Starter для BRP Lynx Adventure GT 1200 4-TEC - 2015
-
№АртикулНазвание
-
1420611833 Ignition CoverIgnition Cover
-
2420430750 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
5420966570 Crankshaft Position SensorCrankshaft Position Sensor
-
6420431580 O-ringO-ring
-
7420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
8420892376 Stator AssyStator Assy
-
9420951192 Cable HolderCable Holder
-
10420640085 Torx Screw 3.5 X 8Torx Screw 3.5 X 8
-
11420866717 Cable TieCable Tie
-
12205063044 Allen Screw M6 X 30Allen Screw M6 X 30
-
13420860052 Rubber SpacerRubber Spacer
-
14420892361 Magneto FlywheelMagneto Flywheel
-
15420945759 Lock WasherLock Washer
-
16420842239 Hex. Nut M22Hex. Nut M22
-
17420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
18420659113 Sprag ClutchSprag Clutch
-
19420659266 Housing Sprag ClutchHousing Sprag Clutch
-
20420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
21420229301 Location PinLocation Pin
-
22420229475 Cylindrical Pin M10 X 65Cylindrical Pin M10 X 65
-
23420634605 Gear, 30 TeethGear, 30 Teeth
-
24420634741 Double GearDouble Gear
-
25420893530 Starter Ass'yStarter Ass'y
-
26420250140 O-Ring. Includes 23 to 24O-Ring. Includes 23 to 24
-
27420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
28420881140 Repair KitRepair Kit
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
O293600112 Engine OilEngine Oil
-
Y420297616 Klueber Paste, 46 MR 401, 60 gKlueber Paste, 46 MR 401, 60 g
