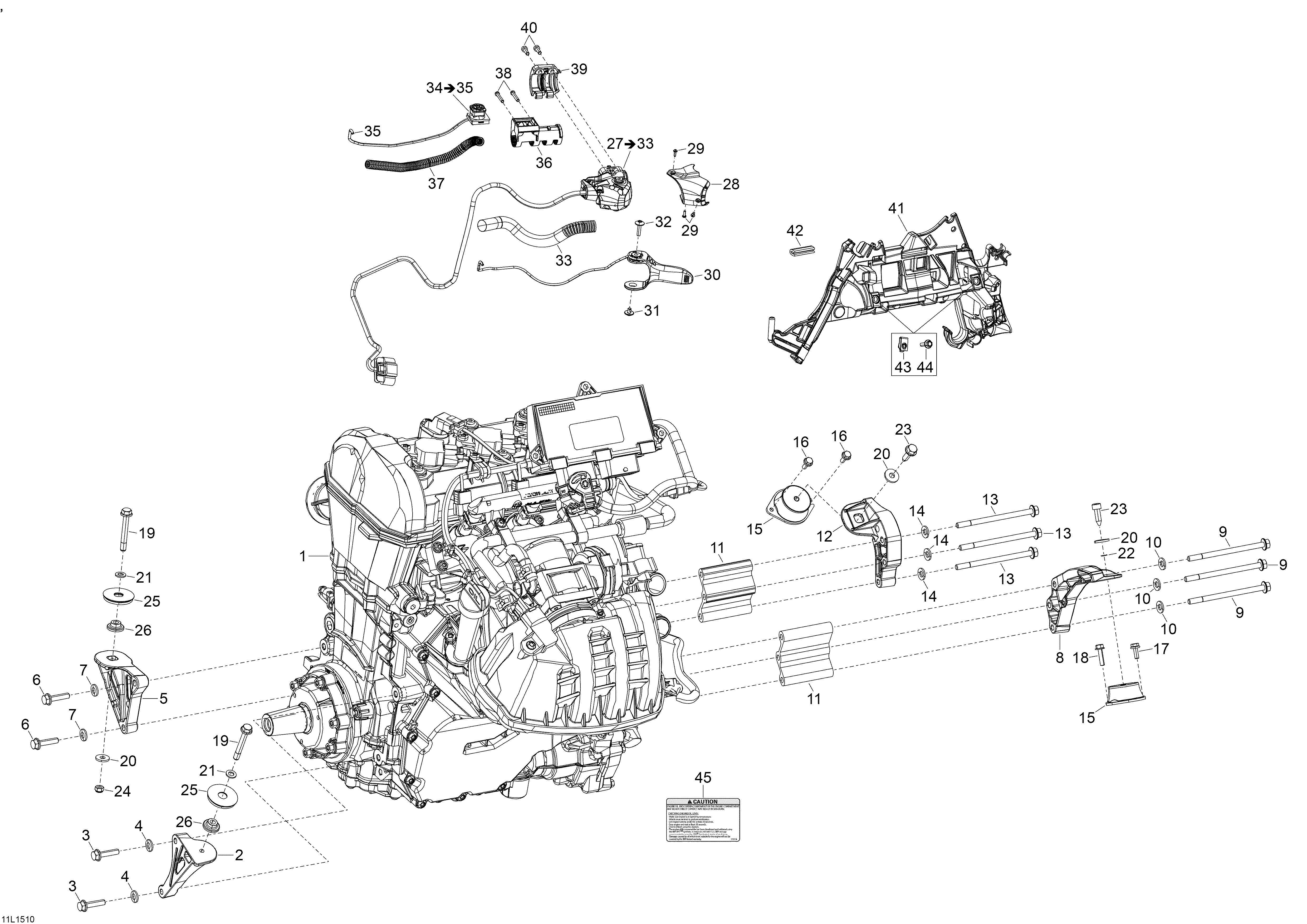

01- Engine And Engine Support для BRP Lynx Adventure LX 600 ACE - 2015
-
№АртикулНазвание
-
2512060660 Rear Support, PTORear Support, PTO
-
3207583586 Hex. Flange Screw M8 x 35, Scotch GripHex. Flange Screw M8 x 35, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5512060661 Front Support, PTOFront Support, PTO
-
6207583586 Hex. Flange Screw M8 x 35, Scotch GripHex. Flange Screw M8 x 35, Scotch Grip
-
7234281474 Conical Spring Washer M8Conical Spring Washer M8
-
8512060894 Rear Support, MAGRear Support, MAG
-
9230582544 Hex. Flange Screw M8 x 125, Scotch GripHex. Flange Screw M8 x 125, Scotch Grip
-
10250200157 Conical Spring Washer M8Conical Spring Washer M8
-
11512060505 ShimShim
-
12512060663 Front Support, MAGFront Support, MAG
-
13230582544 Hex. Flange Screw M8 x 125, Scotch GripHex. Flange Screw M8 x 125, Scotch Grip
-
14250200157 Conical Spring Washer M8Conical Spring Washer M8
-
15512060729 Rubber MountRubber Mount
-
16207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
17207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
18207562534 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
19207586044 Hex. Flange Screw M8 x 60, Scotch GripHex. Flange Screw M8 x 60, Scotch Grip
-
20503183200 WasherWasher
-
21250200008 Flat Washer M8Flat Washer M8
-
22293300123 O RingO Ring
-
23250000257 Cone Screw M8 x 30Cone Screw M8 x 30
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
25512060647 StopperStopper
-
26512060285 SpacerSpacer
-
27512061017 Housing Ass'y. Includes 27 To 33Housing Ass'y. Includes 27 To 33
-
28512060862 CapCap
-
29250000623 Torx Screw 2.9 x 9.5Torx Screw 2.9 x 9.5
-
32250000528 Torx Screw M5 x 20Torx Screw M5 x 20
-
33515177716 Protector TubeProtector Tube
-
34515177362 Kill Switch. Includes 34 To 35Kill Switch. Includes 34 To 35
-
35515175232 Male TerminalMale Terminal
-
36512060844 SupportSupport
-
37515177946 Protector TubeProtector Tube
-
38250000263 Torx Screw #8-18Torx Screw #8-18
-
39512060987 Front HousingFront Housing
-
40250000632 Torx Screw M5 x 14Torx Screw M5 x 14
-
41512060994 ECU SupportECU Support
-
42271001530 Protect TrimProtect Trim
-
43250000079 Panel Nut M5Panel Nut M5
-
44207552044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
45516005521 Check Oil DecalCheck Oil Decal
