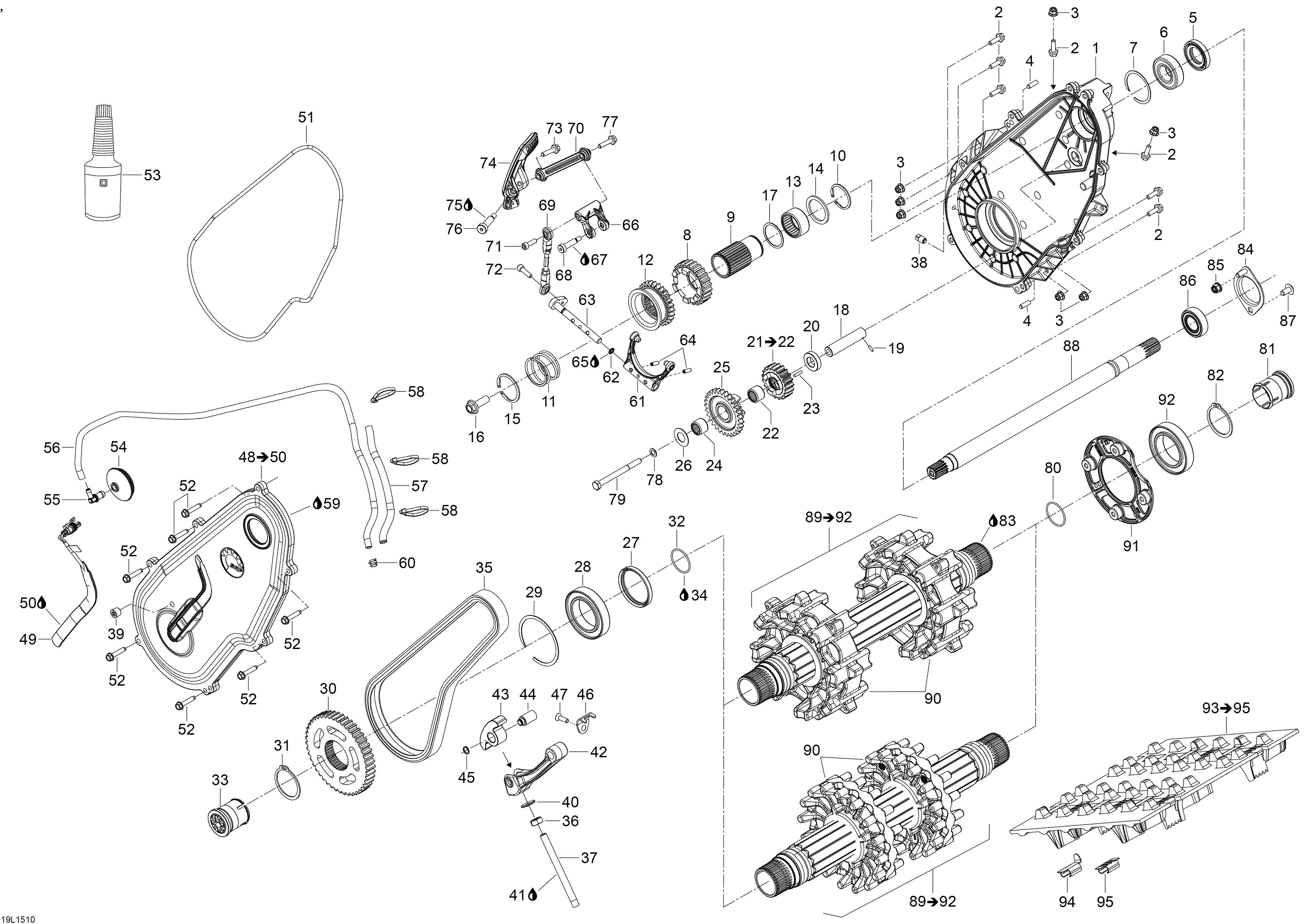

05- Drive System для BRP Lynx Adventure LX 600 ACE - 2015
-
№АртикулНазвание
-
1504153334 ChaincaseChaincase
-
2207662034 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4250400048 Dowel PinDowel Pin
-
5293250175 Oil SealOil Seal
-
6293350055 Ball BearingBall Bearing
-
7504152576 CirclipCirclip
-
8504152927 Sprocket, 21 TeethSprocket, 21 Teeth
-
9504152979 CouplingCoupling
-
10293370054 CirclipCirclip
-
11504153179 Release SpringRelease Spring
-
12504152960 Sliding Gear, 27 TeethSliding Gear, 27 Teeth
-
13293350063 Needle BearingNeedle Bearing
-
14504152689 WasherWasher
-
15293370055 CirclipCirclip
-
16207503046 Hex. Flange Screw M10 x 30Hex. Flange Screw M10 x 30
-
17504152862 WasherWasher
-
18504083100 Reverse ShaftReverse Shaft
-
19250400010 Rolled Pin M3 x 10Rolled Pin M3 x 10
-
20504078700 RingRing
-
21581096900 Sprocket Ass'y, 19 Teeth. Includes 21 To 22Sprocket Ass'y, 19 Teeth. Includes 21 To 22
-
22293350064 Needle BearingNeedle Bearing
-
23570048600 Alignement RodAlignement Rod
-
24293350064 Needle BearingNeedle Bearing
-
25504152724 Sprocket, 29 TeethSprocket, 29 Teeth
-
26504077300 SpacerSpacer
-
27504152571 SealSeal
-
28293350059 Ball BearingBall Bearing
-
29504152582 CirclipCirclip
-
30504152971 Sprocket, 51 TeethSprocket, 51 Teeth
-
31504152572 CirclipCirclip
-
32293300122 O RingO Ring
-
33504152619 Magnetic CapMagnetic Cap
-
34619590193 Synthetic GreaseSynthetic Grease
-
35504152630 Drive Chain, 106 LinksDrive Chain, 106 Links
-
36232006414 Hex. Nut M10Hex. Nut M10
-
37504152602 Adjustment ScrewAdjustment Screw
-
38504152854 Magnetic PlugMagnetic Plug
-
39250500012 Allen Drive PlugAllen Drive Plug
-
40293200128 Bonded WasherBonded Washer
-
41619590098 Chaincase OilChaincase Oil
-
42504152748 Chain TensionerChain Tensioner
-
43504152739 Slider ChainSlider Chain
-
44504152841 Tensioner AxleTensioner Axle
-
45504152282 CirclipCirclip
-
46504153122 Chain SliderChain Slider
-
47205862044 Socket Head Screw M6 x 20, Scotch GripSocket Head Screw M6 x 20, Scotch Grip
-
48504153337 Chaincase Cover Ass'y. Includes 48 To 50Chaincase Cover Ass'y. Includes 48 To 50
-
49504152896 SensorSensor
-
50293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
51293300130 O RingO Ring
-
52210263080 Forming Screw M6 x 30Forming Screw M6 x 30
-
53619590098 Chaincase OilChaincase Oil
-
54504152930 CapCap
-
55293710035 Straight FittingStraight Fitting
-
56415080200 HoseHose
-
57504153074 Protector TubeProtector Tube
-
58414115200 Tie Rap 188mmTie Rap 188mm
-
59619590098 Chaincase OilChaincase Oil
-
60414554800 Spring ClampSpring Clamp
-
61504152954 Fork Ass'yFork Ass'y
-
62414484400 O RingO Ring
-
63504152956 Welded Axel ForkWelded Axel Fork
-
64250400045 Spring Pin M5 x 16Spring Pin M5 x 16
-
65619590193 Synthetic GreaseSynthetic Grease
-
66504152788 LeverLever
-
67619590193 Synthetic GreaseSynthetic Grease
-
68250000340 Socket HD Screw M8 x 25Socket HD Screw M8 x 25
-
69504152951 Ball JointBall Joint
-
70504152710 Double Ball JointDouble Ball Joint
-
71205562044 Socket HD Screw M6 x 20, Scotch GripSocket HD Screw M6 x 20, Scotch Grip
-
72205562044 Socket HD Screw M6 x 20, Scotch GripSocket HD Screw M6 x 20, Scotch Grip
-
73207562544 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
74504153174 GripGrip
-
75619590193 Synthetic GreaseSynthetic Grease
-
76250000340 Socket HD Screw M8 x 25Socket HD Screw M8 x 25
-
77207562544 Hex. Flanged Screw M6 x 25, Scotch GripHex. Flanged Screw M6 x 25, Scotch Grip
-
78504082900 WasherWasher
-
79207089044 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
80293300122 O RingO Ring
-
81504152619 Magnetic CapMagnetic Cap
-
82504152572 CirclipCirclip
-
83619590193 Synthetic GreaseSynthetic Grease
-
84504153187 Bearing HousingBearing Housing
-
85233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
86293350074 Ball BearingBall Bearing
-
87235381646 Torx HD Screw M8 x 16Torx HD Screw M8 x 16
-
88504153000 CountershaftCountershaft
-
89504153297 Drive Axle Ass'y (Silent Drive). Includes 89 To 92Drive Axle Ass'y (Silent Drive). Includes 89 To 92
-
89504153252 Drive Axle Ass'y. Includes 89 To 92Drive Axle Ass'y. Includes 89 To 92
-
91504152949 Housing BearingHousing Bearing
-
92293350059 Ball BearingBall Bearing
-
93504153157 Track Ass'y (380 x 3487 x 25 Silent Drive). Includes 93 To 95Track Ass'y (380 x 3487 x 25 Silent Drive). Includes 93 To 95
-
93504152838 Track Ass'y (380 x 3487 x 34). Includes 93 To 95Track Ass'y (380 x 3487 x 34). Includes 93 To 95
-
94415129528 ClipClip
-
95504152651 CleatCleat
