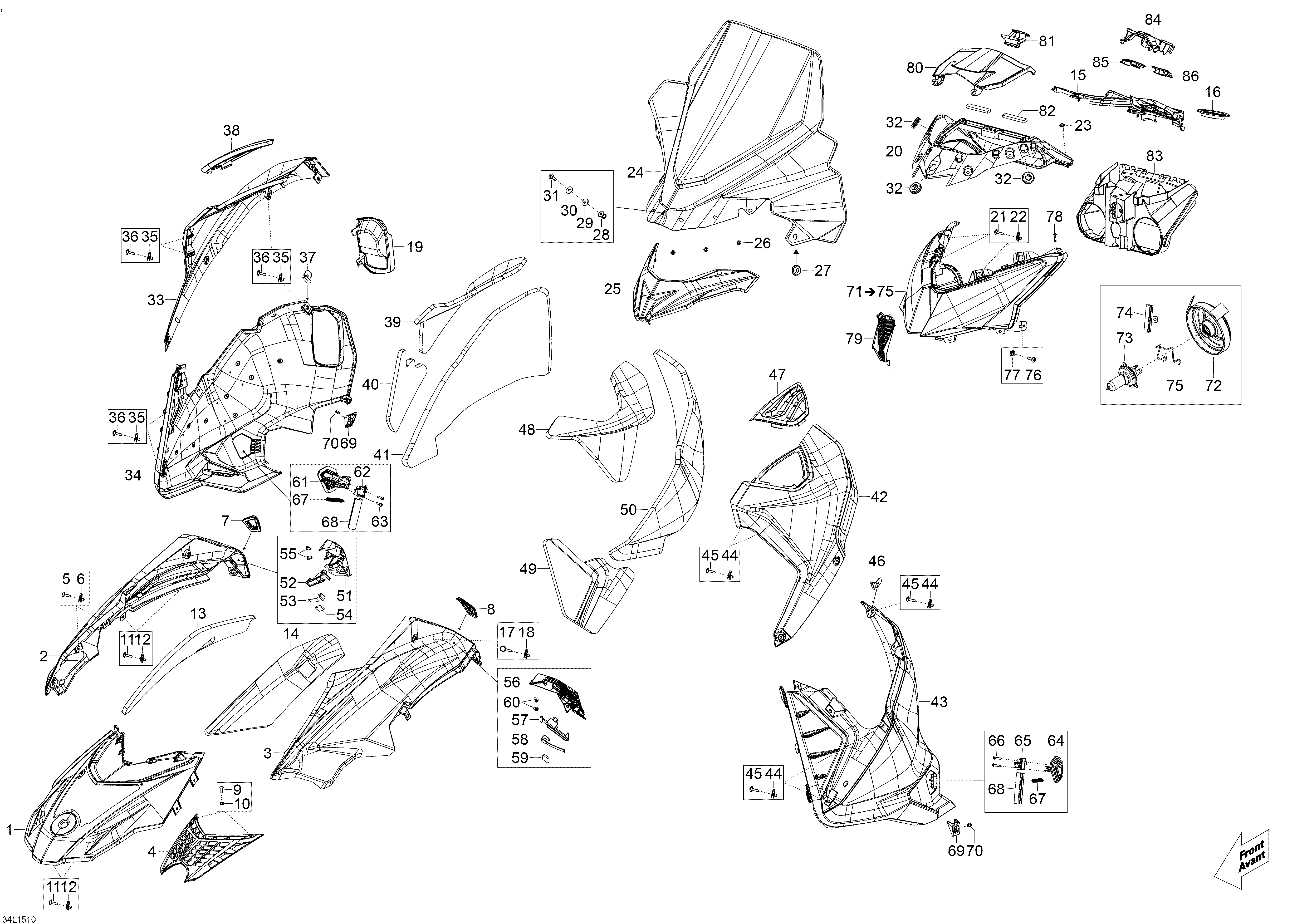

09- Hood And Windshield для BRP Lynx Adventure LX 600 ACE - 2015
-
№АртикулНазвание
-
1517305541 Red HoodRed Hood
-
2517305247 Red RH HoodRed RH Hood
-
3517305248 Red LH HoodRed LH Hood
-
4517305362 Hood GrillHood Grill
-
5250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
6250000079 Panel Nut M5Panel Nut M5
-
7517305344 RH Rubber ButtonRH Rubber Button
-
8517305345 LH Rubber ButtonLH Rubber Button
-
9235551494 Button HD Torx Screw M5 x 14Button HD Torx Screw M5 x 14
-
10233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
11250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
12250000079 Panel Nut M5Panel Nut M5
-
13517305481 FoamFoam
-
14517305482 FoamFoam
-
15517305205 Console RearConsole Rear
-
16517304518 Console NutConsole Nut
-
17517305531 KnobKnob
-
18250000079 Panel Nut M5Panel Nut M5
-
19517305061 Black RH ConsoleBlack RH Console
-
20517305992 Indicator SupportIndicator Support
-
21250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
22250000079 Panel Nut M5Panel Nut M5
-
23250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
24860201115 WindshieldWindshield
-
25517305307 SupportSupport
-
26732610072 Push NutPush Nut
-
27517302841 GrommetGrommet
-
28517303439 KnobKnob
-
29250200024 Rubber WasherRubber Washer
-
30250200025 WasherWasher
-
31250000146 Torx Screw K50 x 16Torx Screw K50 x 16
-
32517303756 GrommetGrommet
-
33517305250 Red RH PanelRed RH Panel
-
34517305249 Black RH PanelBlack RH Panel
-
35250000079 Panel Nut M5Panel Nut M5
-
36250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
37517305515 Guide PlateGuide Plate
-
38517305251 GrillGrill
-
39517305484 FoamFoam
-
40517305485 FoamFoam
-
41517305486 FoamFoam
-
42517305252 Red LH PanelRed LH Panel
-
43517305253 Black LH PanelBlack LH Panel
-
44250000079 Panel Nut M5Panel Nut M5
-
45250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
46517305515 Guide PlateGuide Plate
-
47517305254 GrillGrill
-
48517305488 FoamFoam
-
49517305489 FoamFoam
-
50517305490 FoamFoam
-
51517305315 RH Lock BodyRH Lock Body
-
52517305757 Lock ArmLock Arm
-
53517305317 Lock SpringLock Spring
-
54517306005 Lock Support PlateLock Support Plate
-
55205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
56517305319 LH Lock BodyLH Lock Body
-
57517305757 Lock ArmLock Arm
-
58517305317 Lock SpringLock Spring
-
59517306005 Lock Support PlateLock Support Plate
-
60205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
61517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
62517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
63250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
64517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
65517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
66250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
67517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
68517305452 Bottom Lock SleeveBottom Lock Sleeve
-
69517305323 Side Panel SupportSide Panel Support
-
70390909100 RivetRivet
-
71517305497 Headlamp. Includes 71 To 75Headlamp. Includes 71 To 75
-
72219400070 CapCap
-
73515176274 BulbBulb
-
74219800282 HolderHolder
-
75219800281 SpringSpring
-
76250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
77250100035 Jack Nut M5Jack Nut M5
-
78250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
79517305350 CapCap
-
80517304912 CoverCover
-
81517304917 LatchLatch
-
82517305157 SealSeal
-
83517305095 TrunkTrunk
-
84517304970 SupportSupport
-
85517305180 CapCap
-
86517305148 CapCap
