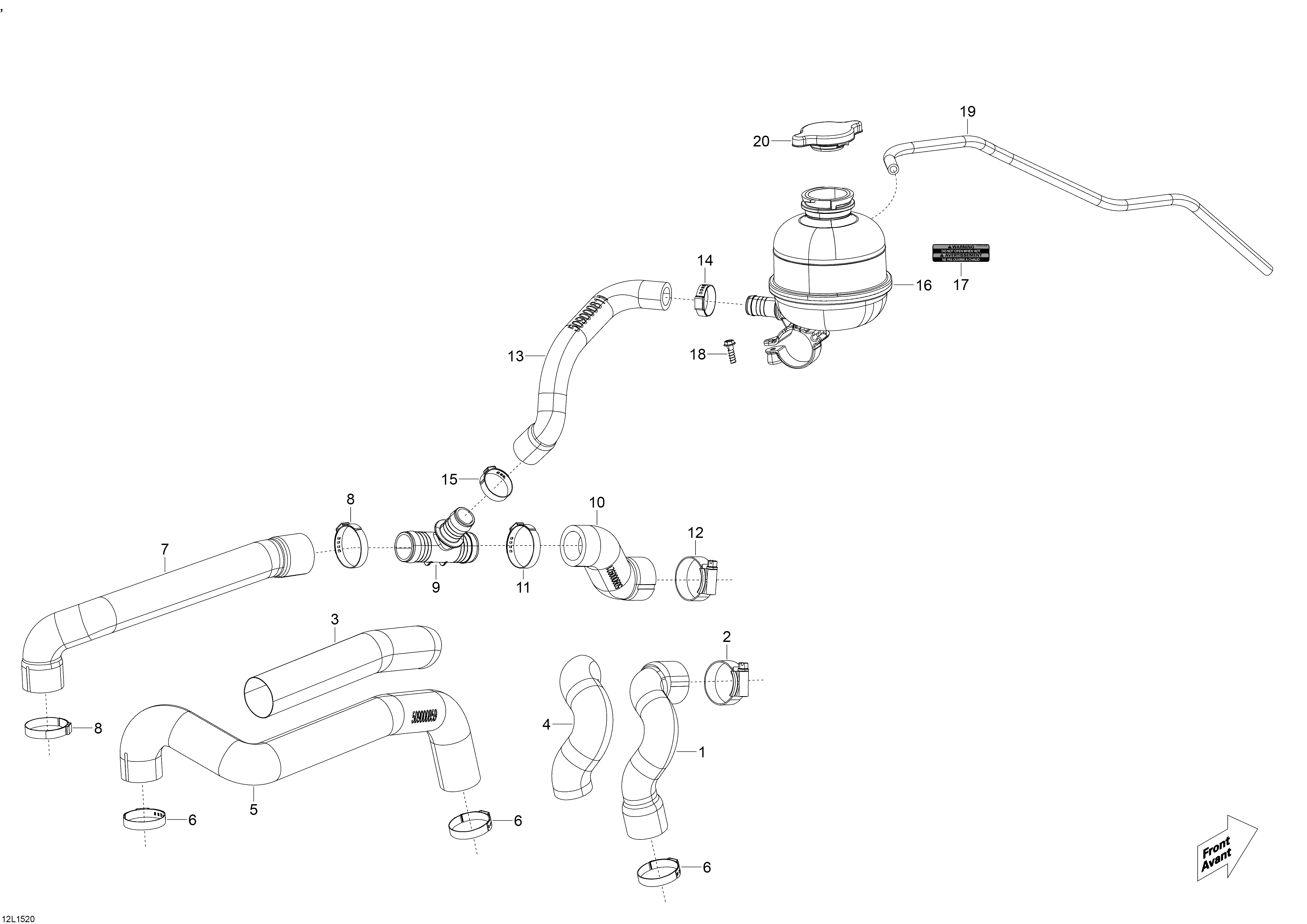

01- Cooling System для BRP Lynx Rave 600 ACE - 2015
-
№АртикулНазвание
-
1509000913 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Gear ClampGear Clamp
-
3509000513 Protector TubeProtector Tube
-
4509000513 Protector TubeProtector Tube
-
5509000859 HoseHose
-
6509000529 Crimp ClampCrimp Clamp
-
7509000697 Radiator HoseRadiator Hose
-
8509000529 Crimp ClampCrimp Clamp
-
9509000372 T-FittingT-Fitting
-
10509000921 Radiator HoseRadiator Hose
-
11509000529 Crimp ClampCrimp Clamp
-
12509000443 Gear ClampGear Clamp
-
13509000811 HoseHose
-
14509000442 Crimp ClampCrimp Clamp
-
15293650099 Crimp ClampCrimp Clamp
-
16509000881 Coolant TankCoolant Tank
-
17516005904 Warning DecalWarning Decal
-
18241151640 Hex. Flanged Screw K50 x 16Hex. Flanged Screw K50 x 16
-
19509000775 HoseHose
-
20509000180 Pressure CapPressure Cap
