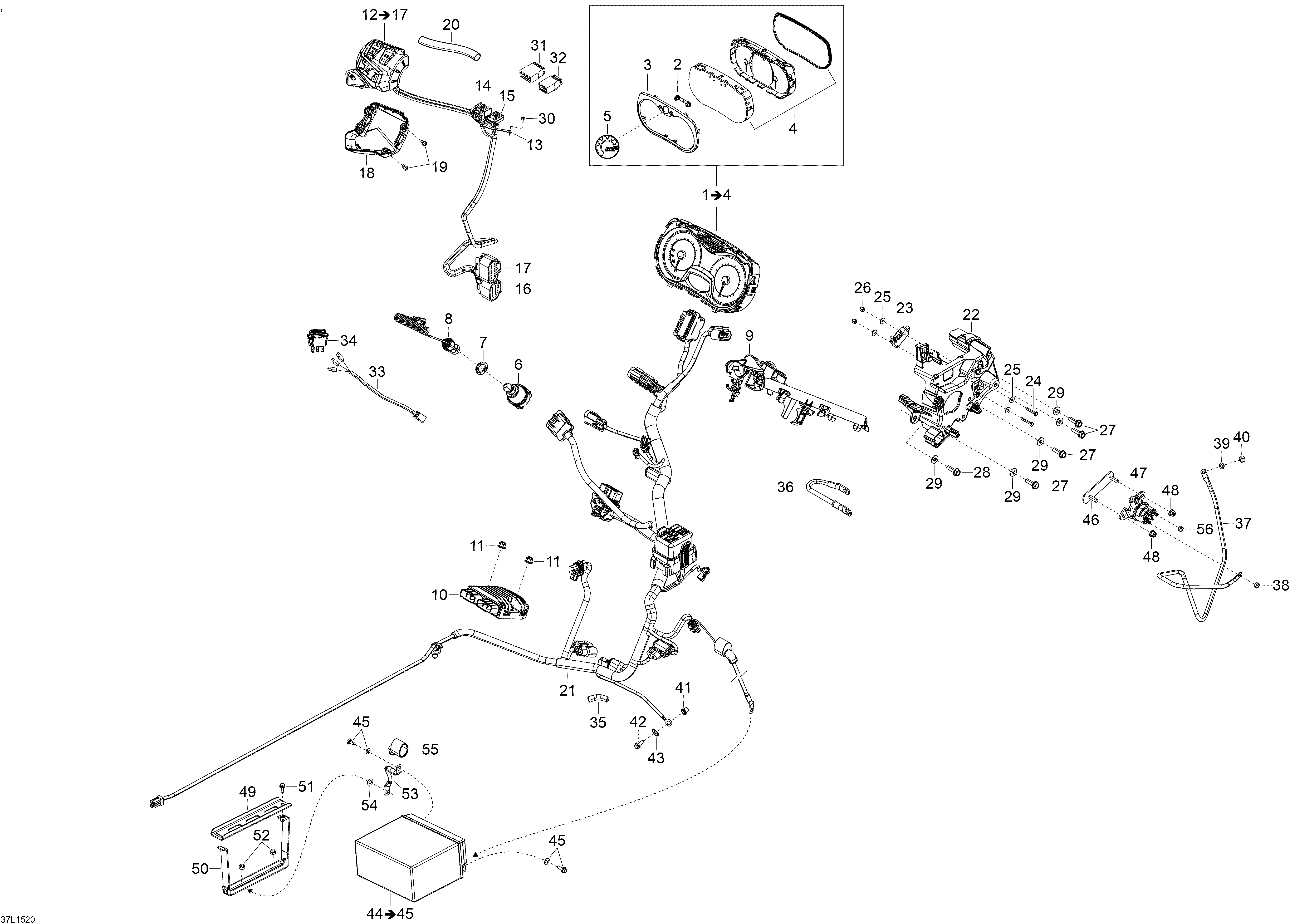

10- Electrical System для BRP Lynx Rave 600 ACE - 2015
-
№АртикулНазвание
-
1515177844 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 BRP LogoBRP Logo
-
6515177458 DESS SwitchDESS Switch
-
7278002963 Safety Switch NutSafety Switch Nut
-
8515177742 DESS CapDESS Cap
-
8515177807 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
9515177134 PlatePlate
-
10710001103 RegulatorRegulator
-
11233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
12515177676 LH Switch Housing. Includes 12 To 17LH Switch Housing. Includes 12 To 17
-
13515175504 Ring TerminalRing Terminal
-
14515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
14515175231 Female TerminalFemale Terminal
-
15515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
15515175231 Female TerminalFemale Terminal
-
16710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
17710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
18515177147 Housing PlateHousing Plate
-
19250000671 Torx Screw #8-18Torx Screw #8-18
-
20415129879 Protector TubeProtector Tube
-
21515177833 Main HarnessMain Harness
-
22515177347 PlatePlate
-
23515177460 Switch Ass'ySwitch Ass'y
-
24207132044 Hex. Cap Screw M3 x 20Hex. Cap Screw M3 x 20
-
25234032600 Flat WasherFlat Washer
-
26232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
27210262040 Forming Screw M6 x 20Forming Screw M6 x 20
-
28210262580 Forming Screw M6 x 25Forming Screw M6 x 25
-
29250200039 Flat WasherFlat Washer
-
30250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
31515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
32515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
33515177568 ECO HarnessECO Harness
-
34515177569 ECO Rocker SwitchECO Rocker Switch
-
36515177014 Ground WireGround Wire
-
37515177427 Battery WireBattery Wire
-
38232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
39234061410 Flat WasherFlat Washer
-
40232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
41293450275 InsertInsert
-
42207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
43250200041 Serrated Lock WasherSerrated Lock Washer
-
44296000295 Battery 18Ah. Includes 44 To 45Battery 18Ah. Includes 44 To 45
-
45250000282 Battery Fastener KitBattery Fastener Kit
-
46515177740 Relay SupportRelay Support
-
47278003012 Starter RelayStarter Relay
-
48233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
49518327281 Battery StrapBattery Strap
-
50518327282 Battery StrapBattery Strap
-
51207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
52233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
53515176780 Ground WireGround Wire
-
54234061410 Flat WasherFlat Washer
-
55570151000 Protection CapProtection Cap
-
56232561434 Elastic Stop Nut M6Elastic Stop Nut M6
