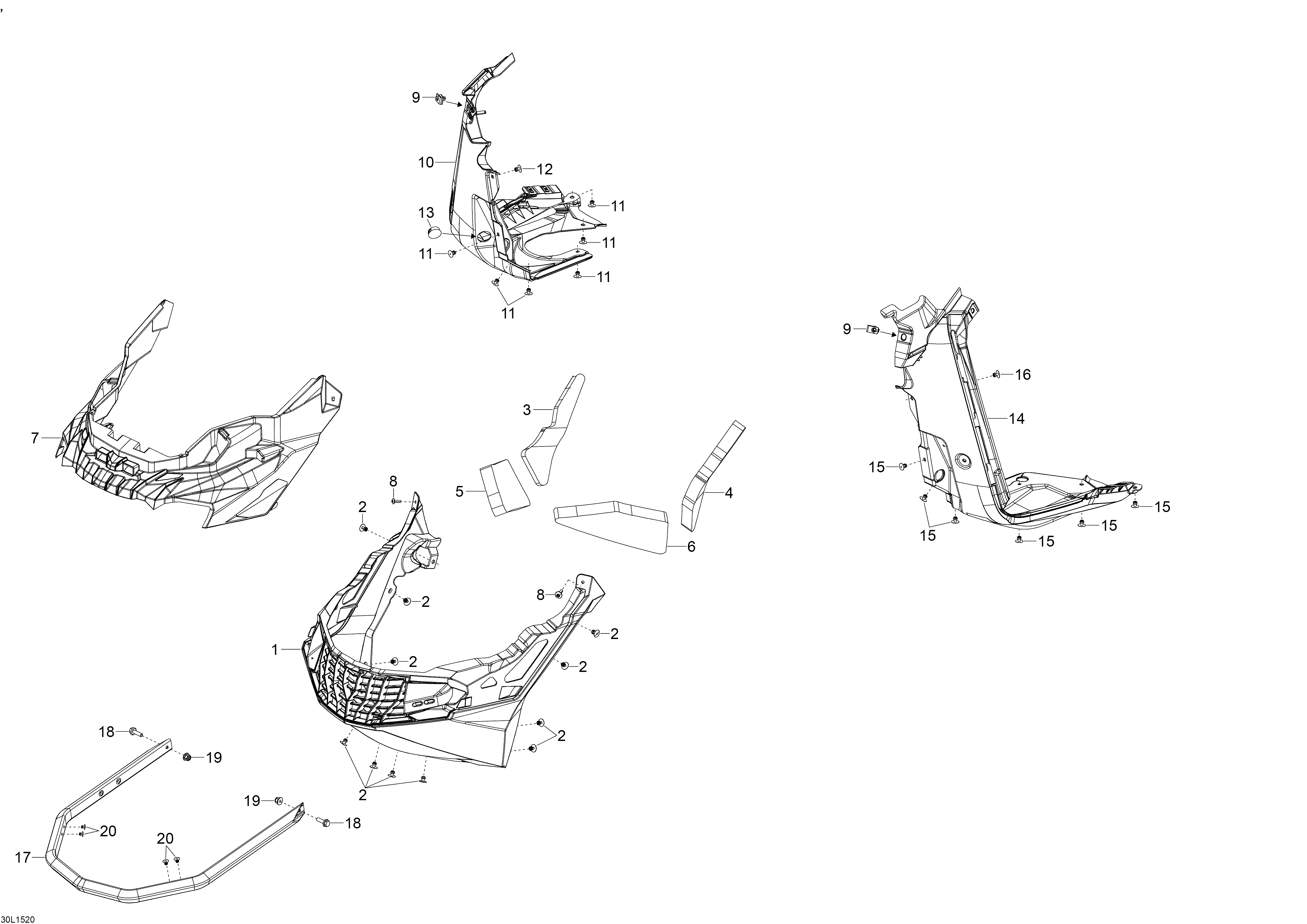

09- Bottom Pan для BRP Lynx Rave 600 ACE - 2015
-
№АртикулНазвание
-
1502007172 Black Bottom PanBlack Bottom Pan
-
2293150104 Pop Rivet 3/16Pop Rivet 3/16
-
3502007243 RH Foam UpperRH Foam Upper
-
4502007244 LH Foam UpperLH Foam Upper
-
5502007245 RH Foam LowerRH Foam Lower
-
6502007246 LH Foam LowerLH Foam Lower
-
7502007284 Front CapFront Cap
-
8250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
9250000079 Panel Nut M5Panel Nut M5
-
10502007259 Black RH Bottom PanBlack RH Bottom Pan
-
11293150104 Pop Rivet 3/16Pop Rivet 3/16
-
12293150103 Pop Rivet 3/16Pop Rivet 3/16
-
13414916600 PlugPlug
-
14502007260 Black LH Bottom PanBlack LH Bottom Pan
-
15293150104 Pop Rivet 3/16Pop Rivet 3/16
-
16293150103 Pop Rivet 3/16Pop Rivet 3/16
-
17502007281 BumperBumper
-
18207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
19233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
20293150104 Pop Rivet 3/16Pop Rivet 3/16
