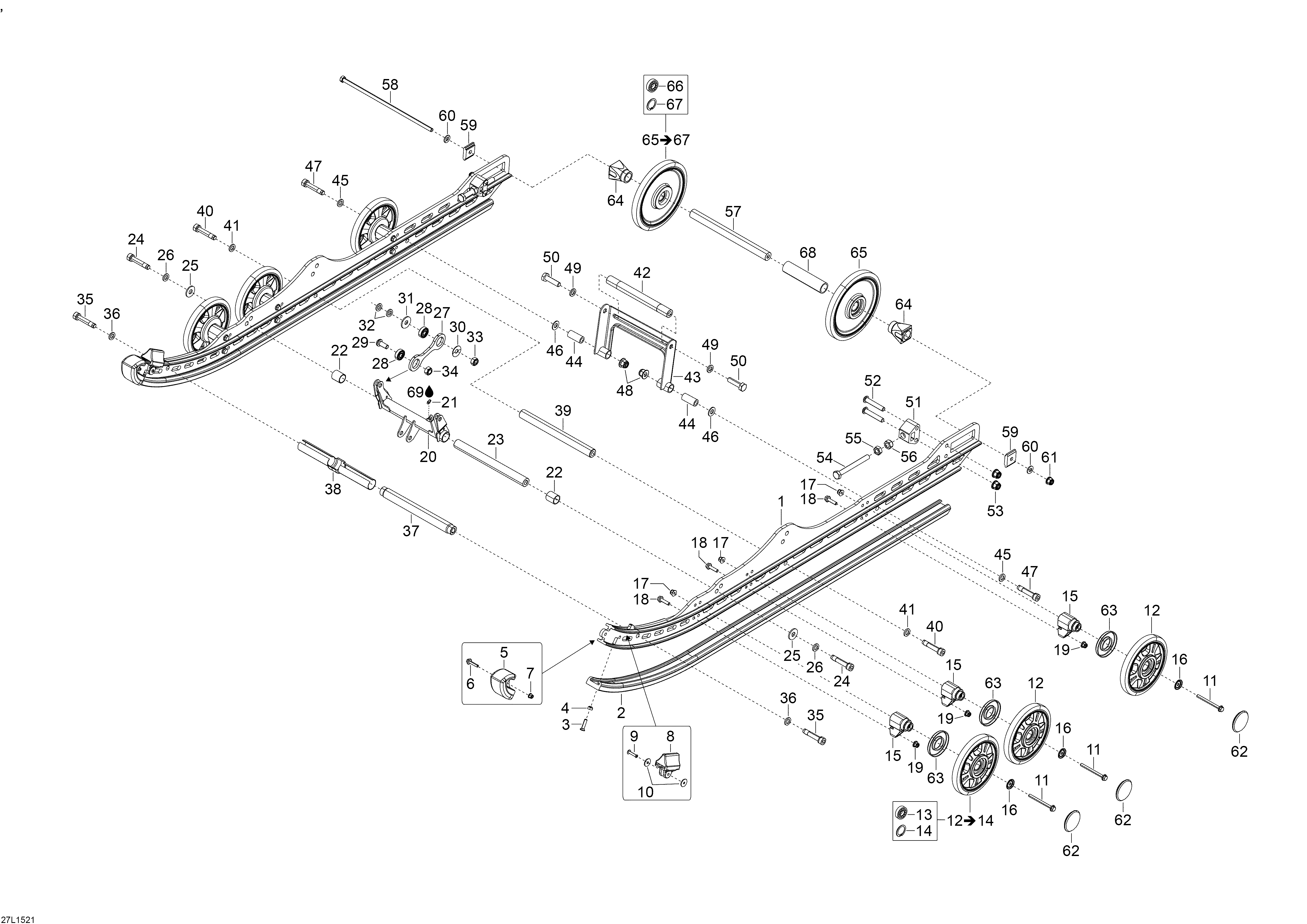

08- Rear Suspension для BRP Lynx Rave 600 E-TEC - 2015
-
№АртикулНазвание
-
1503192792 RunnerRunner
-
2503192618 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 ProtectorProtector
-
6207652544 Hex. Flange Screw M5 x 25Hex. Flange Screw M5 x 25
-
7233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
8503192106 Rubber StopperRubber Stopper
-
9293150142 Pop Rivet 3/16Pop Rivet 3/16
-
10503191273 WasherWasher
-
11207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
12503191942 Wheel 141mm. Includes 12 To 14Wheel 141mm. Includes 12 To 14
-
13503190396 Ball BearingBall Bearing
-
15503193894 SupportSupport
-
16503191820 Cup WasherCup Washer
-
17233261466 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18207662556 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
19233261466 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
20503192518 Swing WeldSwing Weld
-
21408200700 Grease FittingGrease Fitting
-
2231024 CushionCushion
-
23605355800 ShaftShaft
-
24205505587 Socket HD Screw M10 x 55Socket HD Screw M10 x 55
-
25512056700 Lock WasherLock Washer
-
2620068 Lock WasherLock Washer
-
27605254159 Connecting RodConnecting Rod
-
28605631003 Ball BearingBall Bearing
-
29205402546 Socket Head Screw M10 x 25Socket Head Screw M10 x 25
-
3025004 Spring CupSpring Cup
-
31234002600 Washer M10Washer M10
-
32234001410 Washer M10Washer M10
-
33233401414 Lock Spring M10Lock Spring M10
-
34232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
35205505044 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
36234001410 Washer M10Washer M10
-
37605353958 ShaftShaft
-
38605355096 Limiter Strap RetainerLimiter Strap Retainer
-
395343471 ShaftShaft
-
40205505044 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
41234001410 Flat Washer M10Flat Washer M10
-
42605355118 ShaftShaft
-
43503192571 Rear SwingRear Swing
-
44503192341 ShaftShaft
-
45234001410 Flat Washer M10Flat Washer M10
-
46234001410 Flat Washer M10Flat Washer M10
-
47205006044 Socket HD Screw M10 x 60Socket HD Screw M10 x 60
-
48233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
49234001410 Flat Washer M10Flat Washer M10
-
50207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
515341633 Tensioner HousingTensioner Housing
-
52205484546 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
53233281414 Nut M8Nut M8
-
54230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
55232006414 Nut M10Nut M10
-
56232500416 Nut M10Nut M10
-
57503194105 AxleAxle
-
58503194069 Hex. Screw M8 x 261Hex. Screw M8 x 261
-
59503194067 Axle SliderAxle Slider
-
60250200159 Conical Spring WasherConical Spring Washer
-
61233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
62503192771 Black Wheel CapBlack Wheel Cap
-
63503190434 Labyrinth SealLabyrinth Seal
-
64503190428 SpacerSpacer
-
65503192140 Wheel 165mm. Includes 65 To 67Wheel 165mm. Includes 65 To 67
-
66503190396 Ball BearingBall Bearing
-
67415129371 CirclipCirclip
-
68503191263 SpacerSpacer
-
69619590193 Synthetic GreaseSynthetic Grease
