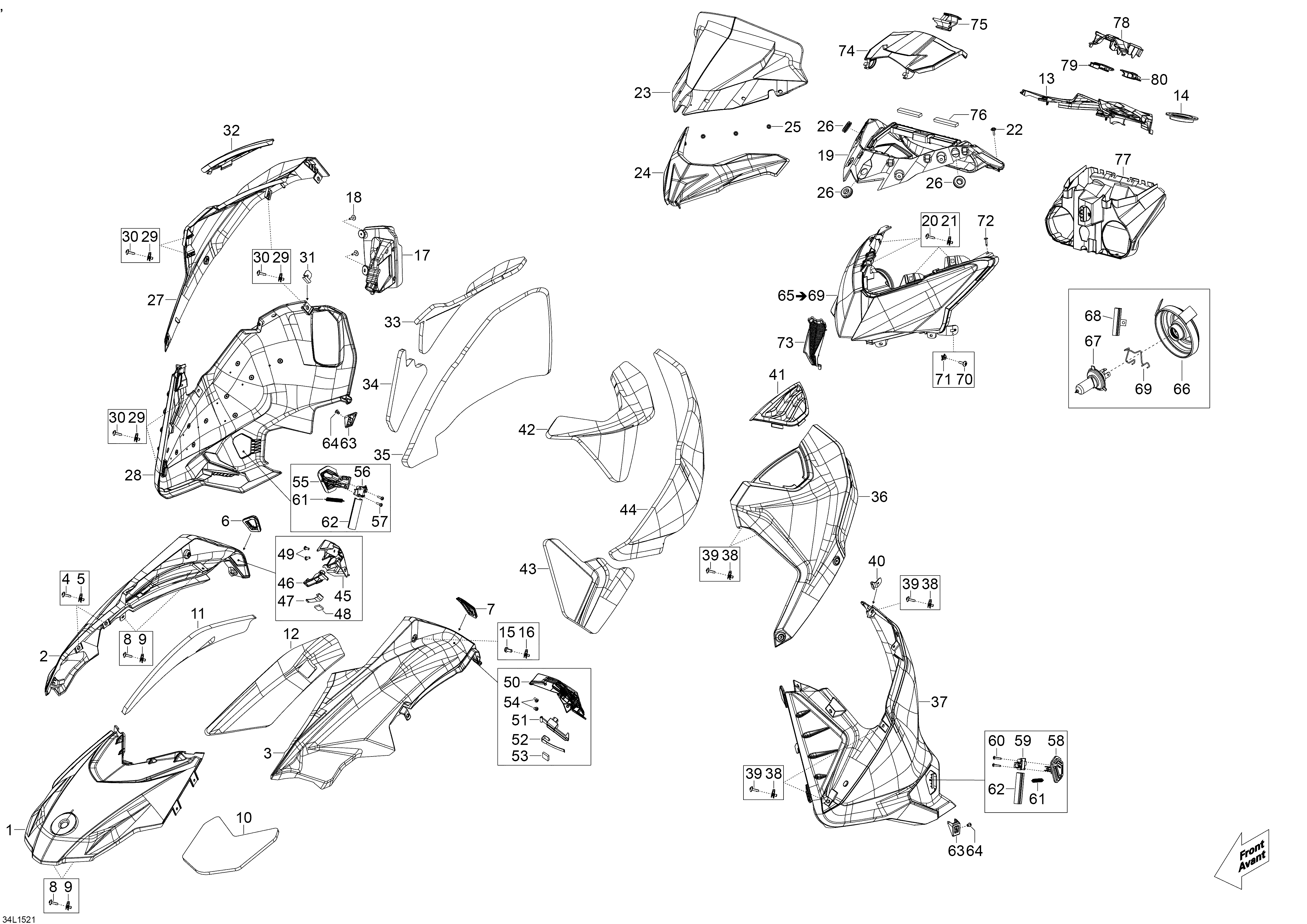

09- Hood And Windshield для BRP Lynx Rave 600 E-TEC - 2015
-
№АртикулНазвание
-
1517305566 White HoodWhite Hood
-
2517305416 White RH HoodWhite RH Hood
-
3517305417 White LH HoodWhite LH Hood
-
4250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
5250000079 Panel Nut M5Panel Nut M5
-
6517305344 RH Rubber ButtonRH Rubber Button
-
7517305345 LH Rubber ButtonLH Rubber Button
-
8250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
9250000079 Panel Nut M5Panel Nut M5
-
10517305480 FoamFoam
-
11517305481 FoamFoam
-
12517305482 FoamFoam
-
13517305205 Console RearConsole Rear
-
14517304518 Console NutConsole Nut
-
15250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
16250000079 Panel Nut M5Panel Nut M5
-
17517305060 Black RH ConsoleBlack RH Console
-
18250000113 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
19517305511 Indicator SupportIndicator Support
-
20250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
21250000079 Panel Nut M5Panel Nut M5
-
22250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
23517304921 WindshieldWindshield
-
24517305307 SupportSupport
-
25732610072 Push NutPush Nut
-
26517303756 GrommetGrommet
-
27517305425 White RH PanelWhite RH Panel
-
28517305249 Black RH PanelBlack RH Panel
-
29250000079 Panel Nut M5Panel Nut M5
-
30250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
31517305515 Guide PlateGuide Plate
-
32517305251 GrillGrill
-
33517305484 FoamFoam
-
34517305485 FoamFoam
-
35517305486 FoamFoam
-
36517305426 White LH PanelWhite LH Panel
-
37517305253 Black LH PanelBlack LH Panel
-
38250000079 Panel Nut M5Panel Nut M5
-
39250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
40517305515 Guide PlateGuide Plate
-
41517305254 GrillGrill
-
42517305488 FoamFoam
-
43517305489 FoamFoam
-
44517305490 FoamFoam
-
45517305315 RH Lock BodyRH Lock Body
-
46517305757 Lock ArmLock Arm
-
47517305317 Lock SpringLock Spring
-
48517306005 Lock Support PlateLock Support Plate
-
49205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
50517305319 LH Lock BodyLH Lock Body
-
51517305757 Lock ArmLock Arm
-
52517305317 Lock SpringLock Spring
-
53517306005 Lock Support PlateLock Support Plate
-
54205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
55517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
56517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
57250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
58517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
59517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
60250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
61517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
62517305452 Bottom Lock SleeveBottom Lock Sleeve
-
63517305323 Side Panel SupportSide Panel Support
-
64390909100 RivetRivet
-
65517305497 Headlamp. Includes 65 To 69Headlamp. Includes 65 To 69
-
66219400070 CapCap
-
67515176274 BulbBulb
-
68219800282 HolderHolder
-
69219800281 SpringSpring
-
70250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
71250100035 Jack Nut M5Jack Nut M5
-
72250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
73517305350 CapCap
-
74517304912 CoverCover
-
75517304917 LatchLatch
-
76517305157 SealSeal
-
77517305095 TrunkTrunk
-
78517304970 SupportSupport
-
79517305147 CapCap
-
80517305148 CapCap
