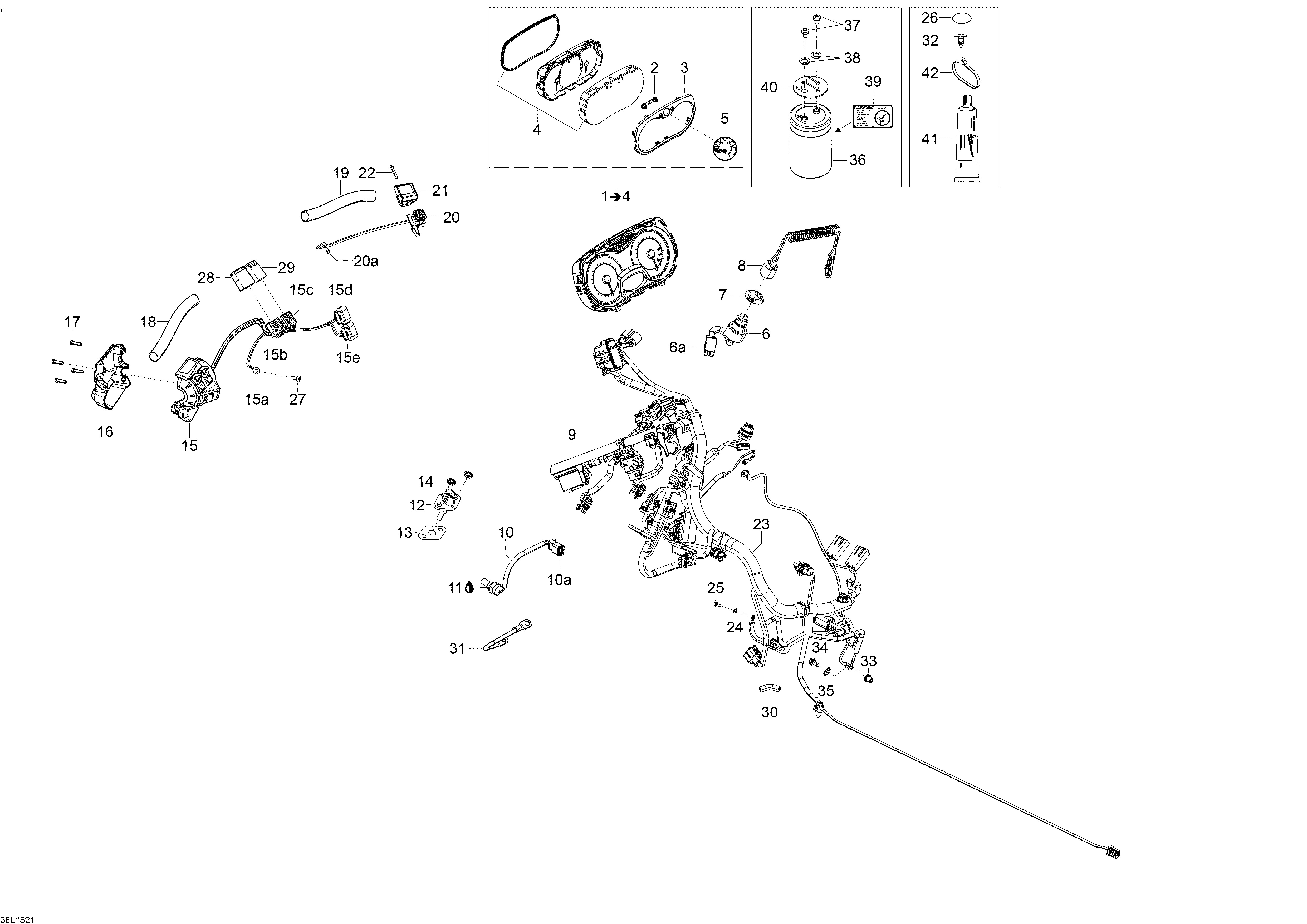

10- Electrical System для BRP Lynx Rave 600 E-TEC - 2015
-
№АртикулНазвание
-
1515177841 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5704904616 BRP LogoBRP Logo
-
6515177249 Dess SwitchDess Switch
-
6a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
6a515175232 Male TerminalMale Terminal
-
7278002963 Safety Switch NutSafety Switch Nut
-
8515178002 DESS CapDESS Cap
-
9515177134 PlatePlate
-
10515177813 Temperature SensorTemperature Sensor
-
10a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
10a278000632 Female TerminalFemale Terminal
-
10a278001661 Female TerminalFemale Terminal
-
10a293000052 Sealing CapSealing Cap
-
10a515175675 Female LockFemale Lock
-
12515176366 Air Temperature SensorAir Temperature Sensor
-
13508000769 RingRing
-
14389804300 Push NutPush Nut
-
15515177676 HousingHousing
-
15a515175504 Ring TerminalRing Terminal
-
15b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
15b515175231 Female TerminalFemale Terminal
-
15c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
15c515175231 Female TerminalFemale Terminal
-
15d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
15e710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
16515177147 Housing PlateHousing Plate
-
17250000671 Torx ScrewTorx Screw
-
18415129879 Protector TubeProtector Tube
-
19415129879 Protector TubeProtector Tube
-
20515177362 Kill SwitchKill Switch
-
20a515175232 Male TerminalMale Terminal
-
21515177310 SupportSupport
-
22250000263 Torx ScrewTorx Screw
-
23515177541 Main HarnessMain Harness
-
24234141601 Lock WasherLock Washer
-
25250000127 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
26518325560 Adhesive PatchAdhesive Patch
-
27250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
28515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
28515175232 Male TerminalMale Terminal
-
29515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
29515175232 Male TerminalMale Terminal
-
31515177289 Ground WireGround Wire
-
32414644300 DartDart
-
33293450275 InsertInsert
-
34207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
35250200041 Serrated Lock WasherSerrated Lock Washer
-
36515177272 CapacitorCapacitor
-
37250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
38250200026 Lock WasherLock Washer
-
39516006206 Capacitor DecalCapacitor Decal
-
40515177193 CapCap
-
41619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
42414115200 Tie Rap 180mmTie Rap 180mm
-
42293750008 Tie Rap 350mmTie Rap 350mm
-
42293750001 Tie Rap 94mmTie Rap 94mm
-
42605627000 Tie RapTie Rap
