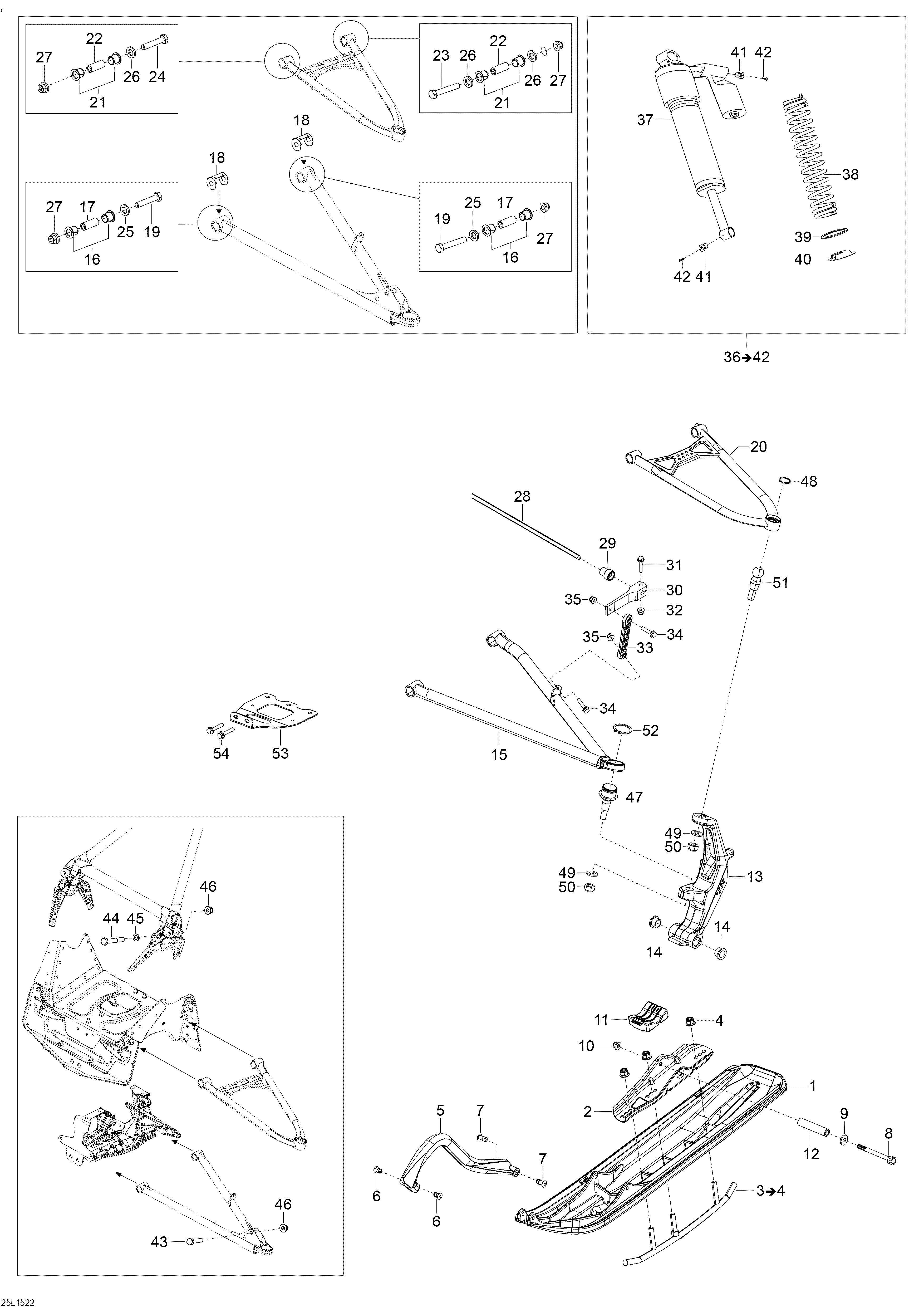

07- Front Suspension And Ski для BRP Lynx Rave RE 600 E-TEC - 2015
-
№АртикулНазвание
-
1505073154 Black Blade SkiBlack Blade Ski
-
2505073240 Ski BridgeSki Bridge
-
3860200959 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
5505073109 Red HandleRed Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Hex. Cap Screw M10 x 140Hex. Cap Screw M10 x 140
-
9732900049 WasherWasher
-
10233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
11505073411 Rubber DamperRubber Damper
-
12506133300 Ski AxleSki Axle
-
13505073475 LH Ski LegLH Ski Leg
-
13505073477 RH Ski LegRH Ski Leg
-
14505072690 CushionCushion
-
15505073426 Black RH Lower ArmBlack RH Lower Arm
-
15505073420 Black LH Lower ArmBlack LH Lower Arm
-
16505073330 CushionCushion
-
17505072393 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
20505073412 Black LH Upper ArmBlack LH Upper Arm
-
20505073416 Black RH Upper ArmBlack RH Upper Arm
-
21505073329 CushionCushion
-
22505072143 BushingBushing
-
23250000290 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
24250000289 Hex. Cap Screw M10 x 50Hex. Cap Screw M10 x 50
-
25503189564 WasherWasher
-
25503189564 Washer. (RS Kit)Washer. (RS Kit)
-
26505072392 WasherWasher
-
27250100165 Nut M10Nut M10
-
28505072444 StabilisatorStabilisator
-
29505072445 BushingBushing
-
30505072446 Stabilisator LeverStabilisator Lever
-
31207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
32233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
33505072204 Double Ball Joint LinkDouble Ball Joint Link
-
34207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
35233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37505073299 RH ShockRH Shock
-
37505073300 LH ShockLH Shock
-
38505073311 SpringSpring
-
39505073150 WasherWasher
-
40503192608 Spring StopperSpring Stopper
-
41505072753 Adjuster KnobAdjuster Knob
-
42250000644 Socket HD Screw M3 x 10Socket HD Screw M3 x 10
-
43207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
44207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
45503189564 WasherWasher
-
46233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
47505072682 Ball JointBall Joint
-
48293370070 CirclipCirclip
-
49234021410 Flat WasherFlat Washer
-
50250100089 Nut M12Nut M12
-
51505072913 Ball JointBall Joint
-
52293370035 CirclipCirclip
-
53505072584 Lower Reinforcement Plate. (RS Kit)Lower Reinforcement Plate. (RS Kit)
-
54207182044 Hex. Cap Screw M8 x 20. (RS Kit)Hex. Cap Screw M8 x 20. (RS Kit)
