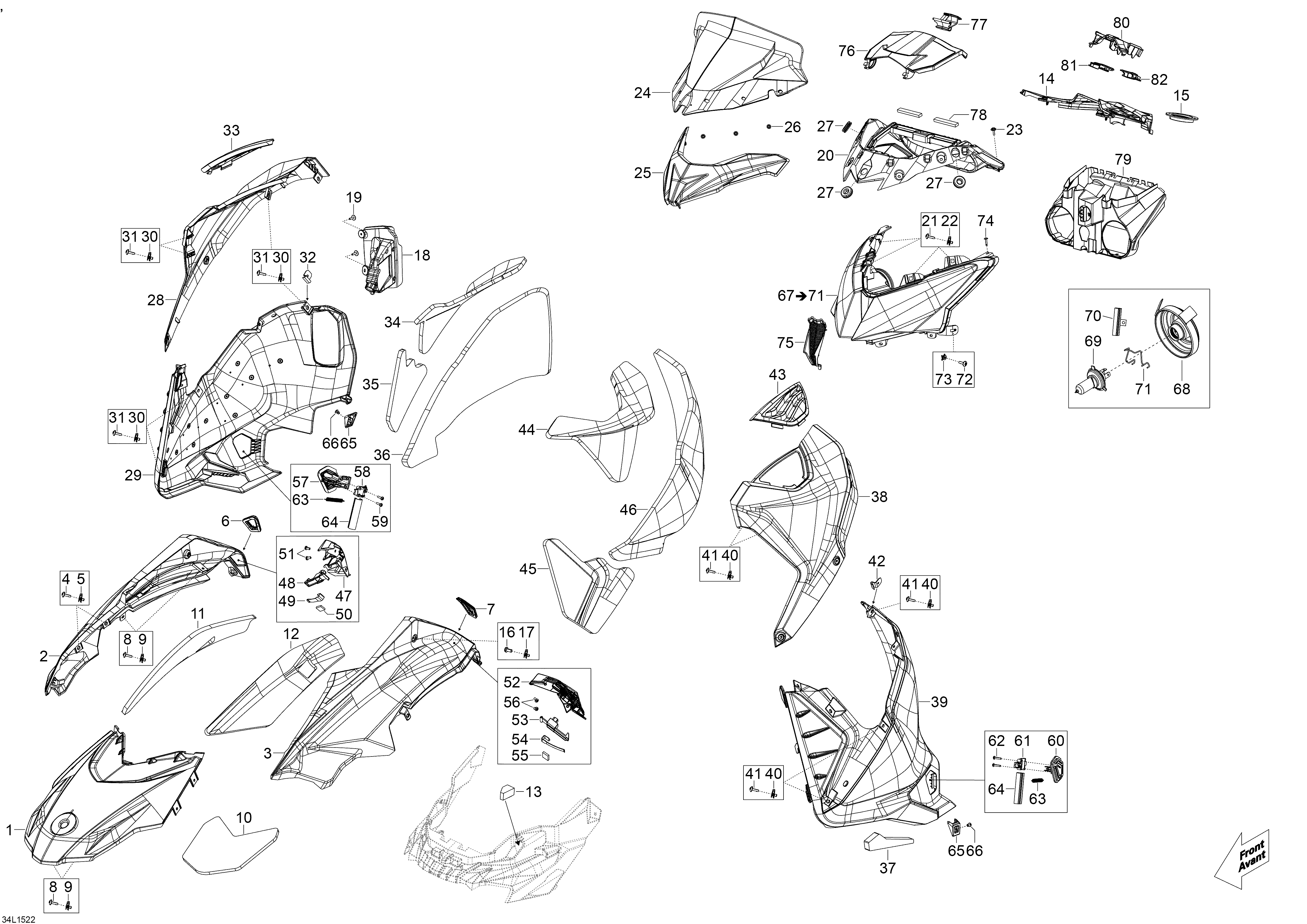

09- Hood And Windshield для BRP Lynx Rave RE 600 E-TEC - 2015
-
№АртикулНазвание
-
1517305604 Red HoodRed Hood
-
2517305247 Red RH HoodRed RH Hood
-
3517305248 Red LH HoodRed LH Hood
-
4250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
5250000079 Panel Nut M5Panel Nut M5
-
6517305344 RH Rubber ButtonRH Rubber Button
-
7517305345 LH Rubber ButtonLH Rubber Button
-
8250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
9250000079 Panel Nut M5Panel Nut M5
-
10517305480 FoamFoam
-
11517305481 FoamFoam
-
12517305482 FoamFoam
-
13517305812 FoamFoam
-
14517305205 Console RearConsole Rear
-
15517304518 Console NutConsole Nut
-
16250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
17250000079 Panel Nut M5Panel Nut M5
-
18517305060 Black RH ConsoleBlack RH Console
-
19250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
20517305511 Indicator SupportIndicator Support
-
21250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
22250000079 Panel Nut M5Panel Nut M5
-
23250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
24517304921 WindshieldWindshield
-
25517305307 SupportSupport
-
26732610072 Push NutPush Nut
-
27517303756 GrommetGrommet
-
28517305250 Red RH PanelRed RH Panel
-
29517305249 Black RH PanelBlack RH Panel
-
30250000079 Panel Nut M5Panel Nut M5
-
31250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
32517305515 Guide PlateGuide Plate
-
33517305251 GrillGrill
-
34517305484 FoamFoam
-
35517305485 FoamFoam
-
36517305486 FoamFoam
-
37517305813 FoamFoam
-
38517305252 Red LH PanelRed LH Panel
-
39517305253 Black LH PanelBlack LH Panel
-
40250000079 Panel Nut M5Panel Nut M5
-
41250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
42517305515 Guide PlateGuide Plate
-
43517305254 GrillGrill
-
44517305488 FoamFoam
-
45517305489 FoamFoam
-
46517305490 FoamFoam
-
47517305315 RH Lock BodyRH Lock Body
-
48517305757 Lock ArmLock Arm
-
49517305317 Lock SpringLock Spring
-
50517306005 Lock Support PlateLock Support Plate
-
51205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
52517305319 LH Lock BodyLH Lock Body
-
53517305757 Lock ArmLock Arm
-
54517305317 Lock SpringLock Spring
-
55517306005 Lock Support PlateLock Support Plate
-
56205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
57517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
58517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
59250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
60517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
61517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
62250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
63517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
64517305452 Bottom Lock SleeveBottom Lock Sleeve
-
65517305323 Side Panel SupportSide Panel Support
-
66390909100 RivetRivet
-
67517305497 Headlamp. Includes 67 To 71Headlamp. Includes 67 To 71
-
68219400070 CapCap
-
69515176274 BulbBulb
-
70219800282 HolderHolder
-
71219800281 SpringSpring
-
72250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
73250100035 Jack Nut M5Jack Nut M5
-
74250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
75517305350 CapCap
-
76517304912 CoverCover
-
77517304917 LatchLatch
-
78517305157 SealSeal
-
79517305095 TrunkTrunk
-
80517304970 SupportSupport
-
81517305147 CapCap
-
82517305148 CapCap
