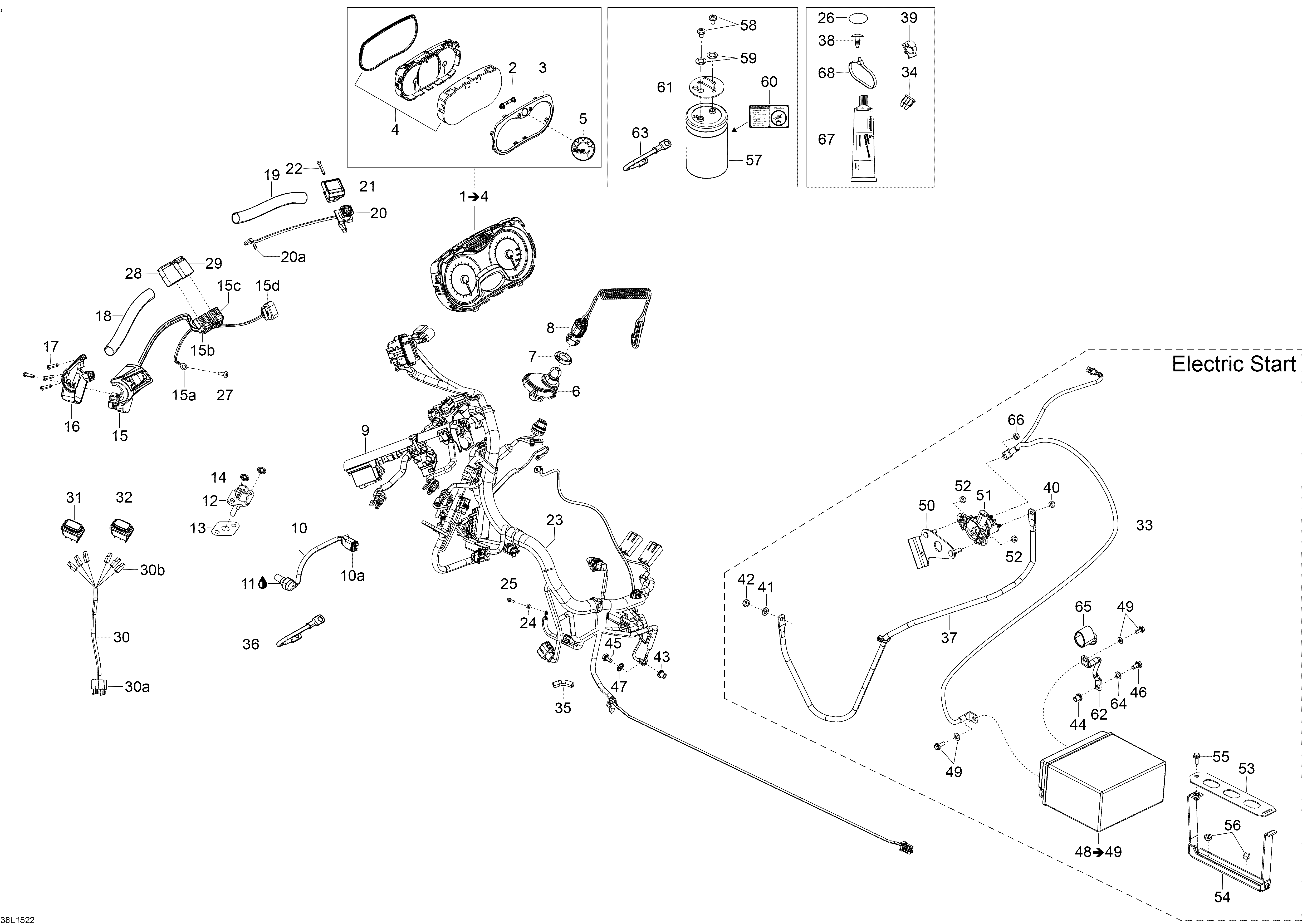

10- Electrical System для BRP Lynx Rave RE 600 E-TEC - 2015
-
№АртикулНазвание
-
1515177839 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5704904616 BRP LogoBRP Logo
-
6515177458 Dess SwitchDess Switch
-
7278002963 Safety Switch NutSafety Switch Nut
-
8515177742 DESS CapDESS Cap
-
9515177134 PlatePlate
-
10515177813 Temperature SensorTemperature Sensor
-
10a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
10a278000632 Female TerminalFemale Terminal
-
10a278001661 Female TerminalFemale Terminal
-
10a293000052 Sealing CapSealing Cap
-
10a515175675 Female LockFemale Lock
-
12515176366 Air Temperature SensorAir Temperature Sensor
-
13508000769 RingRing
-
14389804300 Push NutPush Nut
-
15515177678 HousingHousing
-
15a515175504 Ring TerminalRing Terminal
-
15b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
15b515175231 Female TerminalFemale Terminal
-
15c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
15c515175231 Female TerminalFemale Terminal
-
15d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
16515177149 Housing PlateHousing Plate
-
17250000671 Torx ScrewTorx Screw
-
18415129879 Protector TubeProtector Tube
-
19415129879 Protector TubeProtector Tube
-
20515177362 Kill SwitchKill Switch
-
20a515175232 Male TerminalMale Terminal
-
21515177310 SupportSupport
-
22250000263 Torx ScrewTorx Screw
-
23515177748 Main HarnessMain Harness
-
24234141601 Lock WasherLock Washer
-
25250000127 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
26518325560 Adhesive PatchAdhesive Patch
-
27250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
28515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
28515175232 Male TerminalMale Terminal
-
29515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
29515175232 Male TerminalMale Terminal
-
30515177495 Warmer HarnessWarmer Harness
-
30a710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
30b710002398 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
30b710002399 Female TerminalFemale Terminal
-
31515177497 Hand Warmer Rocker SwitchHand Warmer Rocker Switch
-
32515177498 Thumb Warmer Rocker SwitchThumb Warmer Rocker Switch
-
33515177496 Battery Cable With ChargingBattery Cable With Charging
-
34278001443 Fuse 25AFuse 25A
-
36515177289 Ground WireGround Wire
-
37515177208 Battery CableBattery Cable
-
38414644300 DartDart
-
39515177066 ClipClip
-
40232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
41234061410 Flat WasherFlat Washer
-
42232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
43293450275 InsertInsert
-
44293450275 InsertInsert
-
45207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
46207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
47250200041 Serrated Lock WasherSerrated Lock Washer
-
48410301203 Battery 18A. Includes 48 To 49Battery 18A. Includes 48 To 49
-
49250000282 Fastener KitFastener Kit
-
50515177558 Relay SupportRelay Support
-
51278003012 Starter RelayStarter Relay
-
52233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
53518327281 Battery StrapBattery Strap
-
54518327282 Battery StrapBattery Strap
-
55207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
56233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
57515177272 CapacitorCapacitor
-
58250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
59250200026 Lock WasherLock Washer
-
60516006206 Capacitor DecalCapacitor Decal
-
61515177193 CapCap
-
62515176780 Ground CableGround Cable
-
63515177977 Ground WireGround Wire
-
64234061410 Flat WasherFlat Washer
-
65570151000 Protection CapProtection Cap
-
66232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
67619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
68414115200 Tie Rap 180mmTie Rap 180mm
-
68293750008 Tie Rap 350mmTie Rap 350mm
-
68293750002 Tie Rap 142mmTie Rap 142mm
