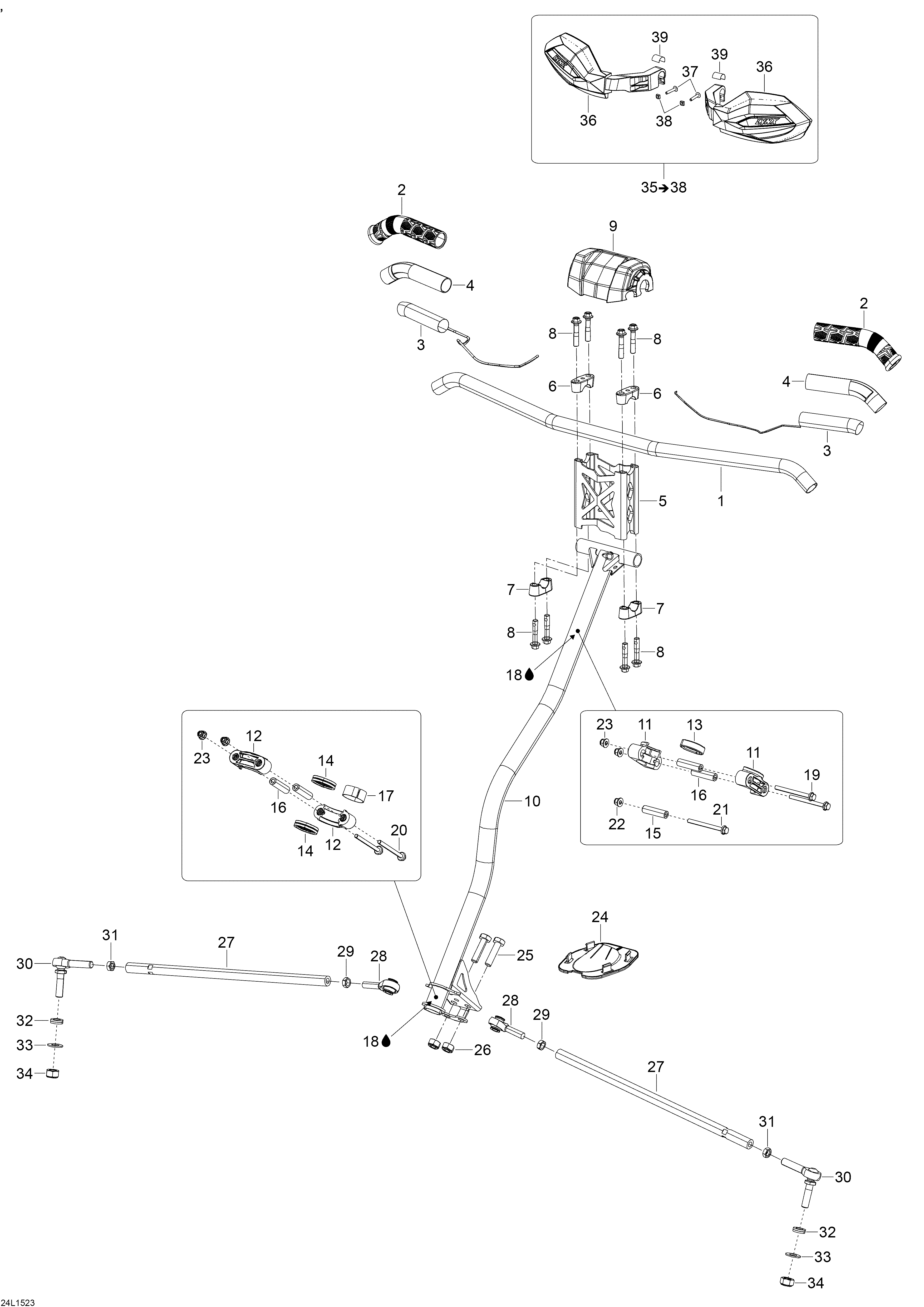

07- Steering System для BRP Lynx Rave RE 800R E-TEC - 2015
-
№АртикулНазвание
-
1506152724 Handle BarHandle Bar
-
2506152486 GripGrip
-
3506152665 Heated Film (32W)Heated Film (32W)
-
4506152548 InsulantInsulant
-
5506152570 ExtensionExtension
-
6506152751 Steering SupportSteering Support
-
7506152751 Steering SupportSteering Support
-
8250000352 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
9506152553 Steering PadSteering Pad
-
10506152584 Main TubeMain Tube
-
11506152508 Half Housing UpperHalf Housing Upper
-
12506152217 Half Housing LowerHalf Housing Lower
-
13506152509 Vibrat. Gasket UpperVibrat. Gasket Upper
-
14506152518 Vibrat. Gasket LowerVibrat. Gasket Lower
-
15506152297 Housing BushingHousing Bushing
-
16506152297 Housing BushingHousing Bushing
-
17506152440 Retaining RingRetaining Ring
-
18619590193 Synthetic GreaseSynthetic Grease
-
19207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
20207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
21207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
22233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
23233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
24506152163 PlatePlate
-
25207004044 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
26232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
27506152496 Tie RodTie Rod
-
28506152081 Ball JointBall Joint
-
29250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
30506152684 Ball JointBall Joint
-
31732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
32503192496 WasherWasher
-
33506152194 WasherWasher
-
34232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
35517305053 Deflector Kit. Includes 35 To 38Deflector Kit. Includes 35 To 38
-
37250000501 Screw M6 x 35Screw M6 x 35
-
38250000498 Square Nut M6Square Nut M6
-
39294000973 Friction TapeFriction Tape
