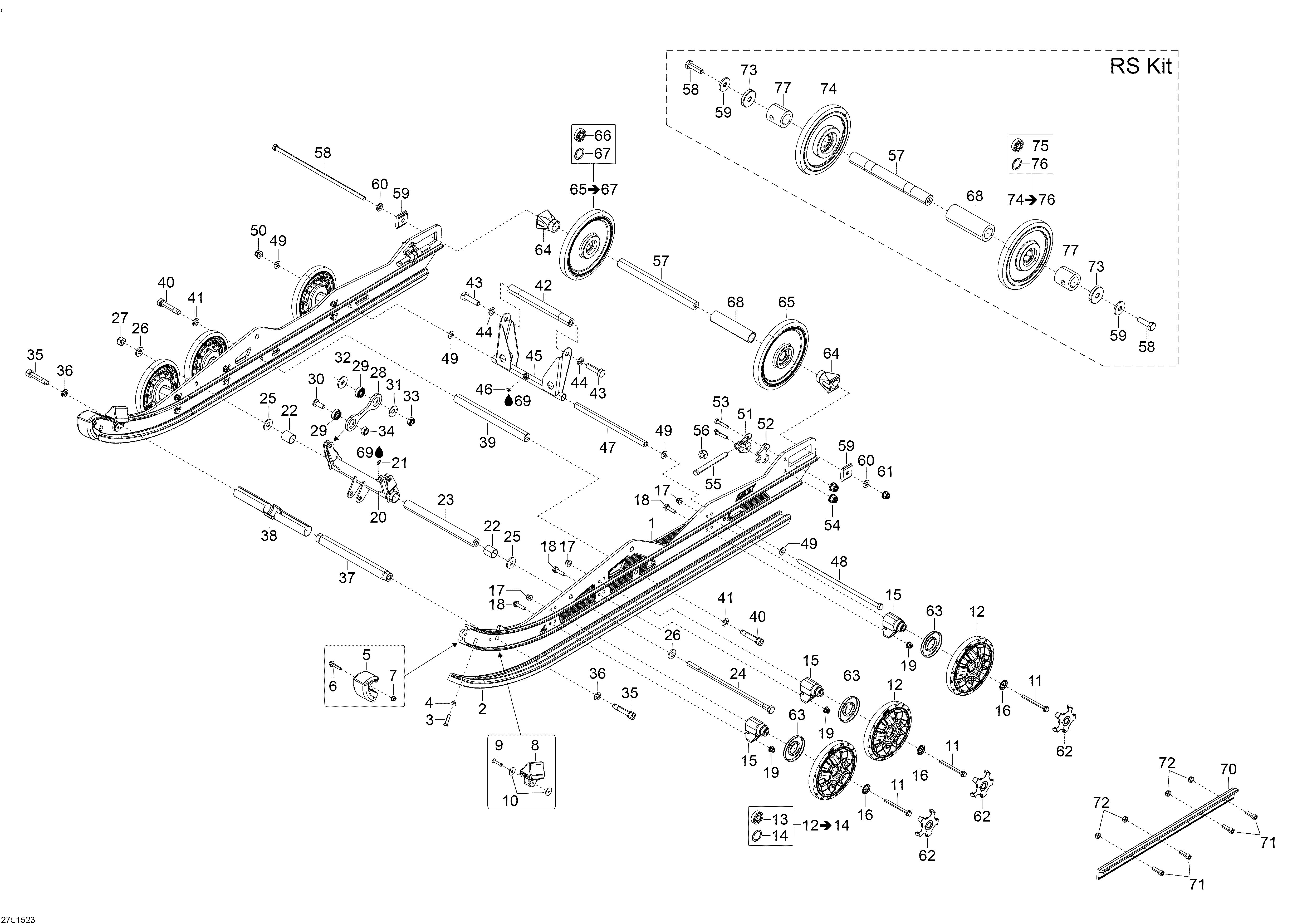

08- Rear Suspension для BRP Lynx Rave RE 800R E-TEC - 2015
-
№АртикулНазвание
-
1503194056 Red LH RunnerRed LH Runner
-
1503194057 Red RH RunnerRed RH Runner
-
1503194047 Runner. (RS Kit)Runner. (RS Kit)
-
2503192618 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 ProtectorProtector
-
6207652544 Hex. Flange Screw M5 x 25Hex. Flange Screw M5 x 25
-
7233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
8503192106 Rubber StopperRubber Stopper
-
9293150142 Pop Rivet 3/16Pop Rivet 3/16
-
10503191273 WasherWasher
-
11207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
11207667056 Hex. Flange Screw M6 x 70. (RS Kit)Hex. Flange Screw M6 x 70. (RS Kit)
-
12503193734 Wheel 141mm. Includes 12 To 14Wheel 141mm. Includes 12 To 14
-
12503193734 Wheel 141mm. (RS Kit) Includes 12 To 14Wheel 141mm. (RS Kit) Includes 12 To 14
-
13503190396 Ball BearingBall Bearing
-
15503193894 SupportSupport
-
15503193894 Support. (RS Kit)Support. (RS Kit)
-
16503191820 Cup WasherCup Washer
-
16503191820 Cup Washer. (RS Kit)Cup Washer. (RS Kit)
-
17233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
17233261466 Elastic Flange Nut M6. (RS Kit)Elastic Flange Nut M6. (RS Kit)
-
18207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
18207662556 Hex. Flange Screw M6 x 25. (RS Kit)Hex. Flange Screw M6 x 25. (RS Kit)
-
19233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
19233261466 Elastic Flange Nut M6. (RS Kit)Elastic Flange Nut M6. (RS Kit)
-
20503193580 Front SwingFront Swing
-
21408200700 Grease FittingGrease Fitting
-
22503193822 BushingBushing
-
23503193893 Lower ShaftLower Shaft
-
24503193227 Bolt M10 x 251Bolt M10 x 251
-
25503191926 WasherWasher
-
26250200138 WasherWasher
-
27233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
28605254159 Connecting RodConnecting Rod
-
29605631003 Ball BearingBall Bearing
-
30205402546 Socket HD Screw M10 x 25Socket HD Screw M10 x 25
-
3125004 Spring CupSpring Cup
-
32234002600 Washer M10Washer M10
-
33233401414 Lock Spring Nut M10Lock Spring Nut M10
-
34232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
35205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
36503192496 WasherWasher
-
37605353958 ShaftShaft
-
38605355096 Limiter Strap RetainerLimiter Strap Retainer
-
395343471 ShaftShaft
-
40205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
41503192496 WasherWasher
-
42503193638 Lower ShaftLower Shaft
-
43207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
44503192496 WasherWasher
-
45503193578 Rear SwingRear Swing
-
46408200700 Grease FittingGrease Fitting
-
47503189156 Pivot AxlePivot Axle
-
48503192440 Bolt M8 x 248Bolt M8 x 248
-
48503194069 Bolt M8 x 261. (RS Kit)Bolt M8 x 261. (RS Kit)
-
49503192494 WasherWasher
-
50233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
51503192583 TensionerTensioner
-
52503193250 SpacerSpacer
-
53207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
54233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
55230100054 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
56233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
57503194105 Rear ShaftRear Shaft
-
57503194091 Rear Shaft. (RS Kit)Rear Shaft. (RS Kit)
-
58503194069 Bolt M8 x 261Bolt M8 x 261
-
58250000817 Hex. Cap Screw M10 x 35. (RS Kit)Hex. Cap Screw M10 x 35. (RS Kit)
-
59503194067 Axle SliderAxle Slider
-
59503183300 Washer. (RS Kit)Washer. (RS Kit)
-
60250200159 Spring WasherSpring Washer
-
61233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
62503193884 White Wheel CapWhite Wheel Cap
-
62503193884 White Wheel Cap. (RS Kit)White Wheel Cap. (RS Kit)
-
63503190434 Labyrinth SealLabyrinth Seal
-
63503190434 Labyrinth Seal. (RS Kit)Labyrinth Seal. (RS Kit)
-
64503190428 SpacerSpacer
-
65503192140 Wheel 165mm. Includes 65 To 67Wheel 165mm. Includes 65 To 67
-
66503190396 Ball BearingBall Bearing
-
67415129371 CirclipCirclip
-
68503191263 SpacerSpacer
-
685448027 Spacer. (RS Kit)Spacer. (RS Kit)
-
69619590193 Synthetic GreaseSynthetic Grease
-
70503194046 Rail Reinforcement. (RS Kit)Rail Reinforcement. (RS Kit)
-
71205082554 Socket HD Screw M8 x 25. (RS Kit)Socket HD Screw M8 x 25. (RS Kit)
-
72232581414 Elasti Stop Nut M8. (RS Kit)Elasti Stop Nut M8. (RS Kit)
-
73503192735 Rear Axle Washer. (RS Kit)Rear Axle Washer. (RS Kit)
-
74503194127 Wheel 165mm. (RS Kit) Includes 74 To 76Wheel 165mm. (RS Kit) Includes 74 To 76
-
75293350055 Ball BearingBall Bearing
-
775441512 Spacer. (RS Kit)Spacer. (RS Kit)
