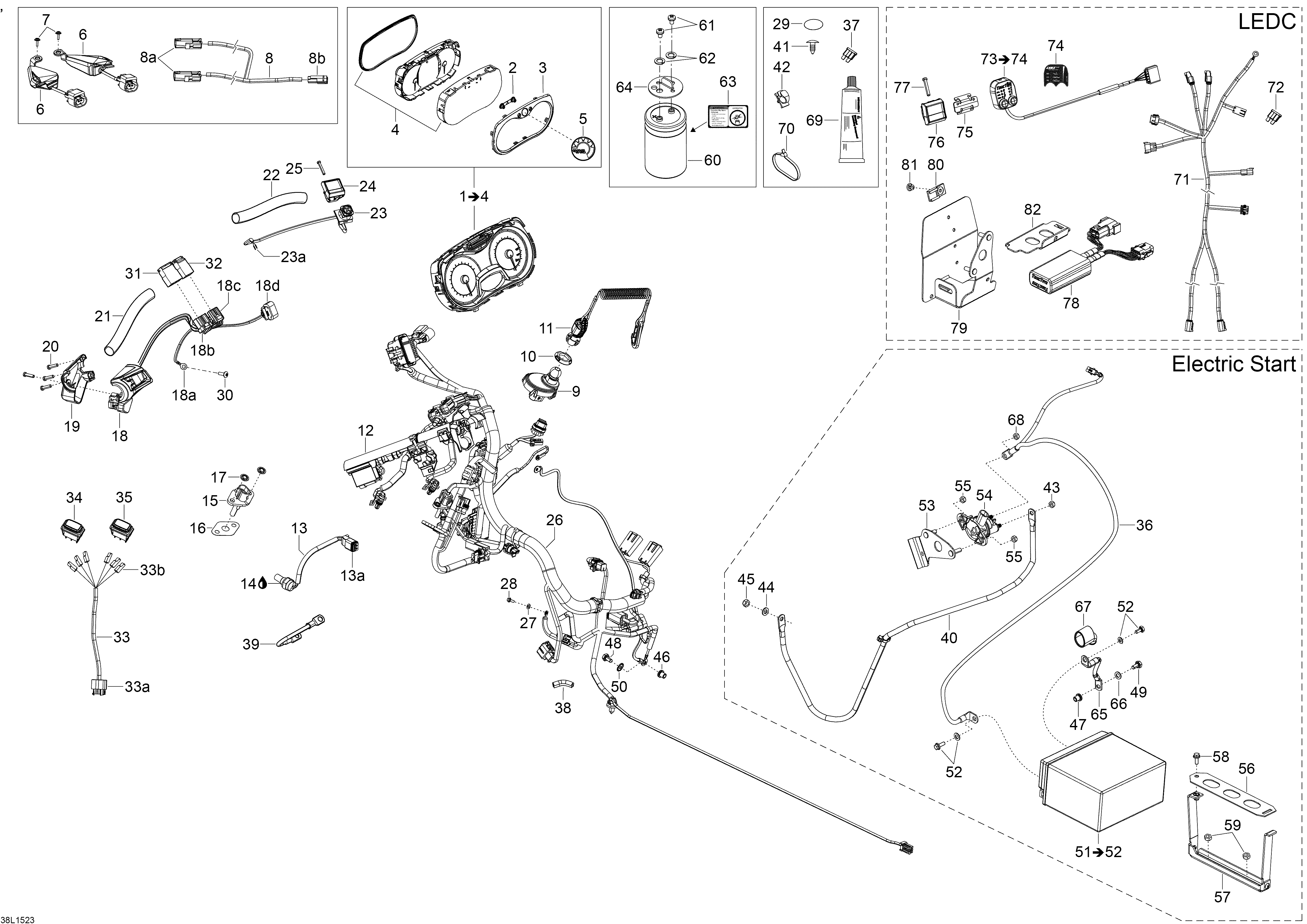

10- Electrical System для BRP Lynx Rave RE 800R E-TEC - 2015
-
№АртикулНазвание
-
1515177839 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5704904616 BRP LogoBRP Logo
-
6515177580 RH Signature LightRH Signature Light
-
6515177581 LH Signature LightLH Signature Light
-
7250000294 Torx Truss Screw K40 x 16Torx Truss Screw K40 x 16
-
8515177632 Signature Light HarnessSignature Light Harness
-
8a710001153 Wire SealWire Seal
-
8b515175654 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
8b515175232 Male TerminalMale Terminal
-
9515177458 Dess SwitchDess Switch
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515177742 DESS CapDESS Cap
-
12515177134 PlatePlate
-
13515177813 Temperature SensorTemperature Sensor
-
13a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
13a278000632 Female TerminalFemale Terminal
-
13a278001661 Female TerminalFemale Terminal
-
13a293000052 Sealing CapSealing Cap
-
13a515175675 Female LockFemale Lock
-
15515176366 Air Temperature SensorAir Temperature Sensor
-
16508000769 RingRing
-
17389804300 Push NutPush Nut
-
18515177678 HousingHousing
-
18a515175504 Ring TerminalRing Terminal
-
18b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
18b515175231 Female TerminalFemale Terminal
-
18c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
18c515175231 Female TerminalFemale Terminal
-
18d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
19515177149 Housing PlateHousing Plate
-
20250000671 Torx ScrewTorx Screw
-
21415129879 Protector TubeProtector Tube
-
22415129879 Protector TubeProtector Tube
-
23515177362 Kill SwitchKill Switch
-
23a515175232 Male TerminalMale Terminal
-
24515177310 SupportSupport
-
25250000263 Torx ScrewTorx Screw
-
26515177749 Main HarnessMain Harness
-
27234141601 Lock WasherLock Washer
-
28250000127 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
29518325560 Adhesive PatchAdhesive Patch
-
30250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
31515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
31515175232 Male TerminalMale Terminal
-
32515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
32515175232 Male TerminalMale Terminal
-
33515177495 Warmer HarnessWarmer Harness
-
33a710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
33b710002398 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
33b710002399 Female TerminalFemale Terminal
-
34515177497 Hand Warmer Rocker SwitchHand Warmer Rocker Switch
-
35515177498 Thumb Warmer Rocker SwitchThumb Warmer Rocker Switch
-
36515177496 Battery Cable With ChargingBattery Cable With Charging
-
37278001443 Fuse 25AFuse 25A
-
39515177289 Ground WireGround Wire
-
40515177208 Battery CableBattery Cable
-
41414644300 DartDart
-
42515177066 ClipClip
-
43232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
44234061410 Flat WasherFlat Washer
-
45232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
46293450275 InsertInsert
-
47293450275 InsertInsert
-
48207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
49207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
50250200041 Serrated Lock WasherSerrated Lock Washer
-
51296000295 Battery 18A. Includes 51 To 52Battery 18A. Includes 51 To 52
-
52250000282 Fastener KitFastener Kit
-
53515177558 Relay SupportRelay Support
-
54278003012 Starter RelayStarter Relay
-
55233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
56518327281 Battery StrapBattery Strap
-
57518327282 Battery StrapBattery Strap
-
58207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
59233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
60515177272 CapacitorCapacitor
-
61250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
62250200026 Lock WasherLock Washer
-
63516006206 Capacitor DecalCapacitor Decal
-
64515177193 CapCap
-
65515176780 Ground CableGround Cable
-
66234061410 Flat WasherFlat Washer
-
67570151000 Protection CapProtection Cap
-
68232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
69619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
70293750001 Tie Rap 94mmTie Rap 94mm
-
70414115200 Tie Rap 180mmTie Rap 180mm
-
70293750008 Tie Rap 350mmTie Rap 350mm
-
70293750002 Tie Rap 142mmTie Rap 142mm
-
71515177782 LEDC Suspension HarnessLEDC Suspension Harness
-
72278001197 Fuse 10AFuse 10A
-
73515177783 Control Box Ass'y. Includes 73 To 74Control Box Ass'y. Includes 73 To 74
-
74515177784 Control Box DecalControl Box Decal
-
75515177779 Control Box FastenerControl Box Fastener
-
76515177310 SupportSupport
-
77250000263 Torx ScrewTorx Screw
-
78515177785 Control BoxControl Box
-
79503194278 ECU SupportECU Support
-
80270000141 ClipClip
-
81293150037 RivetRivet
-
82503194279 ECU SupportECU Support
