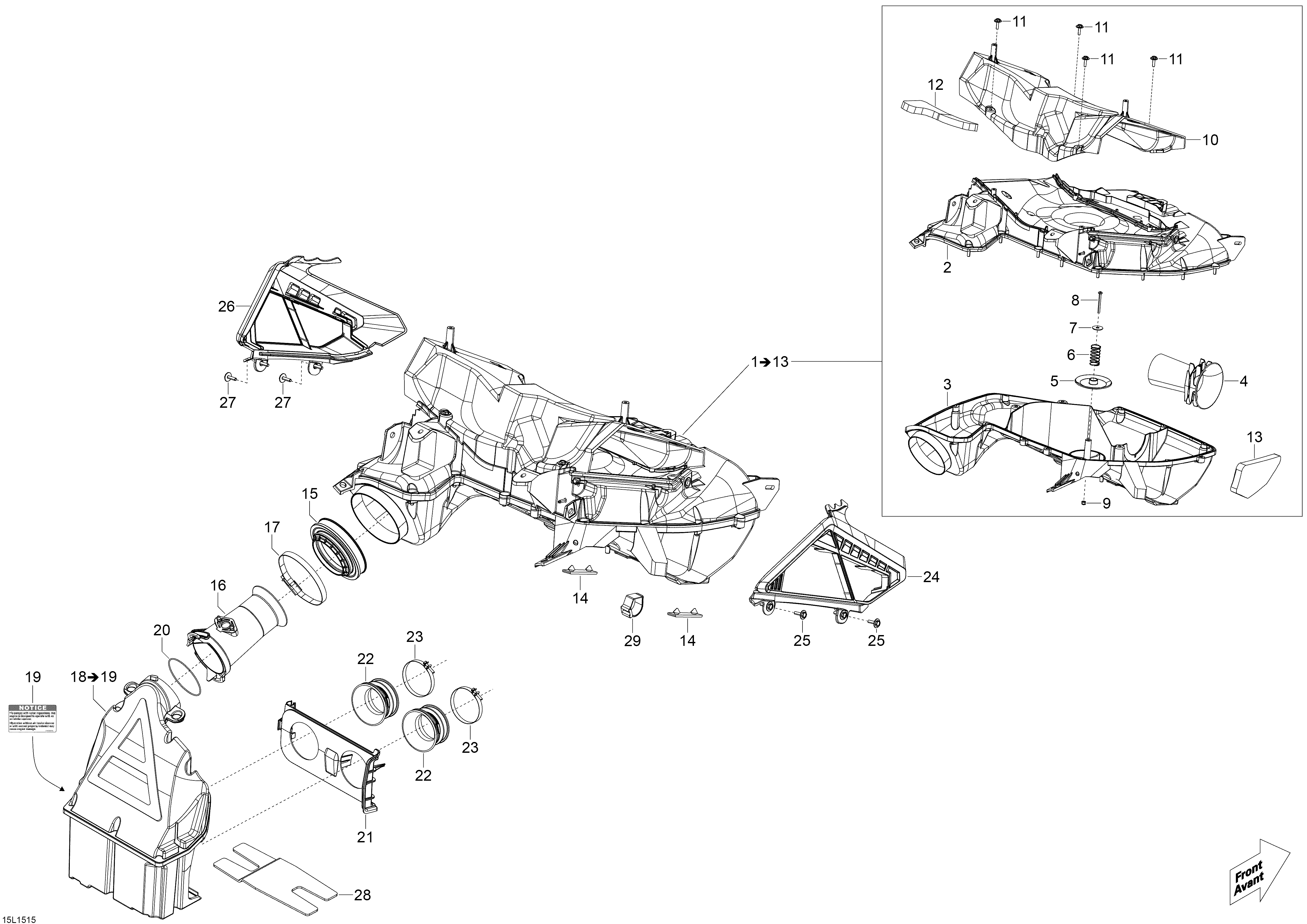

02- Air Intake System для BRP Lynx Xtrim SC 600 E-TEC - 2015
-
№АртикулНазвание
-
1508000760 Secondary Chamber Ass'y. Includes 1 To 13Secondary Chamber Ass'y. Includes 1 To 13
-
7224060201 Flat WasherFlat Washer
-
8205444086 Socket HD Screw M4 x 40Socket HD Screw M4 x 40
-
9232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
11250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
14508000744 StopperStopper
-
15508000567 Intake AdaptorIntake Adaptor
-
16508000662 FluteFlute
-
17514052924 Gear ClampGear Clamp
-
18508000660 Primary Chamber Ass'y. Includes 18 To 19Primary Chamber Ass'y. Includes 18 To 19
-
19516005876 Instr. Label, Air IntakeInstr. Label, Air Intake
-
20293300115 O-RingO-Ring
-
21508000613 Adapter PlateAdapter Plate
-
22508000614 Air Intake AdapterAir Intake Adapter
-
23508000346 ClampClamp
-
24508000730 Air Filter RHAir Filter RH
-
25250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
26508000731 Air Filter LHAir Filter LH
-
27250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
28508000739 Insulated FoamInsulated Foam
-
29508000532 Strip VelcroStrip Velcro
