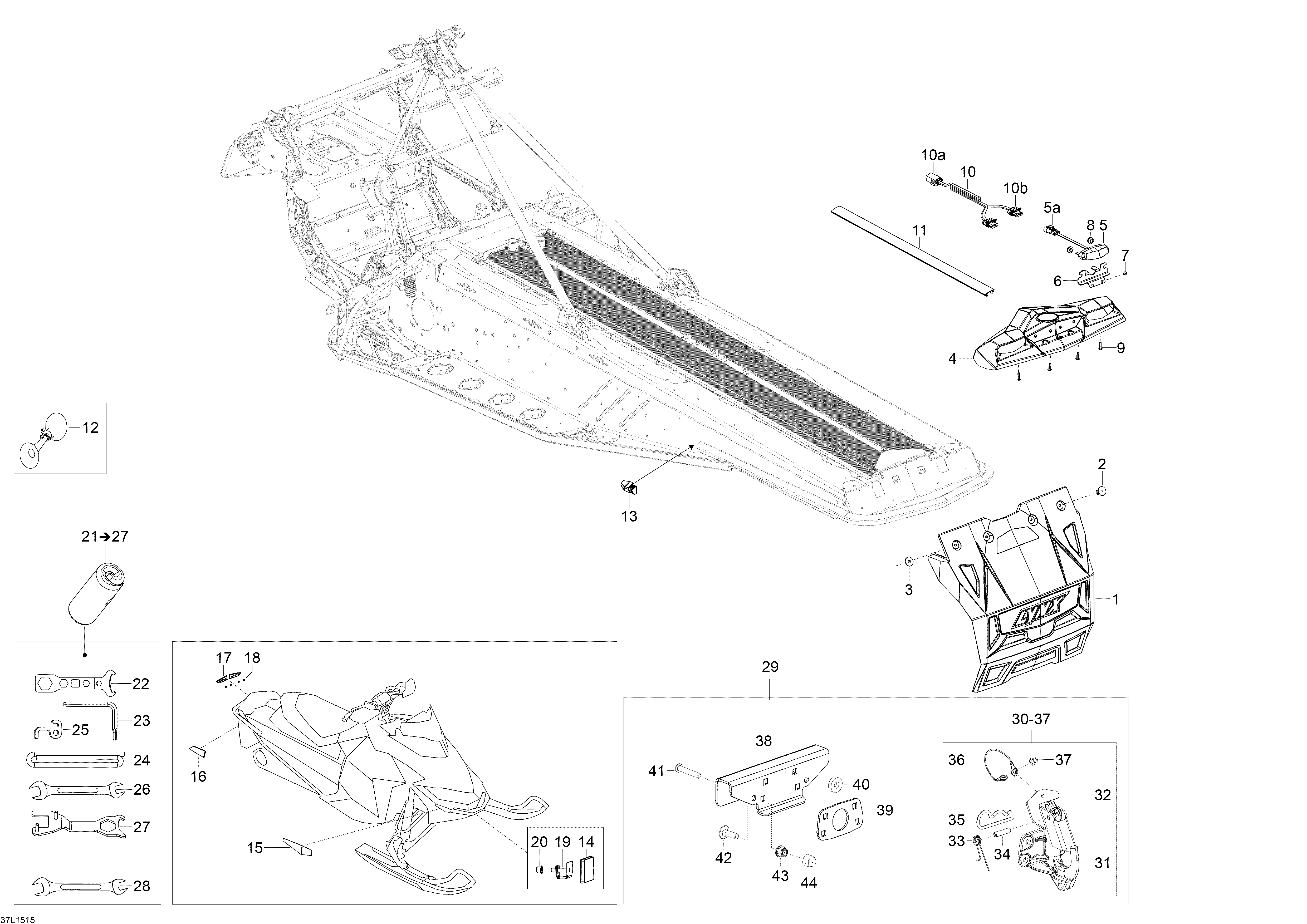

09- Utilities для BRP Lynx Xtrim SC 600 E-TEC - 2015
-
№АртикулНазвание
-
1520001187 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16Pop Rivet 3/16
-
3517124300 WasherWasher
-
4511000863 Light CoverLight Cover
-
5520001302 Rear LightRear Light
-
5a710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
5a409012900 Male TerminalMale Terminal
-
5a409013700 PlugPlug
-
5a278001013 Wire SealWire Seal
-
6520001375 Rear Light SupportRear Light Support
-
7390909200 RivetRivet
-
8520000829 GrommetGrommet
-
9250000294 Torx Truss Screw K40 x 16Torx Truss Screw K40 x 16
-
10515177517 Rear Light HarnessRear Light Harness
-
10a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10a515175232 Male TerminalMale Terminal
-
10b409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
10b278001014 Female TerminalFemale Terminal
-
10a409013700 PlugPlug
-
10a278001013 Wire SealWire Seal
-
10a515176621 Wire SealWire Seal
-
11520000829 TrimTrim
-
12549011291 HornHorn
-
13520000965 Cap RHCap RH
-
13520000964 Cap LHCap LH
-
1421118 Reflector, BrightReflector, Bright
-
15520001351 Reflector Front LHReflector Front LH
-
15520001352 Reflector Front RHReflector Front RH
-
16705007154 Reflector, Yellow RHReflector, Yellow RH
-
16705007155 Reflector, Yellow LHReflector, Yellow LH
-
17705007156 Reflector, Red RHReflector, Red RH
-
17705007157 Reflector, Red LHReflector, Red LH
-
18732610072 Push NutPush Nut
-
19520001452 Reflector MountReflector Mount
-
20233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
21520001158 Tool Kit (2-TEC). Includes 21 To 28Tool Kit (2-TEC). Includes 21 To 28
-
22520001159 WrenchWrench
-
23520001142 KeyKey
-
24412500200 Starter RopeStarter Rope
-
25529000060 Starter GripStarter Grip
-
26529000002 Fork Wrench 10/13Fork Wrench 10/13
-
27520000988 WrenchWrench
-
2834017 Wrench 17/19Wrench 17/19
-
29860200886 J-Hook Kit. Includes 29 To 44J-Hook Kit. Includes 29 To 44
-
32520001041 Locking PlateLocking Plate
-
33545693 SpringSpring
-
3441012 Spring PinSpring Pin
-
3541029 Cotter PinCotter Pin
-
365446839 Retainer CableRetainer Cable
-
37390909100 RivetRivet
-
40520001288 SleeveSleeve
-
41205484546 Socket Screw M8 x 45Socket Screw M8 x 45
-
42207782544 Carriage Bolt M8 x 25Carriage Bolt M8 x 25
-
43233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
4428056 CoverCover
