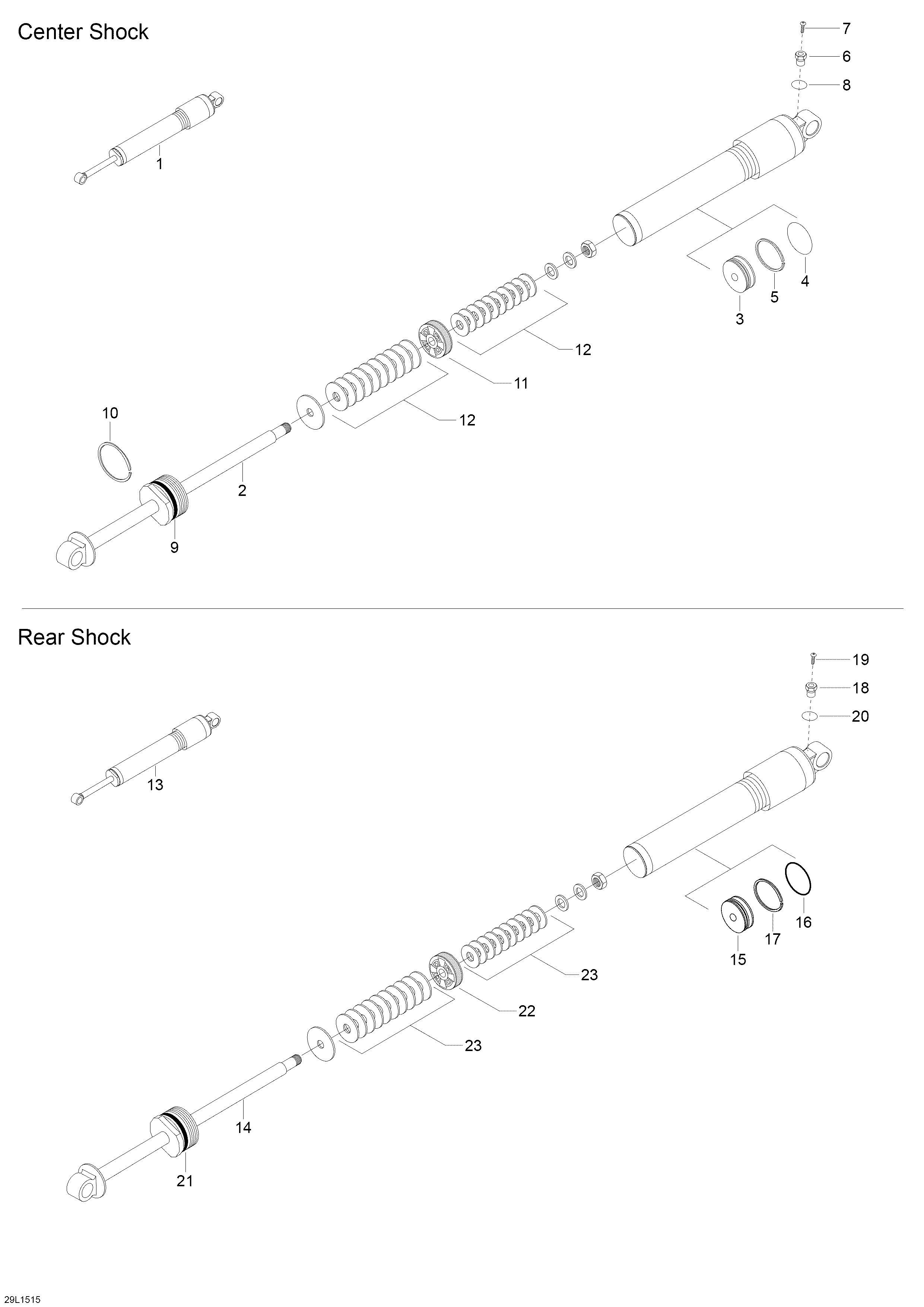

08- Rear Shocks для BRP Lynx Xtrim SC 600 E-TEC - 2015
-
№АртикулНазвание
-
1503193287 Shock, Front ArmShock, Front Arm
-
4414888312 O RingO Ring
-
5503189308 Piston RingPiston Ring
-
6505070398 Valve Ass?yValve Ass?y
-
7505070399 ScrewScrew
-
8505070400 O RingO Ring
-
11619300108 Piston 36 mm, 0 x 0,3 SlitsPiston 36 mm, 0 x 0,3 Slits
-
11415128848 Piston 36 mm, 1 x 0,3 SlitsPiston 36 mm, 1 x 0,3 Slits
-
11619300161 Piston 36 mm, 2 x 0,3 slitsPiston 36 mm, 2 x 0,3 slits
-
11619300071 Piston 36 mm, 3 x 0,3 SlitsPiston 36 mm, 3 x 0,3 Slits
-
11619300109 Piston 36 mm, 4 x 0,3 SlitsPiston 36 mm, 4 x 0,3 Slits
-
11619300111 Piston 36 mm, 5 x 0,3 SlitsPiston 36 mm, 5 x 0,3 Slits
-
11619300110 Piston 36 mm, 6 x 0,3 SlitsPiston 36 mm, 6 x 0,3 Slits
-
12619300162 Shim 36 mm, 12 x 0,114Shim 36 mm, 12 x 0,114
-
12619300075 Shim 36 mm, 12 x 0,152Shim 36 mm, 12 x 0,152
-
12619300117 Shim 36 mm, 12 x 0,203Shim 36 mm, 12 x 0,203
-
12619300120 Shim 36 mm, 12 x 0,254Shim 36 mm, 12 x 0,254
-
12619300076 Shim 36 mm, 13 x 0,114Shim 36 mm, 13 x 0,114
-
12619300077 Shim 36 mm, 13 x 0,152Shim 36 mm, 13 x 0,152
-
12619300078 Shim 36 mm, 13 x 0,203Shim 36 mm, 13 x 0,203
-
12619300079 Shim 36 mm, 13 x 0,254Shim 36 mm, 13 x 0,254
-
12619300080 Shim 36 mm, 14 x 0,114Shim 36 mm, 14 x 0,114
-
12619300081 Shim 36 mm, 14 x 0,152Shim 36 mm, 14 x 0,152
-
12619300082 Shim 36 mm, 14 x 0,203Shim 36 mm, 14 x 0,203
-
12619300083 Shim 36 mm. 14 X 0,254Shim 36 mm. 14 X 0,254
-
12619300121 Shim 36 mm, 15 x 0,114Shim 36 mm, 15 x 0,114
-
12619300115 Shim 36 mm, 15 x 0,152Shim 36 mm, 15 x 0,152
-
12619300122 Shim 36 mm, 15 x 0,203Shim 36 mm, 15 x 0,203
-
12619300118 Shim 36 mm, 15 x 0,254Shim 36 mm, 15 x 0,254
-
12619300084 Shim 36 mm, 16 x 0,114Shim 36 mm, 16 x 0,114
-
12619300114 Shim 36 mm, 16 x 0,152Shim 36 mm, 16 x 0,152
-
12619300119 Shim 36 mm, 16 x 0,203Shim 36 mm, 16 x 0,203
-
12619300116 Shim 36 mm, 16 x 0,254Shim 36 mm, 16 x 0,254
-
12619300085 Shim 36 mm, 17 x 0,114Shim 36 mm, 17 x 0,114
-
12619300086 Shim 36 mm, 17 x 0,152Shim 36 mm, 17 x 0,152
-
12619300087 Shim 36 mm, 17 x 0,203Shim 36 mm, 17 x 0,203
-
12619300058 Shim 36 mm, 17 x 0,254Shim 36 mm, 17 x 0,254
-
12619300068 Shim 36 mm, 18 x 0,114Shim 36 mm, 18 x 0,114
-
12619300123 Shim 36 mm, 18 x 0,152Shim 36 mm, 18 x 0,152
-
12619300124 Shim 36 mm, 18 x 0,203Shim 36 mm, 18 x 0,203
-
12230016 Shim 36 mm, 18 x 0,254Shim 36 mm, 18 x 0,254
-
12619300088 Shim 36 mm, 19 x 0,114Shim 36 mm, 19 x 0,114
-
12619300089 Shim 36 mm, 19 x 0,152Shim 36 mm, 19 x 0,152
-
12619300090 Shim 36 mm, 19 x 0,203Shim 36 mm, 19 x 0,203
-
12619300091 Shim 36 mm, 19 x 0,254Shim 36 mm, 19 x 0,254
-
12619300125 Shim 36 mm, 20 x 0,114Shim 36 mm, 20 x 0,114
-
12619300126 Shim 36 mm, 20 x 0,152Shim 36 mm, 20 x 0,152
-
12619300127 Shim 36 mm, 20 x 0,203Shim 36 mm, 20 x 0,203
-
12230017 Shim 36 mm, 20 x 0,254Shim 36 mm, 20 x 0,254
-
12619300128 Shim 36 mm, 21 x 0,114Shim 36 mm, 21 x 0,114
-
12619300092 Shim 36 mm, 21 x 0,152Shim 36 mm, 21 x 0,152
-
12619300093 Shim 36 mm, 21 x 0,203Shim 36 mm, 21 x 0,203
-
12619300094 Shim 36 mm, 21 x 0,254Shim 36 mm, 21 x 0,254
-
12230018 Shim 36 mm, 22 x 0,114Shim 36 mm, 22 x 0,114
-
12619300129 Shim 36 mm, 22 x 0,152Shim 36 mm, 22 x 0,152
-
12619300098 Shim 36 mm, 22 x 0,203Shim 36 mm, 22 x 0,203
-
12230019 Shim 36 mm, 22 x 0,254Shim 36 mm, 22 x 0,254
-
12230021 Shim 36 mm, 24 x 0,114Shim 36 mm, 24 x 0,114
-
12230022 Shim 36 mm, 24 x 0,152Shim 36 mm, 24 x 0,152
-
12230023 Shim 36 mm, 24 x 0,203Shim 36 mm, 24 x 0,203
-
12619300095 Shim 36 mm, 24 x 0,254Shim 36 mm, 24 x 0,254
-
12230024 Shim 36 mm, 26 x 0,114Shim 36 mm, 26 x 0,114
-
12619300130 Shim 36 mm, 26 x 0,152Shim 36 mm, 26 x 0,152
-
12619300131 Shim 36 mm, 26 x 0,203Shim 36 mm, 26 x 0,203
-
12619300099 Shim 36 mm, 26 x 0,254Shim 36 mm, 26 x 0,254
-
12230025 Shim 36 mm, 28 x 0,114Shim 36 mm, 28 x 0,114
-
12619300096 Shim 36 mm, 28 x 0,152Shim 36 mm, 28 x 0,152
-
12619300102 Shim 36 mm, 28 x 0,203Shim 36 mm, 28 x 0,203
-
12230026 Shim 36 mm, 28 x 0,254Shim 36 mm, 28 x 0,254
-
12619300104 Shim 36 mm, 30 x 0,152Shim 36 mm, 30 x 0,152
-
12619300132 Shim 36 mm, 30 x 0,203Shim 36 mm, 30 x 0,203
-
12619300113 Shim 36 mm, 30 x 0,254Shim 36 mm, 30 x 0,254
-
13503192998 Shock, Rear ArmShock, Rear Arm
-
15503189008 Floating Piston. Old 503189008Floating Piston. Old 503189008
-
16503189007 O RingO Ring
-
17503189006 Piston RingPiston Ring
-
18505070398 Air Valve Ass'yAir Valve Ass'y
-
19505070399 ScrewScrew
-
20505070400 O RringO Rring
-
21230060 Seal Carrier Ass?ySeal Carrier Ass?y
-
22230043 Piston 46 mm, 0 mmPiston 46 mm, 0 mm
-
22619300159 Piston 46 mm, 1.2 mmPiston 46 mm, 1.2 mm
-
22619300160 Piston 46 mm, 1.7 mmPiston 46 mm, 1.7 mm
-
22230039 Piston 46 mm, 2.0 mmPiston 46 mm, 2.0 mm
-
23619300060 Shim 40/46 mm, 17 x 0,114Shim 40/46 mm, 17 x 0,114
-
23619300069 Shim 40/46 mm, 17 x 0,203Shim 40/46 mm, 17 x 0,203
-
23619300068 Shim 40/46 mm, 18 x 0,114Shim 40/46 mm, 18 x 0,114
-
23619300067 Shim 40/46 mm, 18 x 0,152Shim 40/46 mm, 18 x 0,152
-
23230029 Shim 40/46 mm, 20 x 0,114Shim 40/46 mm, 20 x 0,114
-
23230030 Shim 40/46 mm, 20 x 0,152Shim 40/46 mm, 20 x 0,152
-
23230031 Shim 40/46 mm, 20 x 0,203Shim 40/46 mm, 20 x 0,203
-
23230032 Shim 40/46 mm, 20 x 0,254Shim 40/46 mm, 20 x 0,254
-
23619300097 Shim 40/46 mm, 20 x 0,305Shim 40/46 mm, 20 x 0,305
-
23619300143 Shim 40/46 mm, 22 x 0,114Shim 40/46 mm, 22 x 0,114
-
23619300140 Shim 40/46 mm, 22 x 0,152Shim 40/46 mm, 22 x 0,152
-
23619300098 Shim 40/46 mm, 22 x 0,203Shim 40/46 mm, 22 x 0,203
-
23619300134 Shim 40/46 mm, 22 x 0,254Shim 40/46 mm, 22 x 0,254
-
23619300144 Shim 40/46 mm, 22 x 0,305Shim 40/46 mm, 22 x 0,305
-
23619300145 Shim 40/46 mm, 24 x 0,114Shim 40/46 mm, 24 x 0,114
-
23619300146 Shim 40/46 mm, 24 x 0,152Shim 40/46 mm, 24 x 0,152
-
23619300147 Shim 40/46 mm, 24 x 0,203Shim 40/46 mm, 24 x 0,203
-
23619300095 Shim 40/46 mm, 24 x 0,254Shim 40/46 mm, 24 x 0,254
-
23619300148 Shim 40/46 mm, 24 x 0,305Shim 40/46 mm, 24 x 0,305
-
23619300149 Shim 40/46 mm, 26 x 0,114Shim 40/46 mm, 26 x 0,114
-
23619300141 Shim 40/46 mm, 26 x 0,152Shim 40/46 mm, 26 x 0,152
-
23619300150 Shim 40/46 mm, 26 x 0,203Shim 40/46 mm, 26 x 0,203
-
23619300099 Shim 40/46 mm, 26 x 0,254Shim 40/46 mm, 26 x 0,254
-
23619300100 Shim 40/46 mm, 26 x 0,305Shim 40/46 mm, 26 x 0,305
-
23619300101 Shim 40/46 mm, 28 x 0,114Shim 40/46 mm, 28 x 0,114
-
23619300151 Shim 40/46 mm, 28 x 0,152Shim 40/46 mm, 28 x 0,152
-
23619300102 Shim 40/46 mm, 28 x 0,203Shim 40/46 mm, 28 x 0,203
-
23619300103 Shim 40/46 mm, 28 x 0,254Shim 40/46 mm, 28 x 0,254
-
23619300152 Shim 40/46 mm, 28 x 0,305Shim 40/46 mm, 28 x 0,305
-
23619300153 Shim 40/46 mm, 30 x 0,114Shim 40/46 mm, 30 x 0,114
-
23619300104 Shim 40/46 mm, 30 x 0,152Shim 40/46 mm, 30 x 0,152
-
23619300154 Shim 40/46 mm, 30 x 0,203Shim 40/46 mm, 30 x 0,203
-
23619300113 Shim 40/46 mm, 30 x 0,254Shim 40/46 mm, 30 x 0,254
-
23619300056 Shim 40/46 mm, 30 x 0,305Shim 40/46 mm, 30 x 0,305
-
23230082 Shim 40/46 mm, 32 x 0,114Shim 40/46 mm, 32 x 0,114
-
23619300137 Shim 40/46 mm, 32 x 0,152Shim 40/46 mm, 32 x 0,152
-
23619300138 Shim 40/46 mm, 32 x 0,203Shim 40/46 mm, 32 x 0,203
-
23619300059 Shim 40/46 mm, 32 x 0,254Shim 40/46 mm, 32 x 0,254
-
23619300022 Shim 40/46 mm, 32 x 0,305Shim 40/46 mm, 32 x 0,305
-
23230033 Shim 40/46 mm, 34 x 0,114Shim 40/46 mm, 34 x 0,114
-
23230034 Shim 40/46 mm, 34 x 0,152Shim 40/46 mm, 34 x 0,152
-
23230035 Shim 40/46 mm, 34 x 0,203Shim 40/46 mm, 34 x 0,203
-
23230036 Shim 40/46 mm, 34 x 0,254Shim 40/46 mm, 34 x 0,254
-
23619300070 Shim 40/46 mm, 34 x 0,305Shim 40/46 mm, 34 x 0,305
-
23230037 Shim 40/46 mm, 36 x 0,114Shim 40/46 mm, 36 x 0,114
-
23619300155 Shim 40/46 mm, 36 x 0,152Shim 40/46 mm, 36 x 0,152
-
23619300142 Shim 40/46 mm, 36 x 0,203Shim 40/46 mm, 36 x 0,203
-
23503189038 Shim 40/46 mm, 36 x 0,254Shim 40/46 mm, 36 x 0,254
-
23619300105 Shim 40/46 mm, 36 x 0,305Shim 40/46 mm, 36 x 0,305
-
23230040 Shim 40/46 mm, 38 x 0,152Shim 40/46 mm, 38 x 0,152
-
23230041 Shim 40/46 mm, 38 x 0,203Shim 40/46 mm, 38 x 0,203
-
23230042 Shim 40/46 mm, 38 x 0,254Shim 40/46 mm, 38 x 0,254
-
23619300106 Shim 40/46 mm, 38 x 0,305Shim 40/46 mm, 38 x 0,305
-
23619300157 Shim 40/46 mm, 40 x 0,114Shim 40/46 mm, 40 x 0,114
