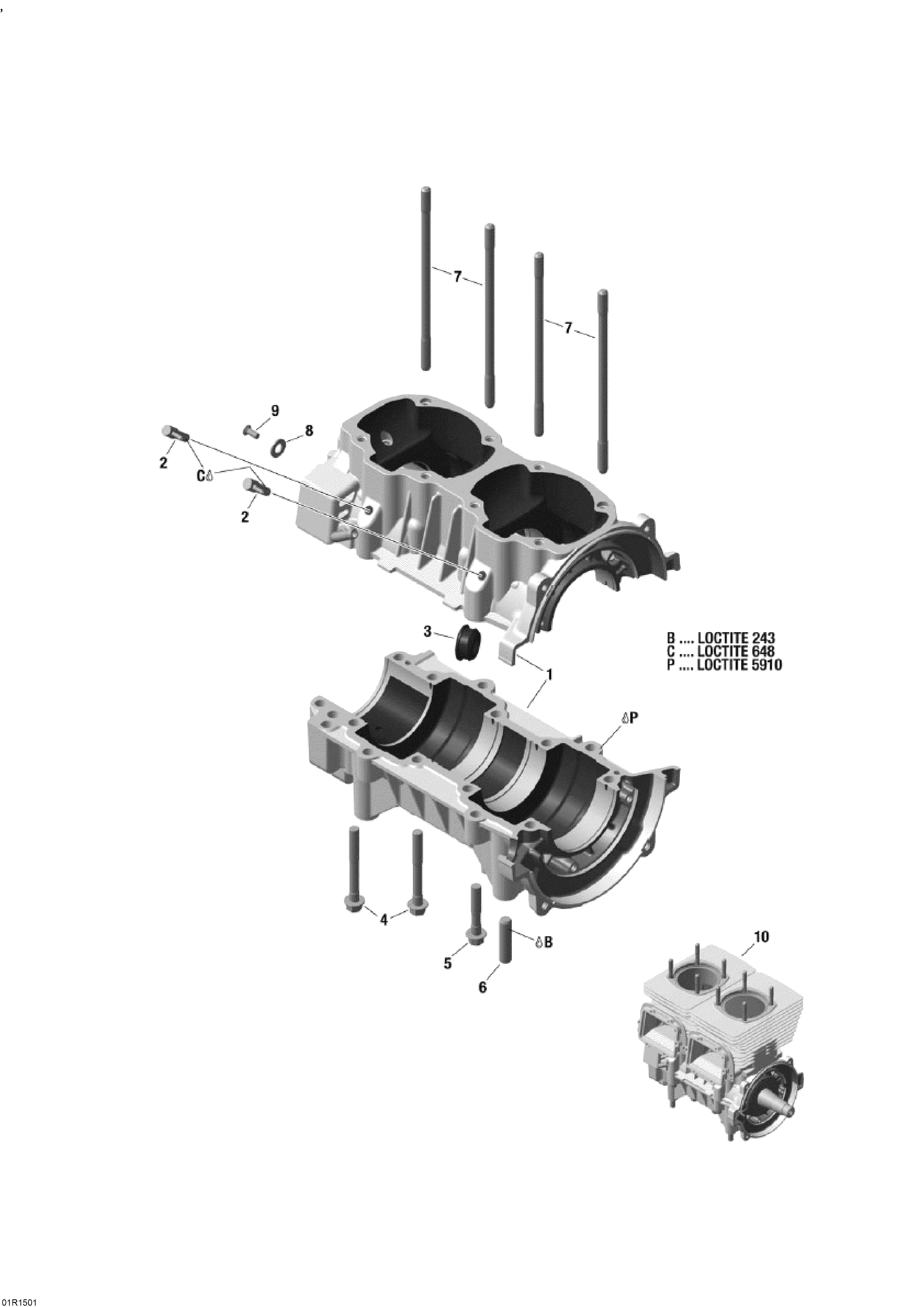

01- Crankcase для BRP Lynx 59 YETI 550 - 2015
-
№АртикулНазвание
-
1420890237 Crankcase Ass'y. Includes 1 To 4Crankcase Ass'y. Includes 1 To 4
-
2420956510 Checkvalve Ass'yCheckvalve Ass'y
-
3420860962 Cable GrommetCable Grommet
-
4420640951 Collar Hex. Screw M8 x 68,5. Tightening Torque 26-28 NmCollar Hex. Screw M8 x 68,5. Tightening Torque 26-28 Nm
-
5420640431 Collar Hex. Screw M8 x 45. Tightening Torque 26-28 NmCollar Hex. Screw M8 x 45. Tightening Torque 26-28 Nm
-
6420840266 Stud M10 x 45. Tightening Torque 10-12 NmStud M10 x 45. Tightening Torque 10-12 Nm
-
7420840556 Stud Screw M8 x 173,5. Tightening Torque 8-10 NmStud Screw M8 x 173,5. Tightening Torque 8-10 Nm
-
8420250311 WasherWasher
-
9420640896 Taptite Flat Head Screw M5 x 12. Tightening Torque 6-7 NmTaptite Flat Head Screw M5 x 12. Tightening Torque 6-7 Nm
-
10300055208 Short Block EngineShort Block Engine
-
B293800060 Loctite 243Loctite 243
-
C619600012 Loctite 609Loctite 609
-
P293800081 Loctite 5910Loctite 5910
