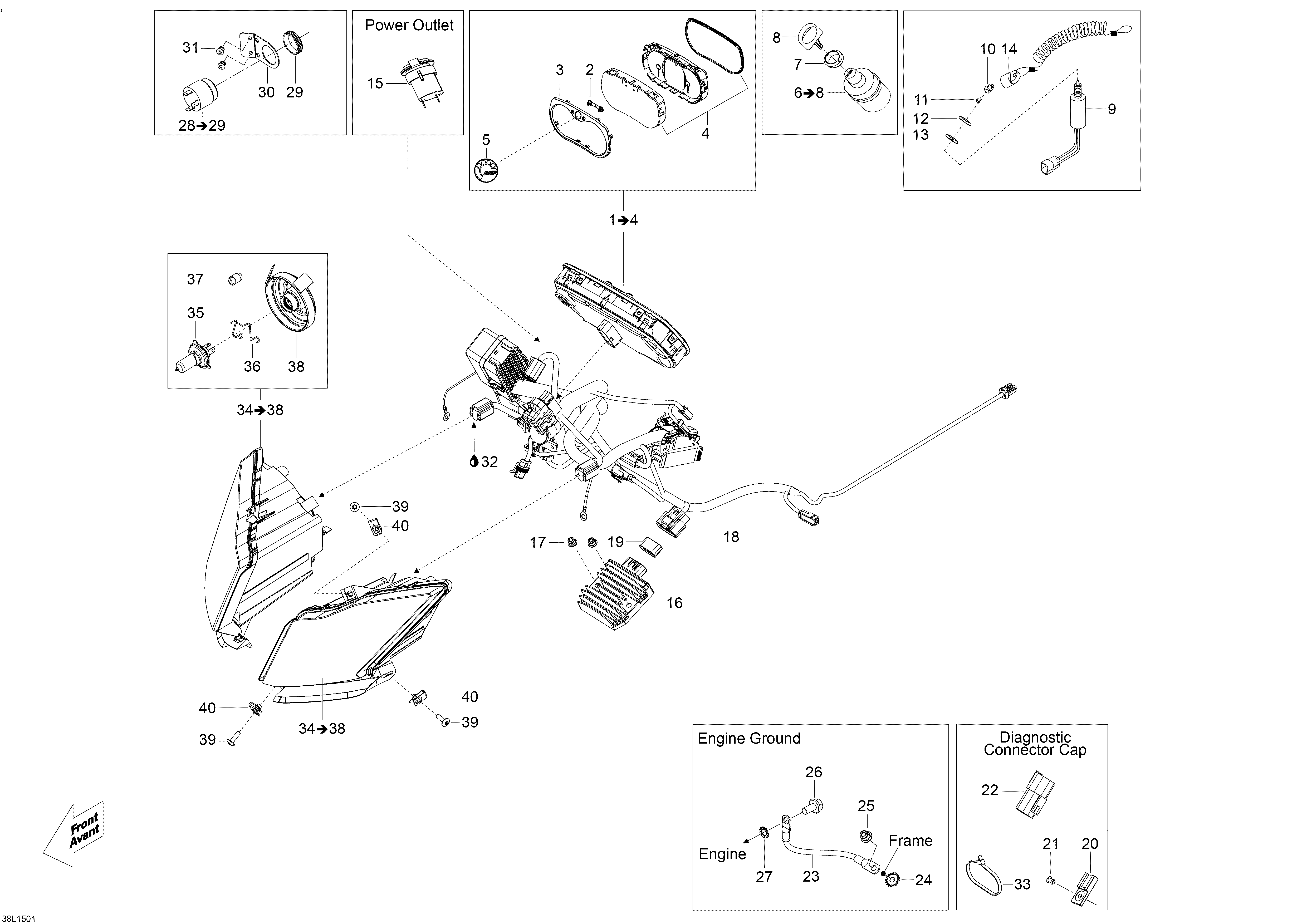

10- Electrical System для BRP Lynx 59 YETI 550 - 2015
-
№АртикулНазвание
-
1515177598 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5219902677 BRP LogoBRP Logo
-
6515177063 Ignition Switch. Includes 6 To 8Ignition Switch. Includes 6 To 8
-
9515175653 Brake SwitchBrake Switch
-
10515145900 Switch NutSwitch Nut
-
11570151100 Plunger CapPlunger Cap
-
12250200084 Flat WasherFlat Washer
-
13732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
14515176463 Cap Ass'yCap Ass'y
-
15710001248 DC Power OutletDC Power Outlet
-
16515176699 RegulatorRegulator
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18515177505 Main HarnessMain Harness
-
19515176681 Female LockFemale Lock
-
20270000141 ClipClip
-
21390402200 Pop Rivet 3/16Pop Rivet 3/16
-
22515176234 Female Terminal HousingFemale Terminal Housing
-
23515176745 Ground WireGround Wire
-
24250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
25233261414 Flange Elastic Nut M6Flange Elastic Nut M6
-
26207581646 Hex. Screw M8Hex. Screw M8
-
27234481608 Lock Washer Serrated M8Lock Washer Serrated M8
-
28414792102 Horn-AC-BT. Includes 28 To 29Horn-AC-BT. Includes 28 To 29
-
29414805101 Plastic NutPlastic Nut
-
30515176822 Reverse Buzz HolderReverse Buzz Holder
-
31250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
32619600021 Loctite 8151 (Dielectric Grease), 75mlLoctite 8151 (Dielectric Grease), 75ml
-
33293750001 Tie-Rap 94mmTie-Rap 94mm
-
33293750002 Tie-Rap 142mmTie-Rap 142mm
-
33414115200 Tie-Rap 180mmTie-Rap 180mm
-
33293750008 Tie-Rap 368mmTie-Rap 368mm
-
34517304194 RH Headlamp. Includes 34 To 38RH Headlamp. Includes 34 To 38
-
34517304195 LH Headlamp. Includes 34 To 38LH Headlamp. Includes 34 To 38
-
35515176274 Halogen Bulb, 60/55W, 12VHalogen Bulb, 60/55W, 12V
-
37515176498 CapCap
-
38515176499 CoverCover
-
39250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
40250100113 Extruded Panel Nut M6Extruded Panel Nut M6
