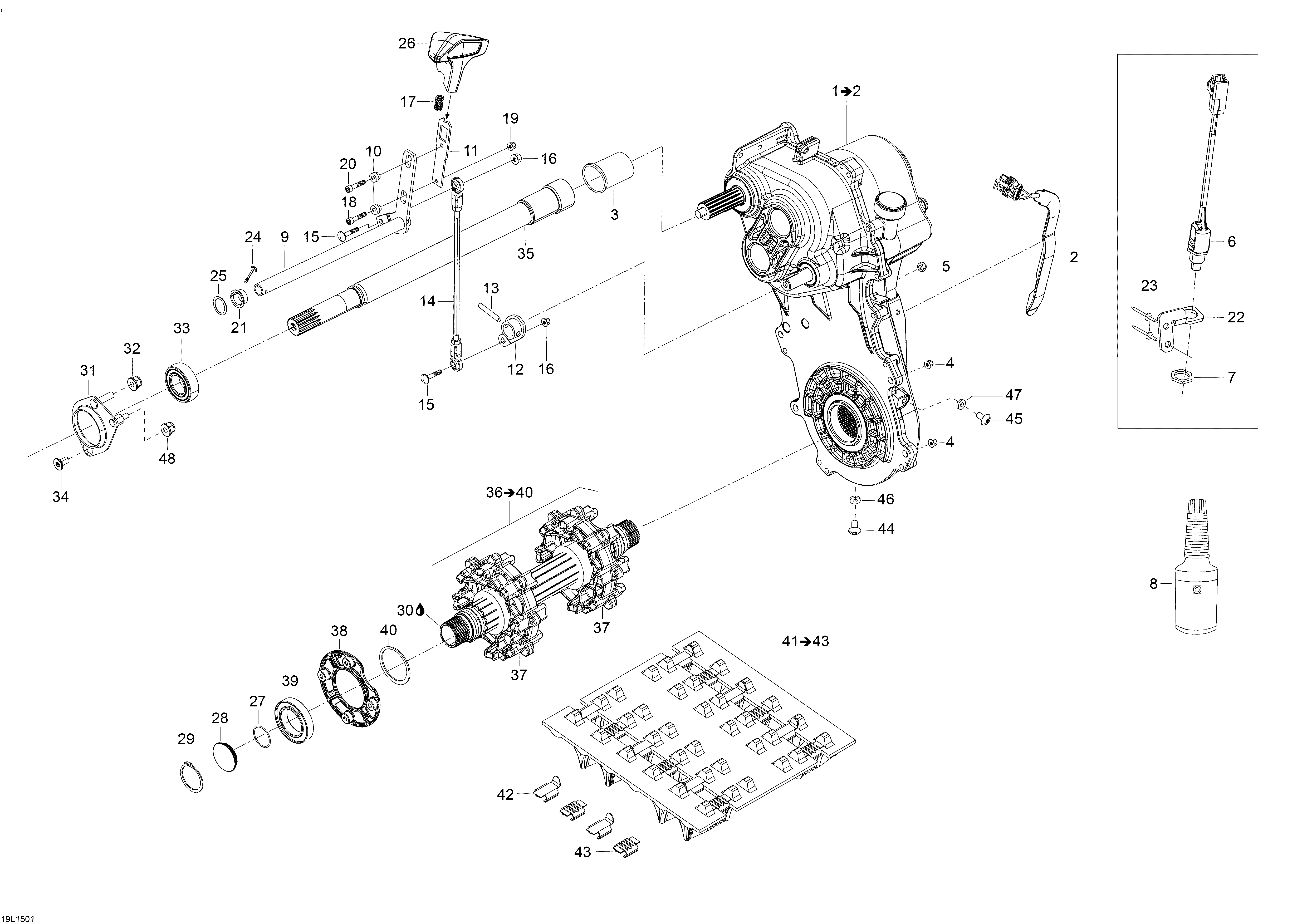

05- Drive System для BRP Lynx 59 YETI 550 - 2015
-
№АртикулНазвание
-
1619230058 Transmission Ass'y (Slow Ratio). Includes 1 To 2Transmission Ass'y (Slow Ratio). Includes 1 To 2
-
2504152896 SensorSensor
-
3504153054 Protective RubberProtective Rubber
-
4233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6515176472 SwitchSwitch
-
7250000373 NutNut
-
8619590182 Gearbox Oil (75W140)Gearbox Oil (75W140)
-
9504153288 ShifterShifter
-
10504152787 SleeveSleeve
-
11504153287 Shifter ArmShifter Arm
-
12504153280 Lever WeldLever Weld
-
1341012 Spring Pin 6 x 30Spring Pin 6 x 30
-
14504153258 Shifter RodShifter Rod
-
15250000677 Bolt Carriage M6 x 20Bolt Carriage M6 x 20
-
16232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
17504152882 SpringSpring
-
18205052544 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
19233251434 Nut M5Nut M5
-
20250000676 Forming Screw Torx M5 x 16Forming Screw Torx M5 x 16
-
21504152890 BushingBushing
-
22504152902 Sensor BracketSensor Bracket
-
23293150163 RivetRivet
-
24250400035 Cotter PinCotter Pin
-
25503189273 WasherWasher
-
26504152837 Shifter HandleShifter Handle
-
27293300122 O-RingO-Ring
-
28504152619 Magnetic CapMagnetic Cap
-
29504152572 CirclipCirclip
-
30619590193 Synthetic GreaseSynthetic Grease
-
31504153187 Bearing HousingBearing Housing
-
32233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
33293350074 Ball BearingBall Bearing
-
34235381646 Torx Screw M8 x 16Torx Screw M8 x 16
-
35504152963 Counter ShaftCounter Shaft
-
36504153208 Drive Axle Ass'y. Includes 36 To 40Drive Axle Ass'y. Includes 36 To 40
-
37504153088 RH Sprocket, 7 TeethRH Sprocket, 7 Teeth
-
37504153087 LH Sprocket, 7 TeethLH Sprocket, 7 Teeth
-
38504152949 Bearing HousingBearing Housing
-
39293350059 Ball BearingBall Bearing
-
40504153207 ShimShim
-
41504152817 Track Ass'y (500 x 3923 x 32). Includes 41 To 43Track Ass'y (500 x 3923 x 32). Includes 41 To 43
-
44619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
45619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
46615580812 Gasket RingGasket Ring
-
47619230047 Seal RingSeal Ring
-
48233261414 Elastic Flange Nut M6Elastic Flange Nut M6
