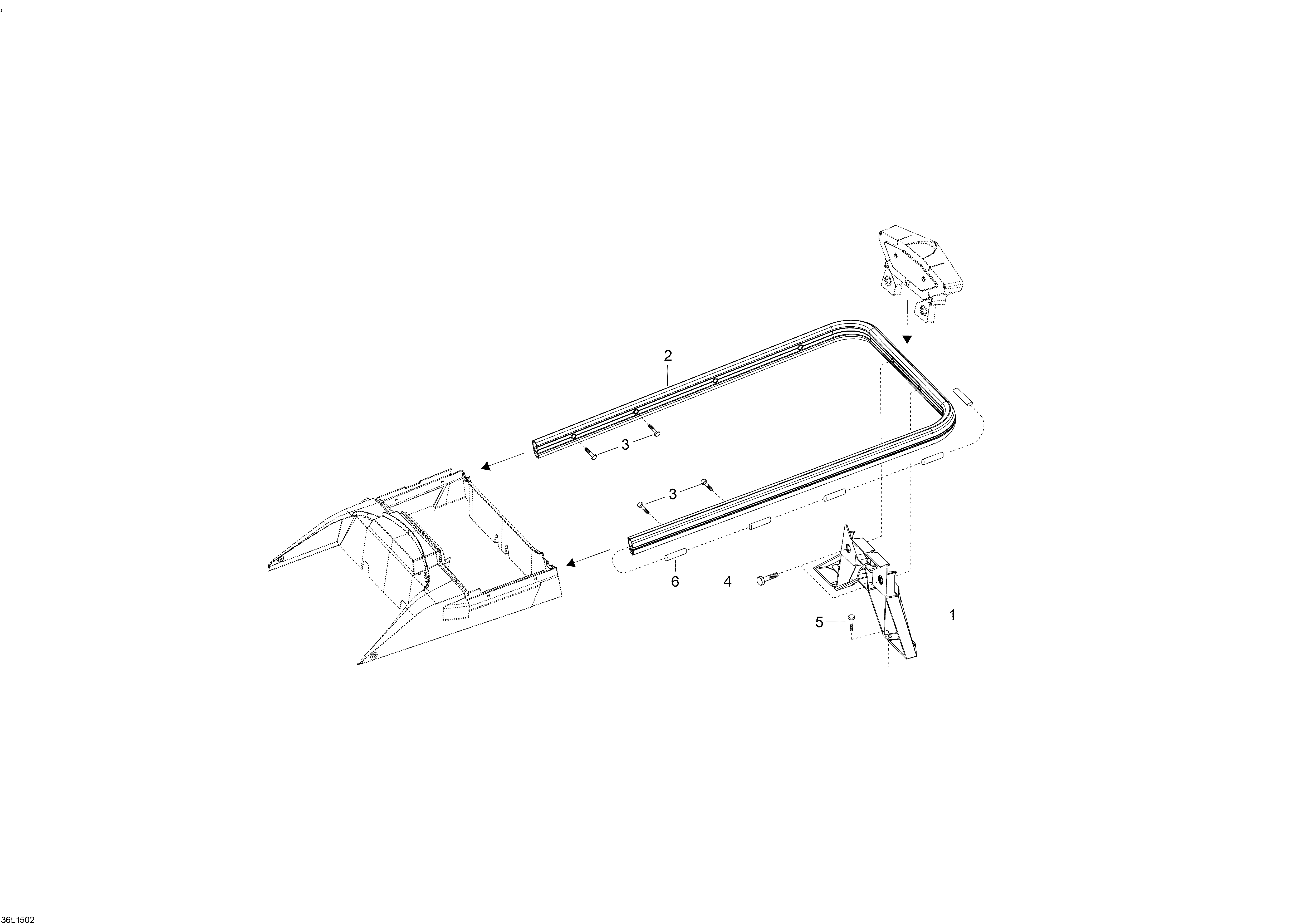

09- Cargo Rack для BRP Lynx 59 YETI 600 ACE - 2015
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000709 Black Rack BarBlack Rack Bar
-
3207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
4207663094 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
5207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
6511000657 Support HoseSupport Hose
