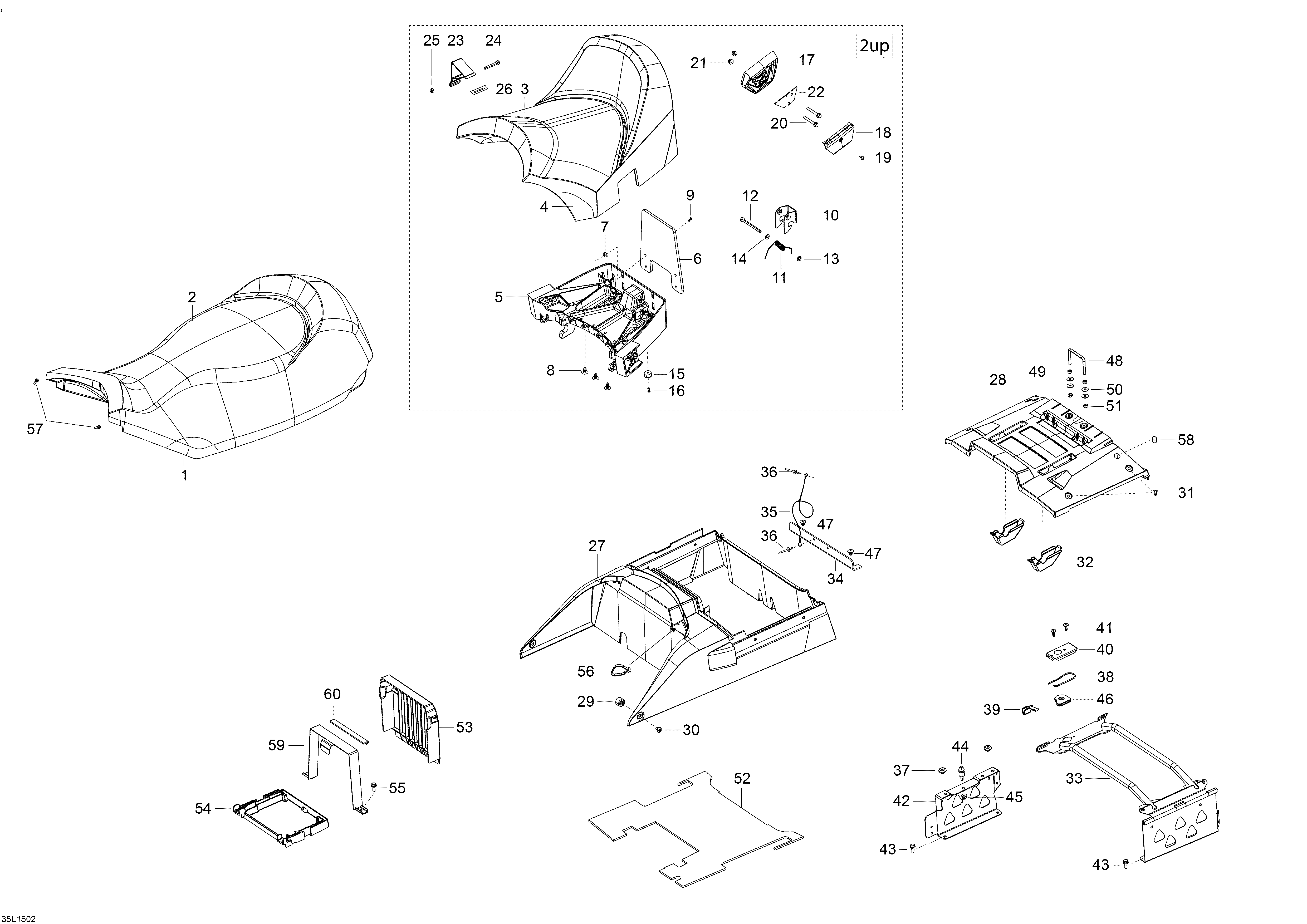

09- Seat для BRP Lynx 59 YETI 600 ACE - 2015
-
№АртикулНазвание
-
1510005807 Front Seat FoamFront Seat Foam
-
2510005722 Black Front Seat CoverBlack Front Seat Cover
-
3510005320 Black Rear Seat CoverBlack Rear Seat Cover
-
4510005811 Rear Seat FoamRear Seat Foam
-
5510004816 Seat BaseSeat Base
-
6510005330 Backrest PlateBackrest Plate
-
7234062410 Flat WasherFlat Washer
-
8414644300 DartDart
-
9293150210 RivetRivet
-
10708000144 LatchLatch
-
11708000369 SpringSpring
-
12207068044 Hex. Cap Screw M6 x 80Hex. Cap Screw M6 x 80
-
13732610072 Push NutPush Nut
-
14234061410 Flat Washer M6Flat Washer M6
-
15510006005 Stopper RubberStopper Rubber
-
16293150015 Pop Rivet 1/8Pop Rivet 1/8
-
17510005409 HandleHandle
-
18510005444 Handle CoverHandle Cover
-
19250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
20207686544 Hex. Flange Screw M8 x 65Hex. Flange Screw M8 x 65
-
21233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
22510005479 Support PlateSupport Plate
-
23510005139 Security LockSecurity Lock
-
24205064044 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
25232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
26510005480 Screen PlateScreen Plate
-
27510004874 Storage BoxStorage Box
-
28510005604 Storage Box CoverStorage Box Cover
-
29510005147 BushingBushing
-
30250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
31293150104 Pop Rivet 3/16Pop Rivet 3/16
-
32510004999 CoverCover
-
33510005714 Fastening TubeFastening Tube
-
34510005156 Cable Support PlateCable Support Plate
-
35293750070 Seat Retainer CableSeat Retainer Cable
-
36390402200 Pop Rivet 3/16Pop Rivet 3/16
-
37605452114 Rubber PlugRubber Plug
-
38269700017 Latch SpringLatch Spring
-
39510005072 PullerPuller
-
40510005698 Lock Pin CoverLock Pin Cover
-
41250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
42510005845 Locking PlateLocking Plate
-
43207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
44605452035 Lock PinLock Pin
-
45233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
46510005044 Lock Pin GuideLock Pin Guide
-
47293150104 Pop Rivet 3/16Pop Rivet 3/16
-
48510004876 Fastener PinFastener Pin
-
49250000135 Nut M6Nut M6
-
5020117 WasherWasher
-
51232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
52510005043 FoamFoam
-
53510005079 Battery CoverBattery Cover
-
54515176804 Battery SupportBattery Support
-
55207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
56605627000 Tie RapTie Rap
-
57250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
58572051500 CapCap
-
59510005250 Battery StrapBattery Strap
-
60605356094 Retainer StrapRetainer Strap
