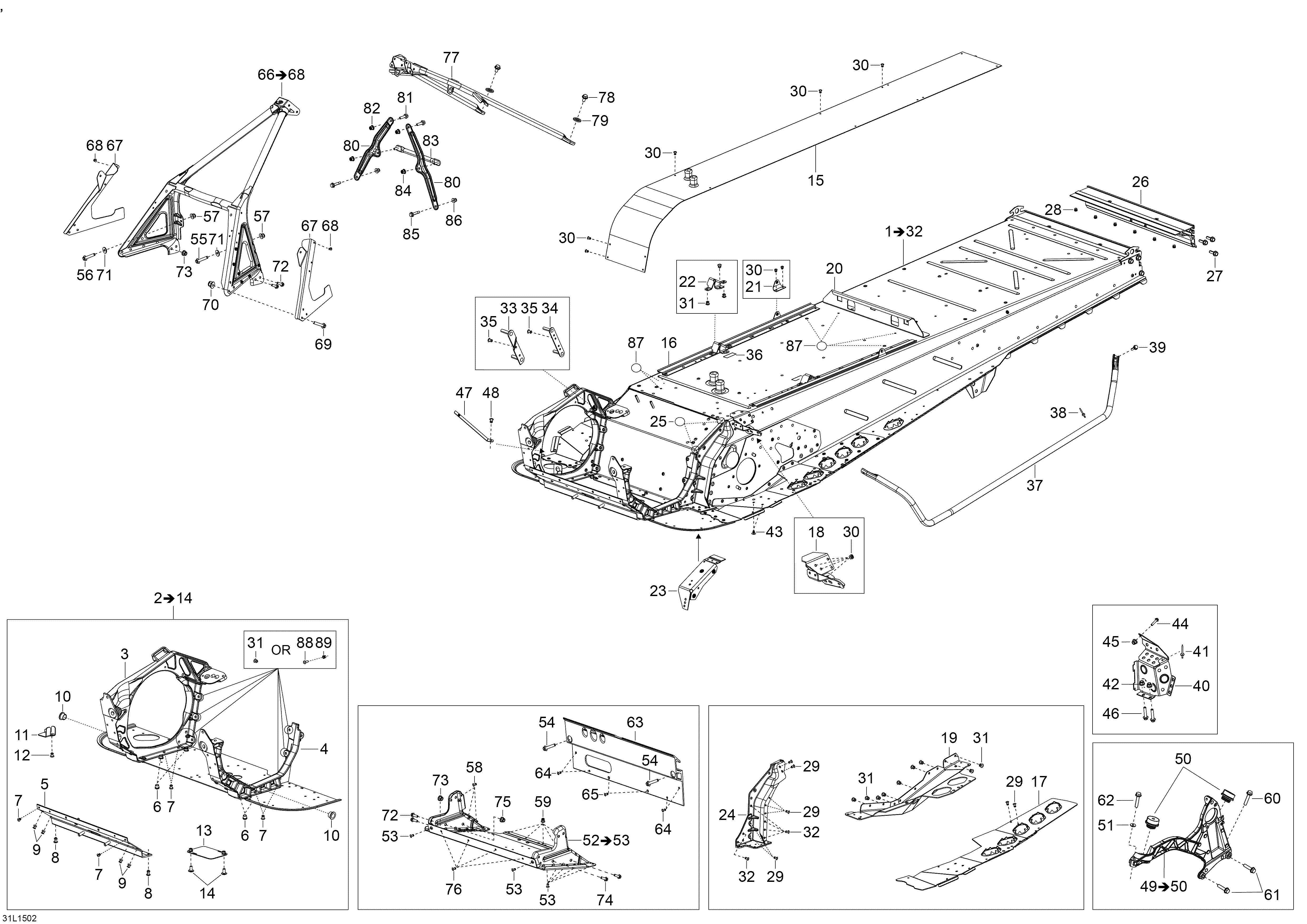

09- Frame для BRP Lynx 59 YETI 600 ACE - 2015
-
№АртикулНазвание
-
1518328199 Black Frame. Includes 1 To 32Black Frame. Includes 1 To 32
-
2518328188 Module E. Includes 2 To 14Module E. Includes 2 To 14
-
3518326328 RH MemberRH Member
-
4518326330 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut M8Clinch Nut M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 BushingBushing
-
11518327983 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13518328317 Oil PlateOil Plate
-
14250000325 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
15509000867 Tunnel RadiatorTunnel Radiator
-
16518326107 Fastening RailFastening Rail
-
17518326564 LH FootrestLH Footrest
-
17518326565 RH FootrestRH Footrest
-
18605355235 Fastening BracketFastening Bracket
-
20518325986 Battery SupportBattery Support
-
21518327457 Seat Box BracketSeat Box Bracket
-
22518326109 LH Support Tube BracketLH Support Tube Bracket
-
22518326110 RH Support Tube BracketRH Support Tube Bracket
-
23518326430 Clinch Nut PlateClinch Nut Plate
-
24518325524 LH Frame CornerLH Frame Corner
-
24518328024 RH Frame CornerRH Frame Corner
-
25518325560 Adhesive PatchAdhesive Patch
-
26518327194 Rear ProfileRear Profile
-
27207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
28293150174 RivetRivet
-
29390909100 RivetRivet
-
30390909200 RivetRivet
-
31293150119 RivetRivet
-
32293150183 RivetRivet
-
33518326123 Front Gearbox Counter PlateFront Gearbox Counter Plate
-
34518326124 Rear Gearbox Counter PlateRear Gearbox Counter Plate
-
35390402200 Pop Rivet 3/16Pop Rivet 3/16
-
36518326357 Rubber CoverRubber Cover
-
37518326963 LH Footboard Support TubeLH Footboard Support Tube
-
37518326964 RH Footboard Support TubeRH Footboard Support Tube
-
38390909100 RivetRivet
-
39207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
40518328215 Black LH Toe HookBlack LH Toe Hook
-
40518328216 Black RH Toe HookBlack RH Toe Hook
-
41390909200 RivetRivet
-
42605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
43414644300 DartDart
-
44207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
45233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
46250000223 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
47514054828 Spring BracketSpring Bracket
-
48390909200 RivetRivet
-
49518327535 LH Brace Ass'y. Includes 49 To 50LH Brace Ass'y. Includes 49 To 50
-
50512060295 Rubber MountRubber Mount
-
51234281474 Washer-Spring ConicalWasher-Spring Conical
-
52518326213 Module S Cross Member. Includes 52 To 53Module S Cross Member. Includes 52 To 53
-
53390909200 RivetRivet
-
54210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
55207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
56207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
57233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
58390909100 RivetRivet
-
59390909200 RivetRivet
-
60207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
61207583586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
62207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
63518326140 Engine SupportEngine Support
-
64390909100 RivetRivet
-
65293150119 RivetRivet
-
66518326754 Front Member Ass'y. Includes 66 To 68Front Member Ass'y. Includes 66 To 68
-
67502007077 LH Bumper FastenerLH Bumper Fastener
-
67502007078 RH Bumper FastenerRH Bumper Fastener
-
68390909200 RivetRivet
-
69207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
70233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
71224061201 Flat WasherFlat Washer
-
72207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
73233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
74207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
75233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
76390909200 RivetRivet
-
77518326103 Upper Support TubeUpper Support Tube
-
78207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
80518326848 Upper ColumnUpper Column
-
81207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
82233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
83518326355 Upper ColumnUpper Column
-
84233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
85207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
86233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
87518325560 Adhesive PatchAdhesive Patch
-
88207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
89233261414 Elastic Flange Nut M6Elastic Flange Nut M6
