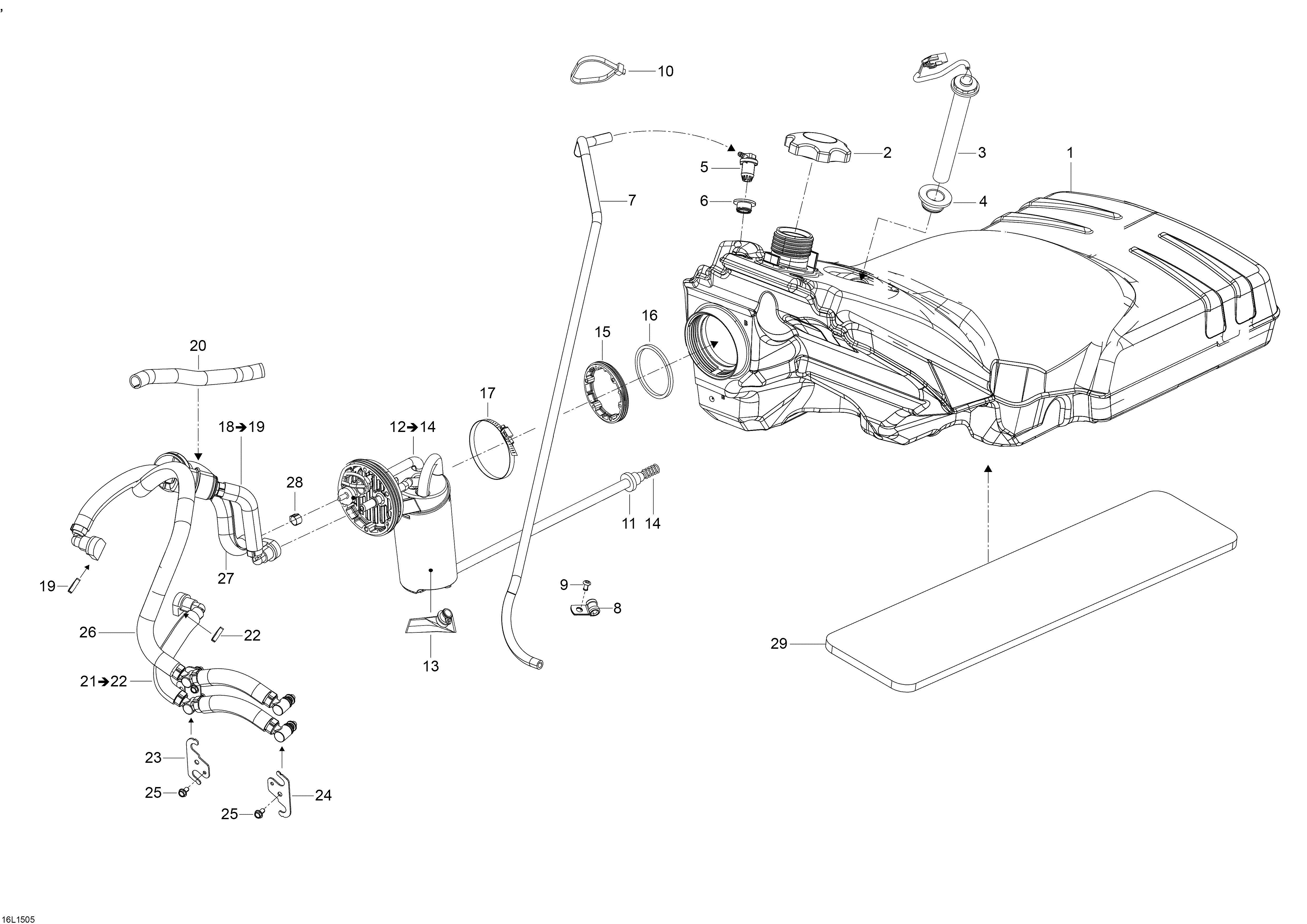

02- Fuel System для BRP Lynx 69 YETI Army 600 E-TEC - 2015
-
№АртикулНазвание
-
1513033635 Fuel TankFuel Tank
-
2513033723 CapCap
-
3513033538 Fuel SensorFuel Sensor
-
4293720058 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 HoseHose
-
8715900250 ClampClamp
-
9390909200 RivetRivet
-
10414115200 Tie Rap 180mmTie Rap 180mm
-
11293300184 O RingO Ring
-
12513033643 Fuel Pump Ass'y. Includes 12 To 14Fuel Pump Ass'y. Includes 12 To 14
-
13415129451 Fuel Filter (In Tank, Fuel Pump)Fuel Filter (In Tank, Fuel Pump)
-
14414872100 Fuel Filter (In Tank, Fuel Line)Fuel Filter (In Tank, Fuel Line)
-
15513033180 RingRing
-
16513033334 GasketGasket
-
17513033628 ClampClamp
-
18513033589 Hose Ass'y (Incl. Fuel Filter). Includes 18 To 19Hose Ass'y (Incl. Fuel Filter). Includes 18 To 19
-
19513033135 Locking TabLocking Tab
-
20415080000 Protector TubeProtector Tube
-
21513033594 Hose Ass'y Lower. Includes 21 To 22Hose Ass'y Lower. Includes 21 To 22
-
22513033135 Locking TabLocking Tab
-
23513033542 Bracket RHBracket RH
-
24513033593 Bracket LHBracket LH
-
25207551044 Screw M5 x 10Screw M5 x 10
-
26513033631 Hose Ass'y Upper (Incl. Press. Regulator)Hose Ass'y Upper (Incl. Press. Regulator)
-
27513033544 Formed HoseFormed Hose
-
28293650047 Crimp ClampCrimp Clamp
-
29513033640 Insulate FoamInsulate Foam
