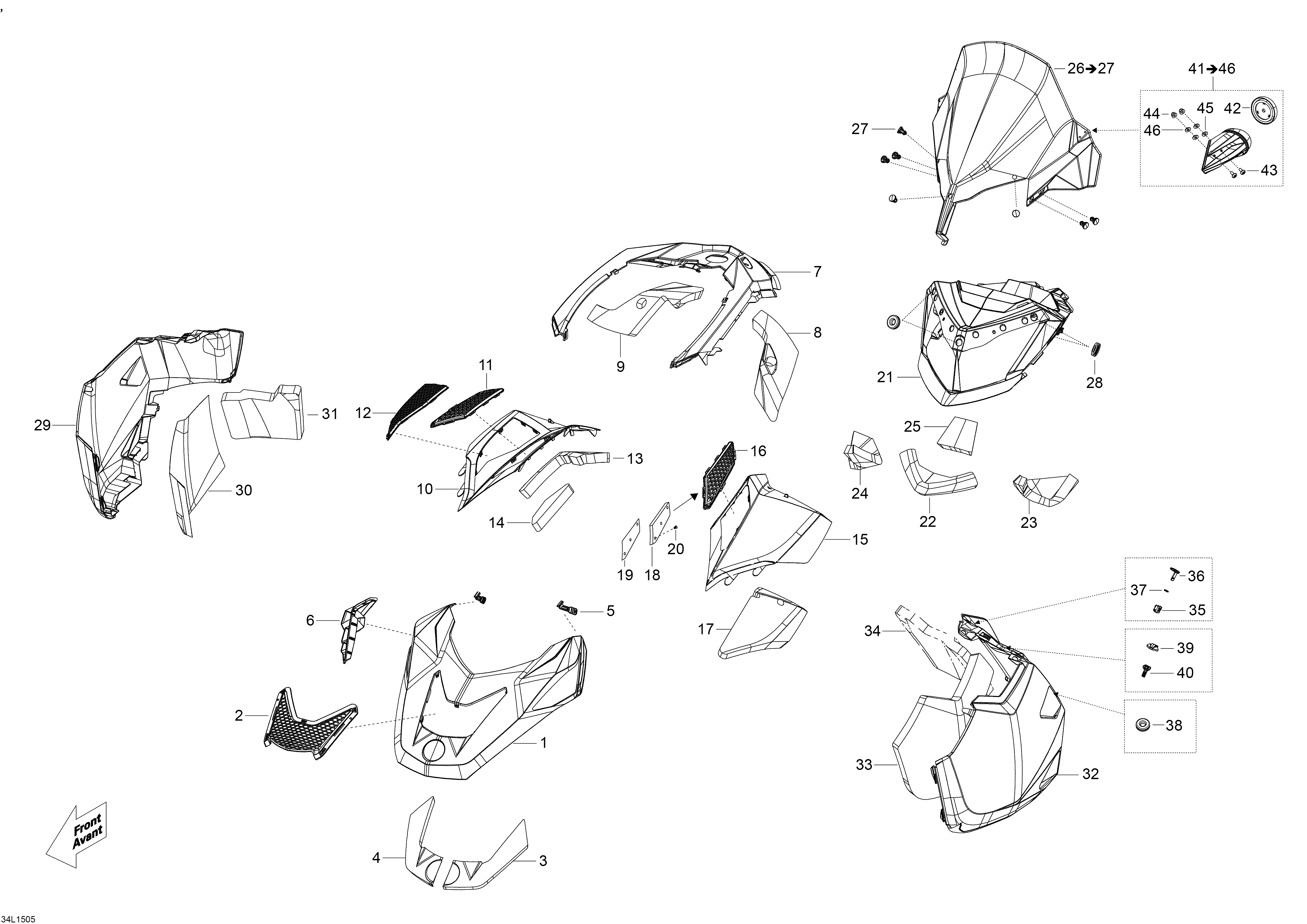

09- Hood And Windshield для BRP Lynx 69 YETI Army 600 E-TEC - 2015
-
№АртикулНазвание
-
1517305440 Gray HoodGray Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 LatchLatch
-
6517304155 Scoop GrillScoop Grill
-
7517305220 Black ConsoleBlack Console
-
8517305644 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517305446 Gray RH Side Access PanelGray RH Side Access Panel
-
11517304015 RH Access Panel GrillRH Access Panel Grill
-
12517304016 RH Access Panel Grill LowerRH Access Panel Grill Lower
-
13517304311 InsulatorInsulator
-
14517304312 InsulatorInsulator
-
15517305450 Gray LH Side Access PanelGray LH Side Access Panel
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304313 InsulatorInsulator
-
18517305311 InsulatorInsulator
-
19502007312 Grill PlateGrill Plate
-
20414644300 DartDart
-
21517304272 Indicator SupportIndicator Support
-
22517304314 InsulatorInsulator
-
23517304315 InsulatorInsulator
-
24517304316 InsulatorInsulator
-
25517304319 InsulatorInsulator
-
26860201000 Windshield Ass'y. Includes 26 To 27Windshield Ass'y. Includes 26 To 27
-
27517304744 KnobKnob
-
28517303756 GrommetGrommet
-
29517304328 RH Side PanelRH Side Panel
-
30517304709 RH FoamRH Foam
-
31517304310 RH Foam RearRH Foam Rear
-
32517304329 LH Side PanelLH Side Panel
-
33517304707 LH FoamLH Foam
-
34517304309 LH Foam RearLH Foam Rear
-
35517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
36517304296 Quarter-Turn HandleQuarter-Turn Handle
-
37517304538 Locking PlateLocking Plate
-
38517303756 GrommetGrommet
-
39517304075 End PieceEnd Piece
-
40517304573 LatchLatch
-
41517305787 RH/LH Mirror Ass'y. Includes 41 To 46RH/LH Mirror Ass'y. Includes 41 To 46
-
43250000721 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
44232361493 Nut Hex. Domed M6Nut Hex. Domed M6
-
45250200024 Rubber Washer M5Rubber Washer M5
-
4620117 WasherWasher
