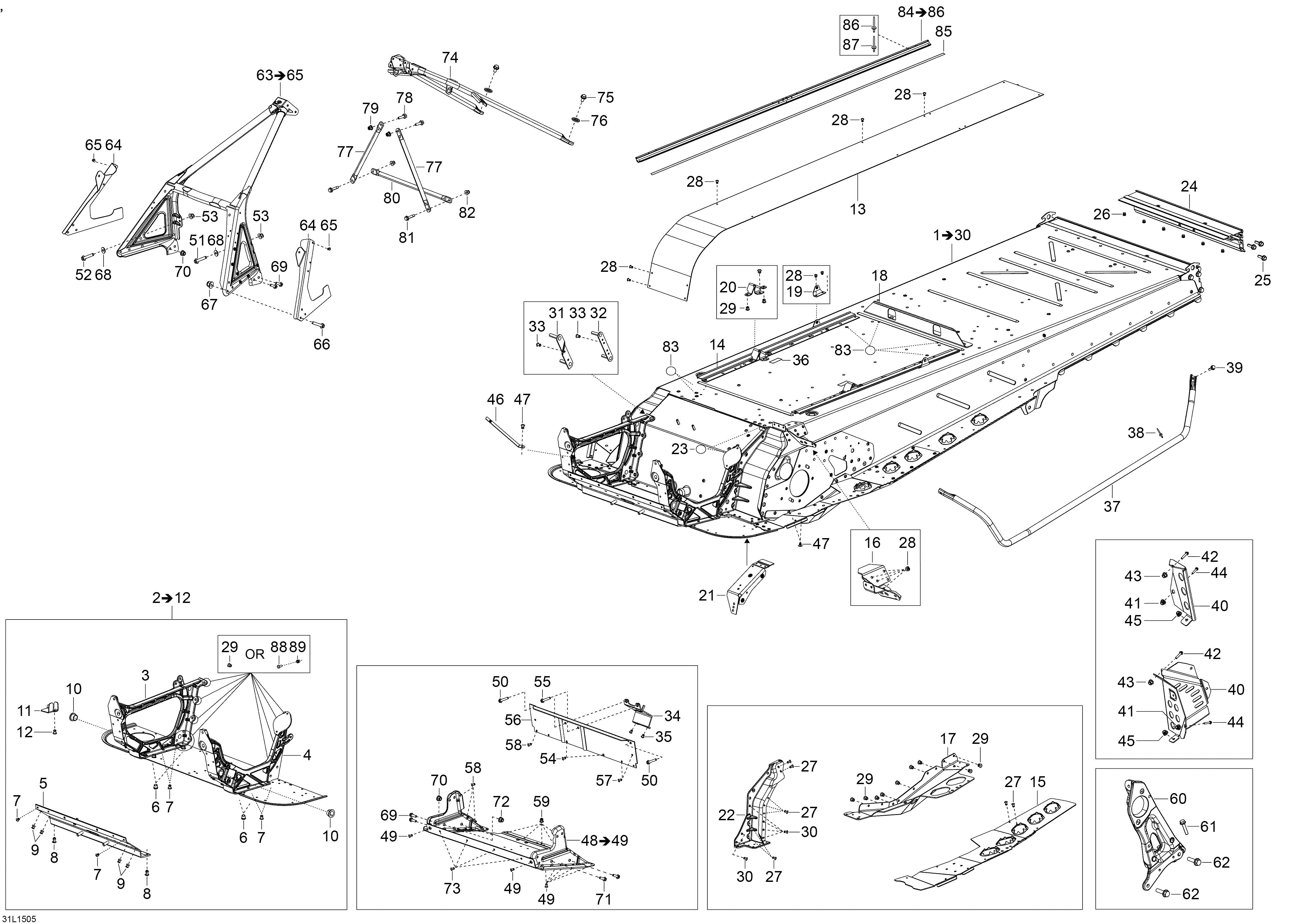

09- Frame для BRP Lynx 69 YETI Army 600 E-TEC - 2015
-
№АртикулНазвание
-
1518328200 Gray Frame. Includes 1 To 30Gray Frame. Includes 1 To 30
-
2518328186 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut M8Clinch Nut M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 CushionCushion
-
11518328194 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13509000626 RadiatorRadiator
-
14518326107 Fastening RailFastening Rail
-
15518328358 LH FootrestLH Footrest
-
15518328359 RH FootrestRH Footrest
-
16518327884 Fastening BracketFastening Bracket
-
18518327003 Battery SupportBattery Support
-
19518327457 Seat Box BracketSeat Box Bracket
-
20518326109 LH Support Tube BracketLH Support Tube Bracket
-
20518326110 RH Support Tube BracketRH Support Tube Bracket
-
21518328096 Clinch Nut PlateClinch Nut Plate
-
22518325643 LH Frame CornerLH Frame Corner
-
22518325644 RH Frame CornerRH Frame Corner
-
23518325560 Adhesive PatchAdhesive Patch
-
24518325645 Rear ProfileRear Profile
-
25207582586 Screw M8 x 25Screw M8 x 25
-
26293150174 RivetRivet
-
27390909100 RivetRivet
-
28390909200 RivetRivet
-
29293150119 RivetRivet
-
30293150183 RivetRivet
-
31518326123 Front Gearbox Counter PlateFront Gearbox Counter Plate
-
32518326124 Rear Gearbox Counter PlateRear Gearbox Counter Plate
-
33390402200 Pop Rivet 3/16Pop Rivet 3/16
-
34518325943 MAG SupportMAG Support
-
35293150119 RivetRivet
-
36518326357 Rubber CoverRubber Cover
-
37518327595 LH Footrest Support TubeLH Footrest Support Tube
-
37518327596 RH Footrest Support TubeRH Footrest Support Tube
-
38390909100 RivetRivet
-
39207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
40518328568 Black LH Toe HookBlack LH Toe Hook
-
40518328571 Black RH Toe HookBlack RH Toe Hook
-
41605636003 Clinch Nut M6Clinch Nut M6
-
42207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
43233261414 Nut M6Nut M6
-
44250000223 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
45233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
46514054846 Spring BracketSpring Bracket
-
47390909200 RivetRivet
-
48518326213 Cross Member. Includes 48 To 49Cross Member. Includes 48 To 49
-
49390909200 RivetRivet
-
50210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
51207662544 Screw M6 x 25Screw M6 x 25
-
52207663034 Screw M6 x 30Screw M6 x 30
-
53233261414 Nut M6Nut M6
-
54293150119 RivetRivet
-
55207661644 Screw M6 x 16Screw M6 x 16
-
56518325620 Support PlateSupport Plate
-
57390909100 RivetRivet
-
58293150163 RivetRivet
-
59390909200 RivetRivet
-
60518328434 Pulley SupportPulley Support
-
61207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
62207583086 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
63518326754 Front Member Ass'y. Includes 63 To 65Front Member Ass'y. Includes 63 To 65
-
64502007077 LH Bumper FastenerLH Bumper Fastener
-
64502007078 RH Bumper FastenerRH Bumper Fastener
-
65390909200 RivetRivet
-
66207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
67233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
68224061201 Flat WasherFlat Washer
-
69207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
70233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
71207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
72233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
73390909200 RivetRivet
-
74518326103 Upper Support TubeUpper Support Tube
-
75207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
77518325114 SupportSupport
-
78207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
79233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
80518325115 Upper ColumnUpper Column
-
81207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
82233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
83518325560 Adhesive PatchAdhesive Patch
-
84860200737 Radiator Protector. Includes 84 To 86Radiator Protector. Includes 84 To 86
-
8636108 RivetRivet
-
87390909200 RivetRivet
-
88207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
89233261414 Elastic Flange Nut M6Elastic Flange Nut M6
