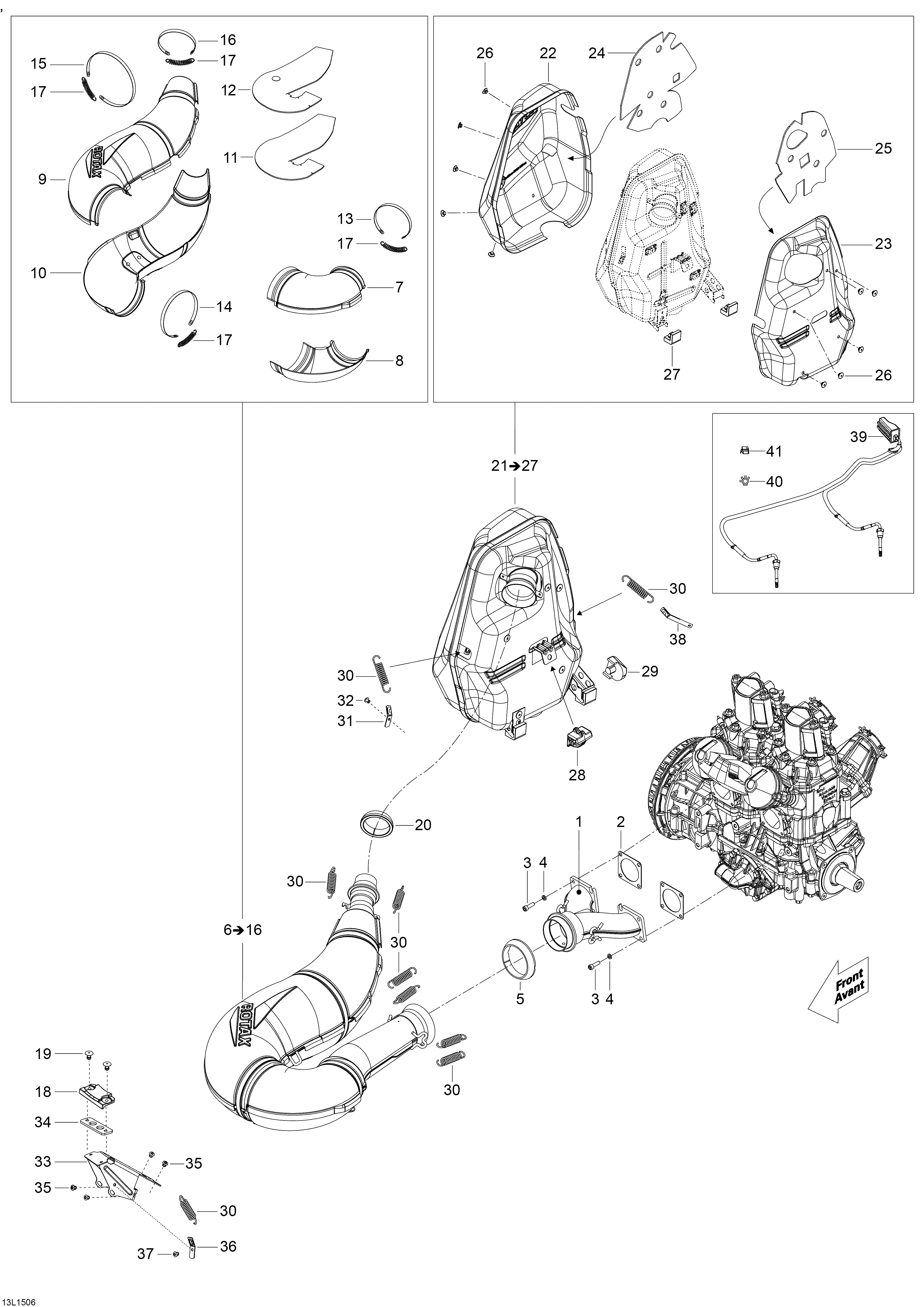

01- Exhaust System для BRP Lynx 69 YETI Army 800R E-TEC - 2015
-
№АртикулНазвание
-
1420673373 Exhaust ManifoldExhaust Manifold
-
2420430482 GasketGasket
-
3250000414 Socket Screw M8 x 22, Scotch GripSocket Screw M8 x 22, Scotch Grip
-
4250200111 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514055019 Tuned Pipe Ass'y. Includes 6 To 16Tuned Pipe Ass'y. Includes 6 To 16
-
7514054992 Front Upper EnveloppeFront Upper Enveloppe
-
8514054993 Front Lower EnveloppeFront Lower Enveloppe
-
9514055067 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
12514054553 Insulating WoolInsulating Wool
-
13514054408 Retaining StrapRetaining Strap
-
14514054409 Retaining StrapRetaining Strap
-
15514054410 Retaining StrapRetaining Strap
-
16514053499 Retaining StrapRetaining Strap
-
17514053643 SpringSpring
-
18514054275 BumperBumper
-
19293150104 Pop Rivet 3/16Pop Rivet 3/16
-
20514053812 Exhaust GasketExhaust Gasket
-
21514055023 Muffler Ass'y. Includes 21 To 27Muffler Ass'y. Includes 21 To 27
-
22514054986 RH DeflectorRH Deflector
-
23514055029 LH DeflectorLH Deflector
-
24514054711 RH Insulating WoolRH Insulating Wool
-
25514054299 LH Insulating WoolLH Insulating Wool
-
26390910000 Pop Rivet 3/16Pop Rivet 3/16
-
27514054529 Lower StopperLower Stopper
-
28514054606 Upper StopperUpper Stopper
-
29514055070 Rubber BumberRubber Bumber
-
30415107100 SpringSpring
-
31514054974 Spring BracketSpring Bracket
-
32390402200 Pop Rivet 3/16Pop Rivet 3/16
-
33514054767 Support MufflerSupport Muffler
-
34514054806 Riser PlateRiser Plate
-
35293150096 RivetRivet
-
36514053393 Spring BracketSpring Bracket
-
37390402200 Pop Rivet 3/16Pop Rivet 3/16
-
38514054846 Spring BracketSpring Bracket
-
39515177758 ModuleModule
-
40514055100 LockLock
-
41414227300 Spring ClipSpring Clip
