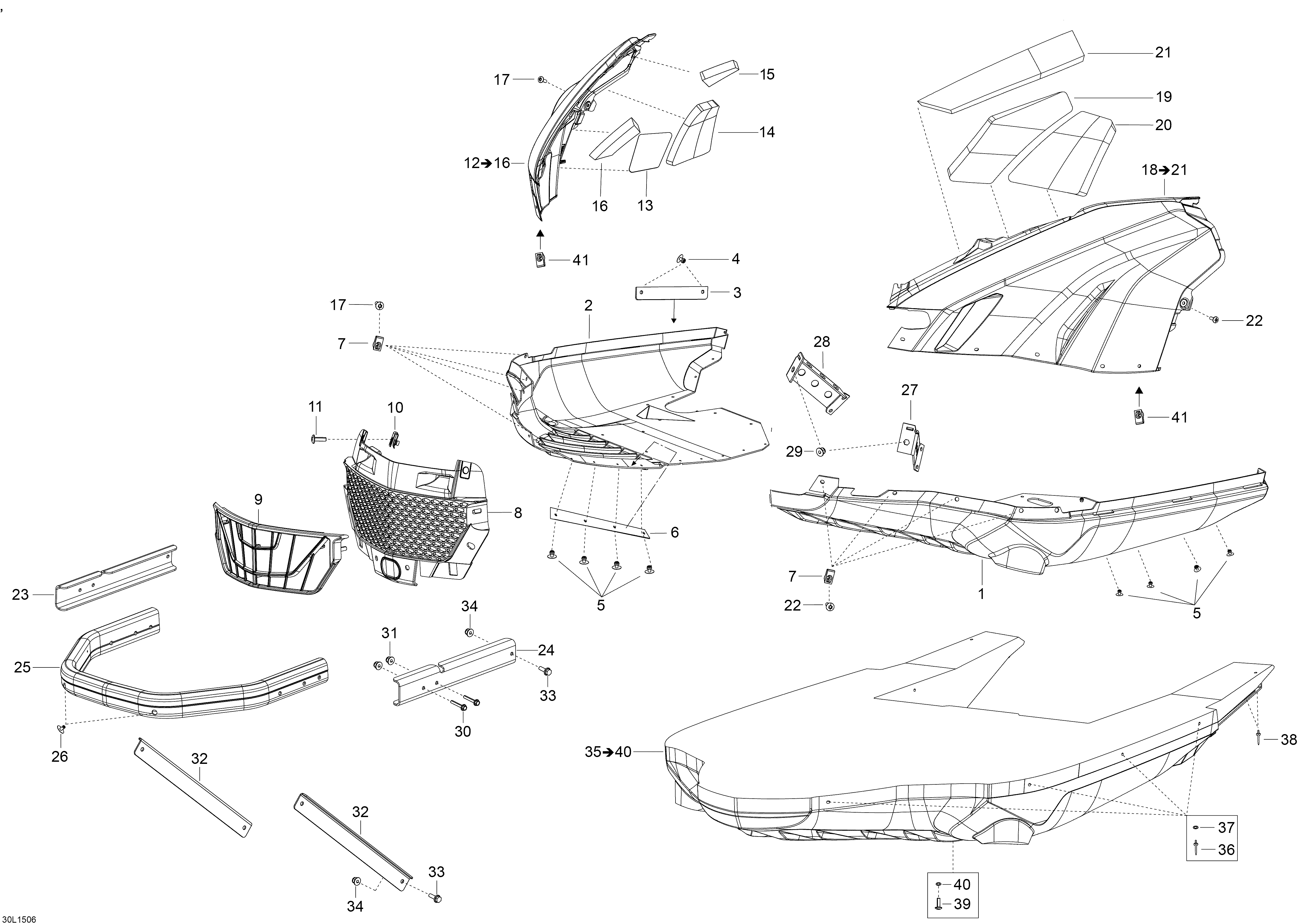

09- Bottom Pan для BRP Lynx 69 YETI Army 800R E-TEC - 2015
-
№АртикулНазвание
-
1502007383 Black LH Lower Bottom PanBlack LH Lower Bottom Pan
-
2502007384 Black RH Lower Bottom PanBlack RH Lower Bottom Pan
-
3502007255 Heat Insulation PlateHeat Insulation Plate
-
4293150211 RivetRivet
-
5293150104 Pop Rivet 3/16Pop Rivet 3/16
-
6502007226 Support PlateSupport Plate
-
7250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
8502007140 Front GrillFront Grill
-
9502007393 Front Grill With MeshFront Grill With Mesh
-
10250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
11250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
12502007292 Black RH Bottom Pan Ass'y. Includes 12 To 16Black RH Bottom Pan Ass'y. Includes 12 To 16
-
13502007133 InsulatorInsulator
-
14502007132 InsulatorInsulator
-
15502007008 InsulatorInsulator
-
16502007009 InsulatorInsulator
-
17250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
18502007294 Black LH Bottom Pan Ass'y. Includes 18 To 21Black LH Bottom Pan Ass'y. Includes 18 To 21
-
19502007088 InsulatorInsulator
-
20502007131 InsulatorInsulator
-
21502007185 InsulatorInsulator
-
22250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
23502007379 RH Bumper SupportRH Bumper Support
-
24502007380 LH Bumper SupportLH Bumper Support
-
25502007450 Black BumperBlack Bumper
-
26293730047 DartDart
-
27502007137 LH Bottom Pan FastenerLH Bottom Pan Fastener
-
28502007138 RH Bottom Pan FastenerRH Bottom Pan Fastener
-
29605636003 Clinch Nut M6Clinch Nut M6
-
30207664044 Hex. Flange Screw M6 x 40Hex. Flange Screw M6 x 40
-
31233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
32502007382 Bumper Support SWTBumper Support SWT
-
33207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
34233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
35860200691 Skid Plate Kit. Includes 35 To 40Skid Plate Kit. Includes 35 To 40
-
36293150108 Pop Rivet 3/16Pop Rivet 3/16
-
37250200025 WasherWasher
-
38605636007 RivetRivet
-
39250000248 Pan HD Torx Screw M8 x 25Pan HD Torx Screw M8 x 25
-
40234082410 Flat WasherFlat Washer
-
41250100113 Extruded Panel Nut M6Extruded Panel Nut M6
