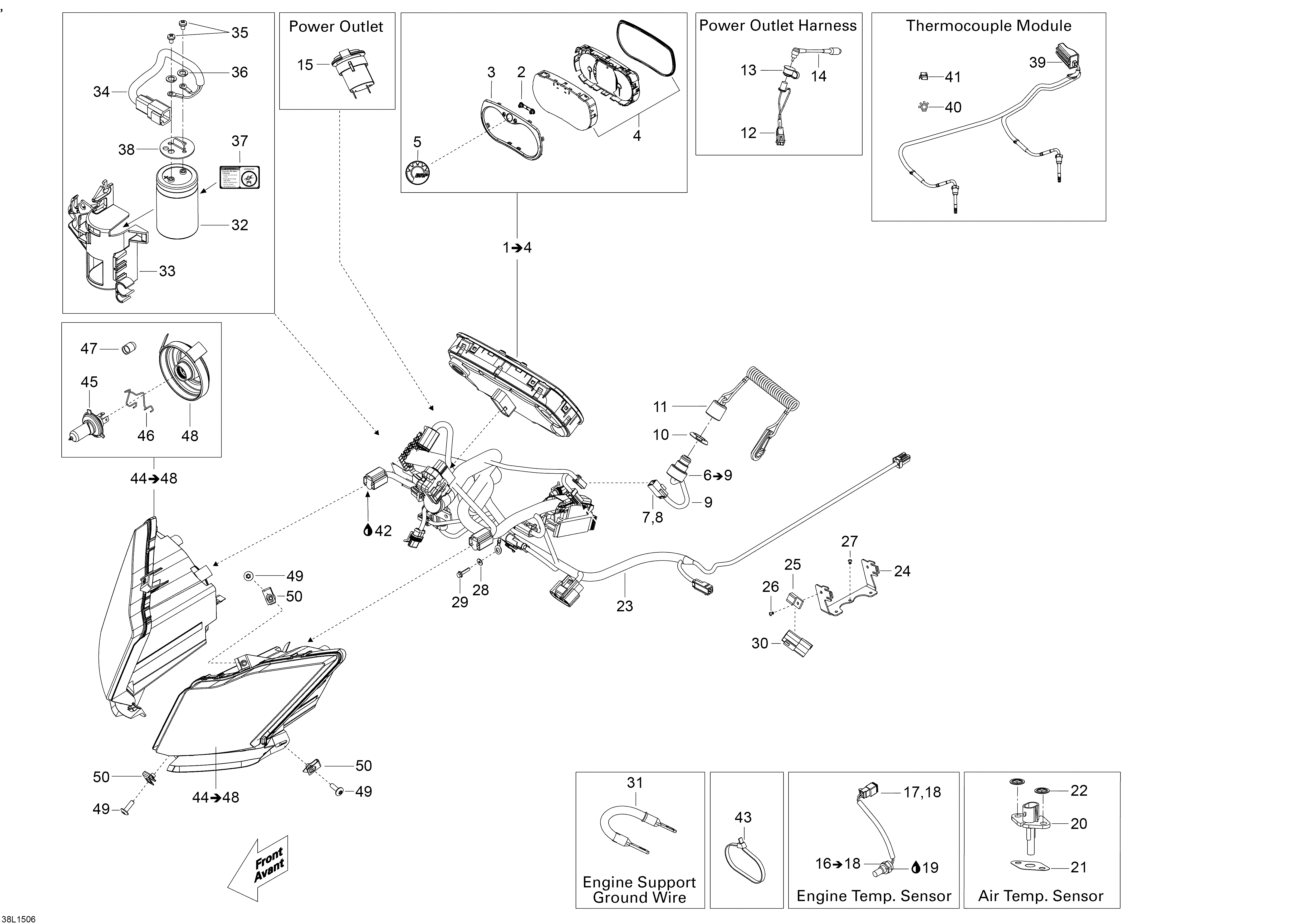

10- Electrical System для BRP Lynx 69 YETI Army 800R E-TEC - 2015
-
№АртикулНазвание
-
1515177855 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5219902677 BRP LogoBRP Logo
-
6515177249 Dess Switch. Includes 6 To 9Dess Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12mmTubing 12mm
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515178002 DESS CapDESS Cap
-
12515177837 Power Outlet HarnessPower Outlet Harness
-
13572103300 CapCap
-
14515175851 ExtensionExtension
-
15710001248 DC Power OutletDC Power Outlet
-
16515177813 Temperature Sensor. Includes 16 To 18Temperature Sensor. Includes 16 To 18
-
17515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
18278000632 Female TerminalFemale Terminal
-
20515176366 Air Temperature SensorAir Temperature Sensor
-
21508000769 RingRing
-
22389804300 Push NutPush Nut
-
23515177798 Main HarnessMain Harness
-
24515177925 Fusebox SupportFusebox Support
-
25270000141 ClipClip
-
26293150037 RivetRivet
-
27390402200 Pop Rivet 3/16Pop Rivet 3/16
-
28234141601 Lock Washer M4Lock Washer M4
-
29250000127 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
30515176234 Female HousingFemale Housing
-
31515177289 Ground WireGround Wire
-
32515177272 CapacitorCapacitor
-
33515176607 SupportSupport
-
34515176605 HarnessHarness
-
35250000462 Screw 10-32 x 5/16''Screw 10-32 x 5/16''
-
36250200026 Lock WasherLock Washer
-
37516005515 Capacitor DecalCapacitor Decal
-
38515177193 CapCap
-
39515177758 ModuleModule
-
40514055100 LockLock
-
41414227300 Spring ClipSpring Clip
-
42619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
43414115200 Tie-Rap 180mmTie-Rap 180mm
-
43293750008 Tie-Rap 350mmTie-Rap 350mm
-
43293750001 Tie-Rap 94mmTie-Rap 94mm
-
44517304194 RH Headlamp. Includes 44 To 48RH Headlamp. Includes 44 To 48
-
44517304195 LH Headlamp. Includes 44 To 48LH Headlamp. Includes 44 To 48
-
45515176274 Halogen Bulb, 60/55W, 12VHalogen Bulb, 60/55W, 12V
-
47515176498 CapCap
-
48515176499 CoverCover
-
49250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
50250100113 Panel Nut M6Panel Nut M6
