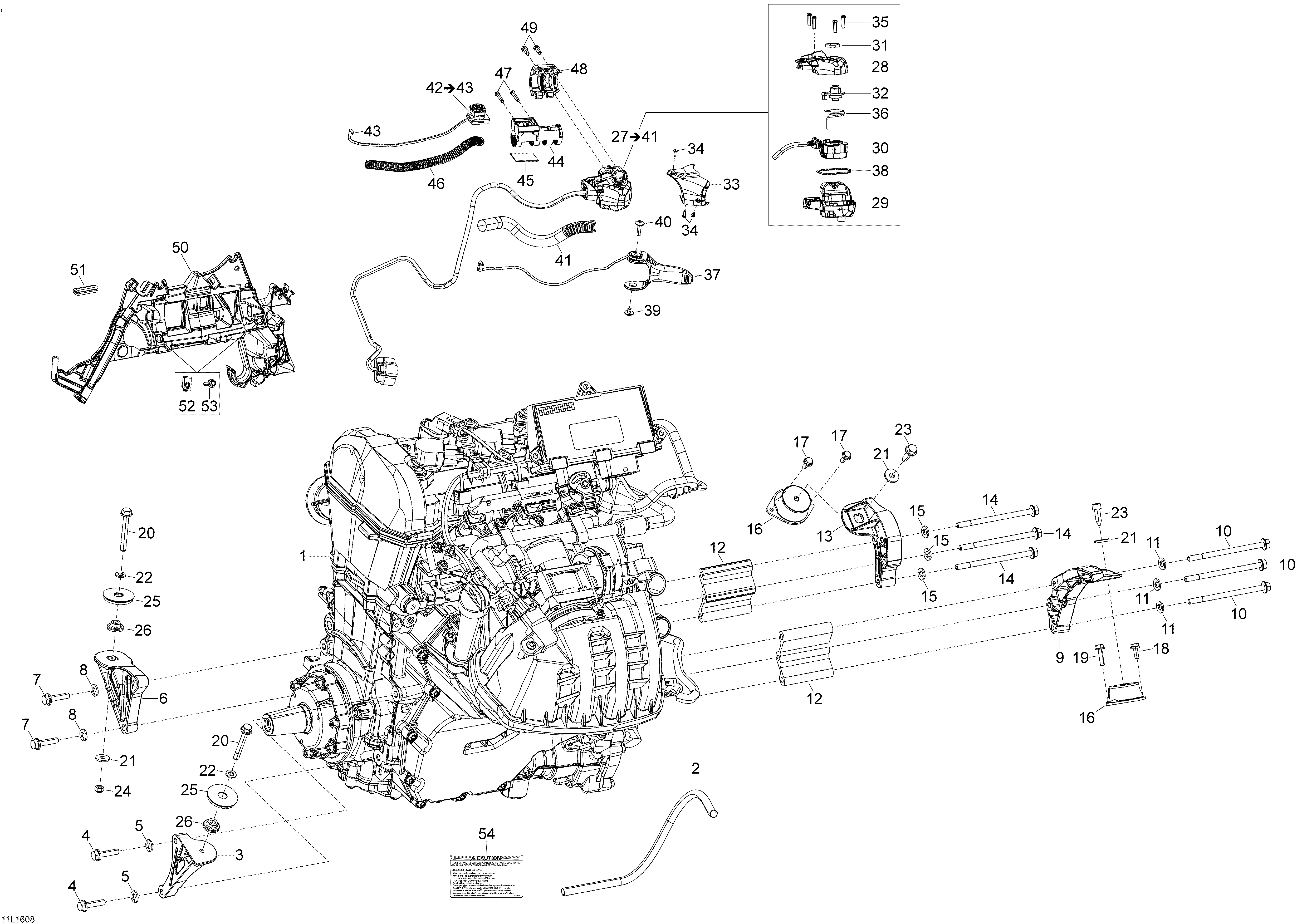

01- Engine And Engine Support для BRP Lynx Adventure LX (4-Stroke) - 2016
-
№АртикулНазвание
-
2512061067 Protector TubeProtector Tube
-
3512060660 Rear Support (PTO)Rear Support (PTO)
-
4207583586 Hex. Flange Screw M8 x 35, Scotch GripHex. Flange Screw M8 x 35, Scotch Grip
-
5234281474 Conical Spring Washer M8Conical Spring Washer M8
-
6512060661 Front Support (PTO)Front Support (PTO)
-
7207583586 Hex. Flange Screw M8 x 35, Scotch GripHex. Flange Screw M8 x 35, Scotch Grip
-
8234281474 Conical Spring Washer M8Conical Spring Washer M8
-
9512060894 Rear Support (MAG)Rear Support (MAG)
-
10230582544 Hex. Flange Screw M8 x 125, Scotch GripHex. Flange Screw M8 x 125, Scotch Grip
-
11250200157 Conical Spring Washer M8Conical Spring Washer M8
-
12512060505 ShimShim
-
13512060663 Front Support (MAG)Front Support (MAG)
-
14230582544 Hex. Flange Screw M8 x 125, Scotch GripHex. Flange Screw M8 x 125, Scotch Grip
-
15250200157 Conical Spring Washer M8Conical Spring Washer M8
-
16512060729 Rubber MountRubber Mount
-
17207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
18207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
19207562534 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
20207586044 Hex. Flange Screw M8 x 60, Scotch GripHex. Flange Screw M8 x 60, Scotch Grip
-
21503183200 WasherWasher
-
22250200008 Flat Washer M8Flat Washer M8
-
23250000257 Cone Screw M8 x 30Cone Screw M8 x 30
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
25512060647 StopperStopper
-
26512060285 SpacerSpacer
-
27512061113 Housing Ass'y. Includes 27 To 41Housing Ass'y. Includes 27 To 41
-
31293250307 Shaft SealShaft Seal
-
33512060862 CapCap
-
34250000623 Torx Screw 2.9 x 9.5Torx Screw 2.9 x 9.5
-
35250000671 Torx ScrewTorx Screw
-
40250000528 Torx Screw M5 x 20Torx Screw M5 x 20
-
41515177716 Protector TubeProtector Tube
-
42515177362 Kill Switch. Includes 42 To 43Kill Switch. Includes 42 To 43
-
43515175232 Male TerminalMale Terminal
-
44512060844 SupportSupport
-
45294000973 Friction TapeFriction Tape
-
46515177946 Protector TubeProtector Tube
-
47250000263 Torx Screw #8-18Torx Screw #8-18
-
48512060987 Front HousingFront Housing
-
49250000632 Torx Screw M5 x 14Torx Screw M5 x 14
-
50512060994 ECU SupportECU Support
-
51271001530 Protect TrimProtect Trim
-
52250000079 Panel Nut M5Panel Nut M5
-
53207552044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
54516005521 Engine Oil Level Caution DecalEngine Oil Level Caution Decal
