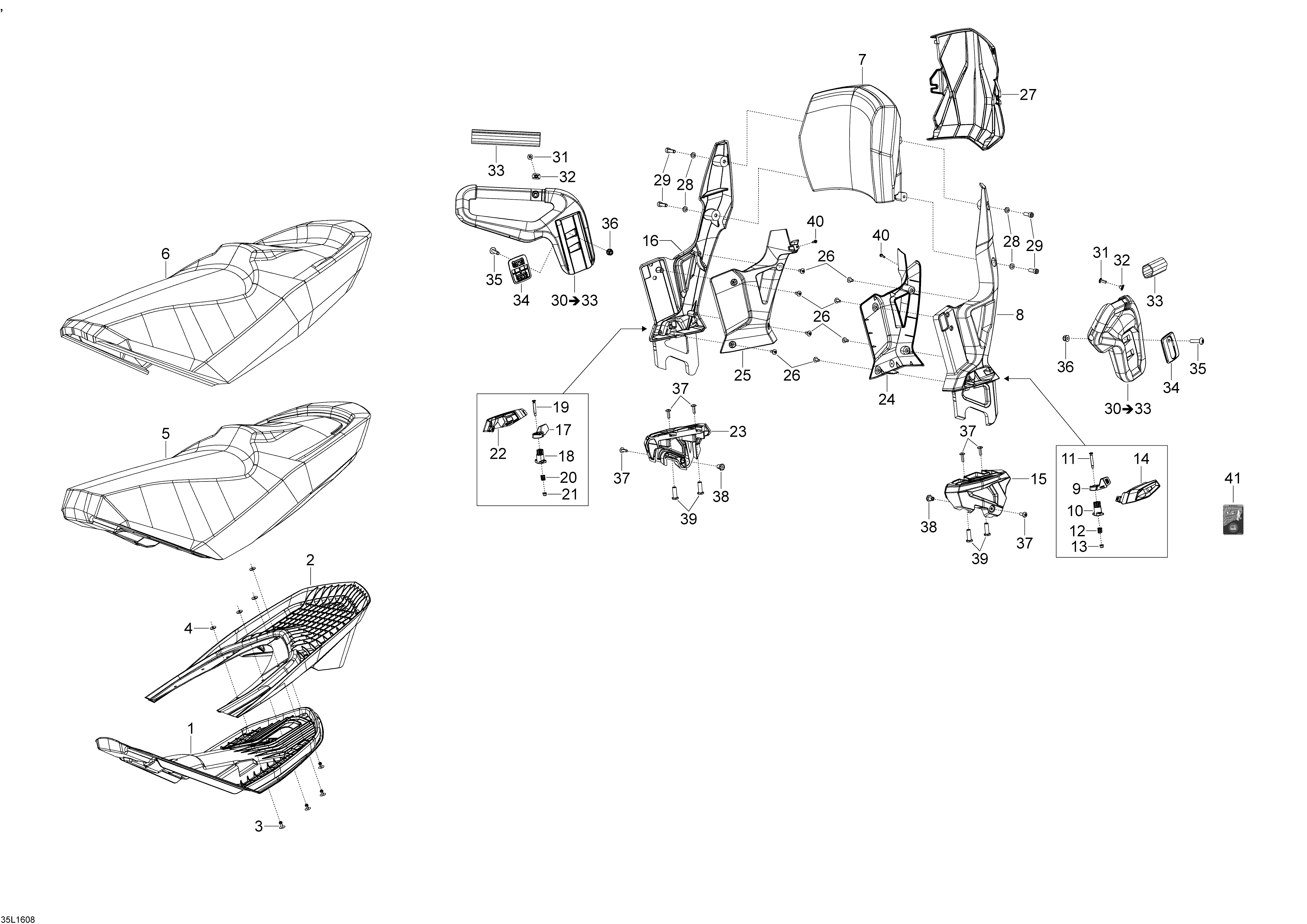

09- Seat для BRP Lynx Adventure LX (4-Stroke) - 2016
-
№АртикулНазвание
-
1510005646 Seat BaseSeat Base
-
2510005868 Seat Rear BaseSeat Rear Base
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4250200025 WasherWasher
-
5510006221 Seat FoamSeat Foam
-
6510005765 Red / Black Seat CoverRed / Black Seat Cover
-
7510005554 BackrestBackrest
-
8510005557 LH ArmLH Arm
-
9708200373 LH LeverLH Lever
-
10708200266 LH LatchLH Latch
-
11708200152 StemStem
-
12708200263 SpringSpring
-
13233251494 Elastic Flange Nut M5Elastic Flange Nut M5
-
14510005617 LH CapLH Cap
-
15511000903 LH AnchorLH Anchor
-
16510005558 RH ArmRH Arm
-
17708200374 RH LeverRH Lever
-
18708200267 RH LatchRH Latch
-
19708200152 StemStem
-
20708200263 SpringSpring
-
21233251494 Elastic Flange Nut M5Elastic Flange Nut M5
-
22510005618 RH CapRH Cap
-
23511000902 RH AnchorRH Anchor
-
24510005609 LH CoverLH Cover
-
25510005610 RH CoverRH Cover
-
26250000789 Torx Truss Screw M6 x 14Torx Truss Screw M6 x 14
-
27510005556 Rear BackrestRear Backrest
-
28234080600 Flat WasherFlat Washer
-
29205582560 Socket Screw M8 x 25Socket Screw M8 x 25
-
30510005850 LH Handle Ass'y. Includes 30 To 33LH Handle Ass'y. Includes 30 To 33
-
30510005851 RH Handle Ass'y. Includes 30 To 33RH Handle Ass'y. Includes 30 To 33
-
31250000721 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
32293100003 Weld NutWeld Nut
-
33510004449 Handle GripHandle Grip
-
34510004405 MouldingMoulding
-
35250000256 Torx Truss Screw M8 x 35Torx Truss Screw M8 x 35
-
36233281416 Elastic Flange Nut M8Elastic Flange Nut M8
-
37250000446 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
38511000822 InsertInsert
-
39520001473 InsertInsert
-
40250000068 Tapping ScrewTapping Screw
