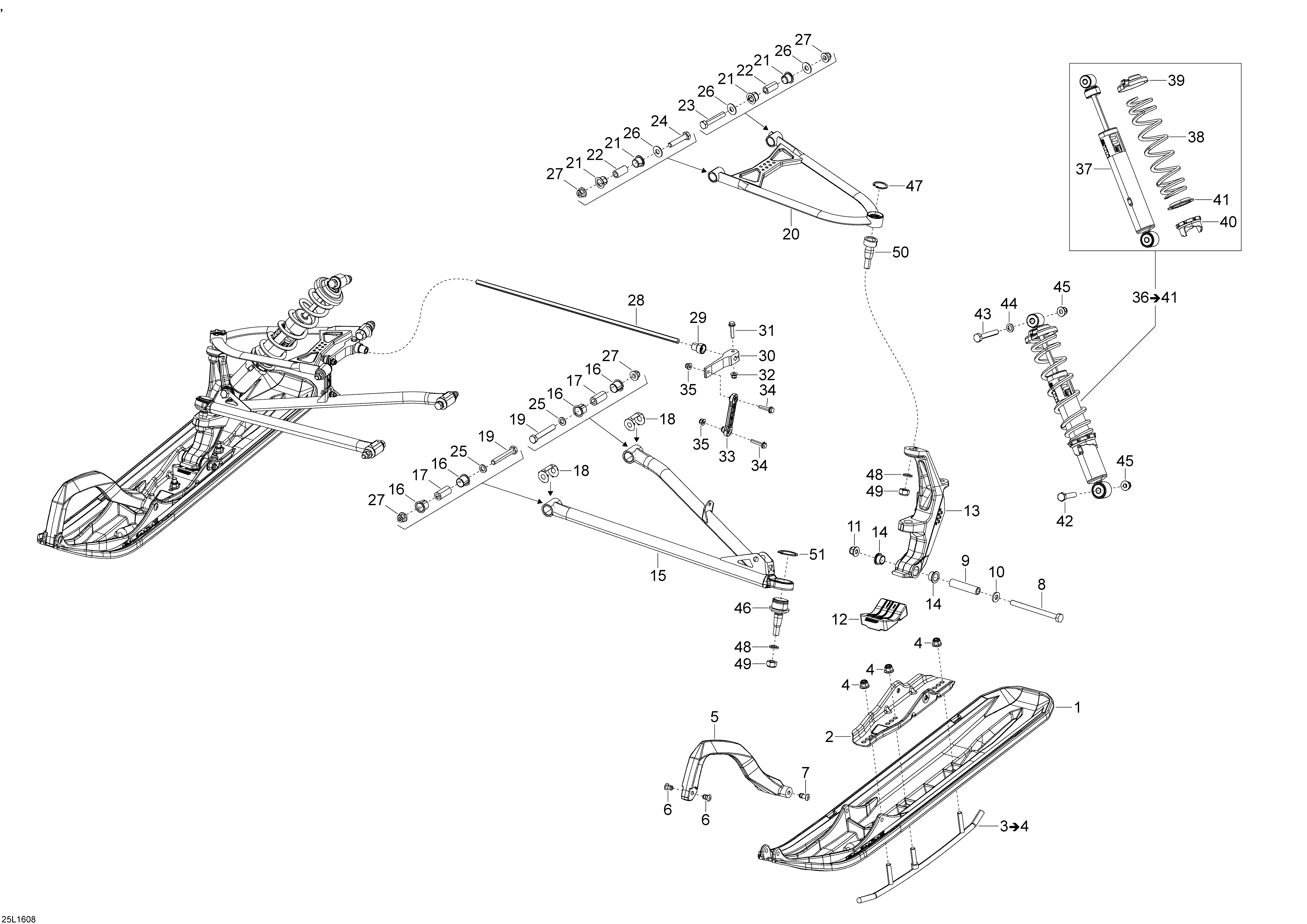

07- Front Suspension And Ski для BRP Lynx Adventure LX (4-Stroke) - 2016
-
№АртикулНазвание
-
1505073154 Black Blade SkiBlack Blade Ski
-
2505073240 Ski BridgeSki Bridge
-
3860200959 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
5505073109 Red HandleRed Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Socket HD Screw M10 x 100Socket HD Screw M10 x 100
-
9506133300 Ski AxleSki Axle
-
10732900049 WasherWasher
-
11233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
12505073411 Rubber DamperRubber Damper
-
13505073428 LH Ski Leg (10L)LH Ski Leg (10L)
-
13505073430 RH Ski Leg (10R)RH Ski Leg (10R)
-
14505072690 BushingBushing
-
15505073426 Black RH Lower ArmBlack RH Lower Arm
-
15505073420 Black LH Lower ArmBlack LH Lower Arm
-
16505073330 CushionCushion
-
17505072209 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
20505073412 Black LH Upper ArmBlack LH Upper Arm
-
20505073416 Black RH Upper ArmBlack RH Upper Arm
-
21505073329 BushingBushing
-
22505072143 BushingBushing
-
23250000290 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
24250000289 Hex. Cap Screw M10 X 50Hex. Cap Screw M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100165 Nut M10Nut M10
-
28505072602 StabilisatorStabilisator
-
29505072064 BushingBushing
-
30505072394 Stabilisator LeverStabilisator Lever
-
31207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
32233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
33505072204 Double Ball Joint LinkDouble Ball Joint Link
-
34207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
35233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
37505072517 ShockShock
-
38505072882 Spring (300mm - 16N/mm)Spring (300mm - 16N/mm)
-
39230076 Spring SeatSpring Seat
-
40505073625 Adjuster CamAdjuster Cam
-
41503191872 Spring GuideSpring Guide
-
42207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
43207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
44503189564 WasherWasher
-
45233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
46505073636 Ball JointBall Joint
-
47293370070 CirclipCirclip
-
48234021410 Flat WasherFlat Washer
-
49250100089 Nut M12Nut M12
-
50505072913 Ball JointBall Joint
-
51293370035 CirclipCirclip
