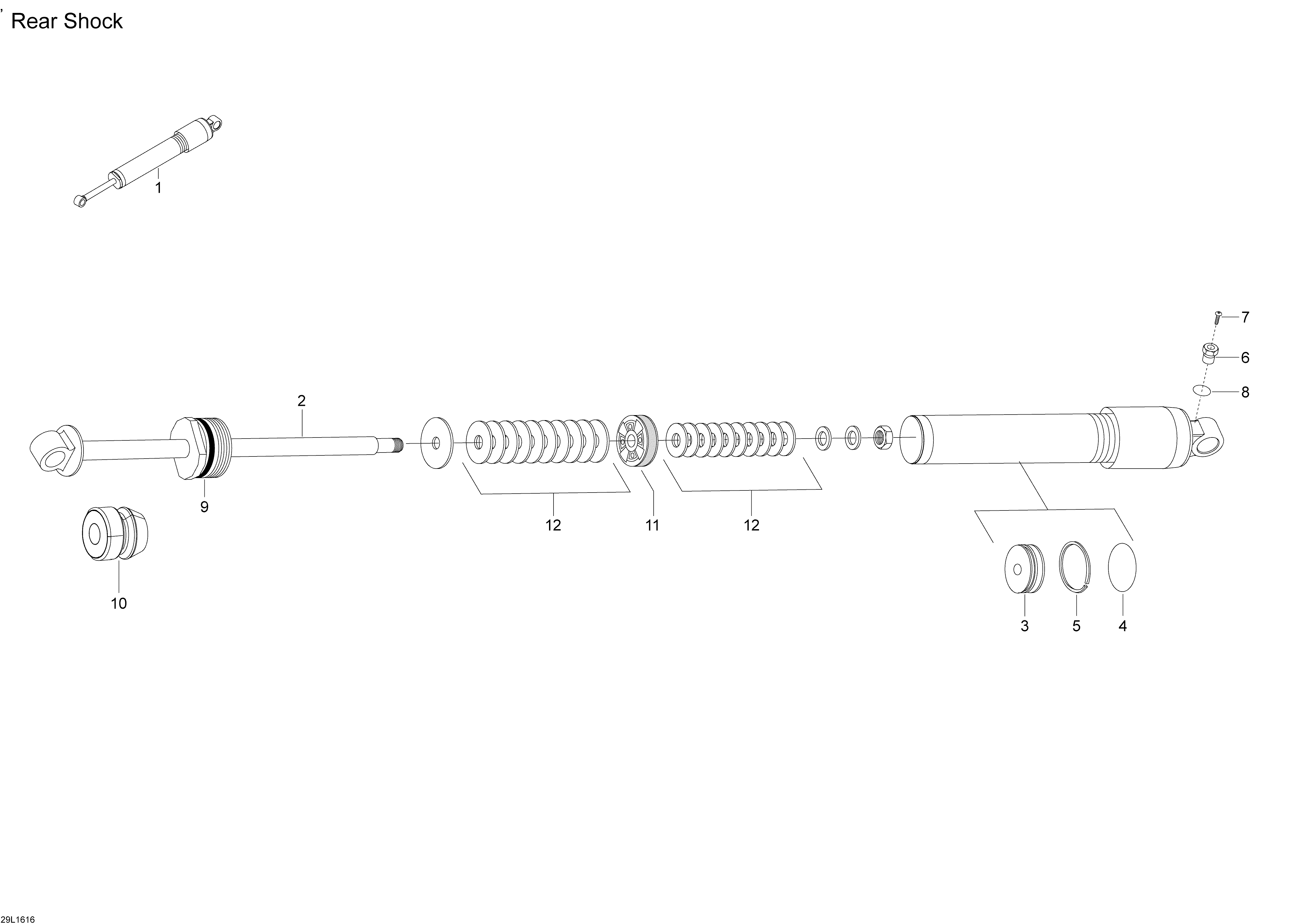

08- Rear Shocks для BRP Lynx BoonDocker DS (2-Stroke) - 2016
-
№АртикулНазвание
-
1503193523 ShockShock
-
3503189008 Floating PistonFloating Piston
-
4503189007 O RingO Ring
-
5503189006 Piston RingPiston Ring
-
6505070398 Air ValveAir Valve
-
7505070399 ScrewScrew
-
8505070400 O RingO Ring
-
9230060 Seal Carrier Ass'y 46mmSeal Carrier Ass'y 46mm
-
10619300172 Rubber CushionRubber Cushion
-
11230043 Piston 46 mm, 0 mmPiston 46 mm, 0 mm
-
11619300159 Piston 46 mm, 1.2 mmPiston 46 mm, 1.2 mm
-
11619300160 Piston 46 mm, 1.7 mmPiston 46 mm, 1.7 mm
-
11230039 Piston 46 mm, 2.0 mmPiston 46 mm, 2.0 mm
-
12619300060 Shim 40/46 mm, 17 x 0,114Shim 40/46 mm, 17 x 0,114
-
12619300069 Shim 40/46 mm, 17 x 0,203Shim 40/46 mm, 17 x 0,203
-
12619300068 Shim 40/46 mm, 18 x 0,114Shim 40/46 mm, 18 x 0,114
-
12619300067 Shim 40/46 mm, 18 x 0,152Shim 40/46 mm, 18 x 0,152
-
12230029 Shim 40/46 mm, 20 x 0,114Shim 40/46 mm, 20 x 0,114
-
12230030 Shim 40/46 mm, 20 x 0,152Shim 40/46 mm, 20 x 0,152
-
12230031 Shim 40/46 mm, 20 x 0,203Shim 40/46 mm, 20 x 0,203
-
12230032 Shim 40/46 mm, 20 x 0,254Shim 40/46 mm, 20 x 0,254
-
12619300097 Shim 40/46 mm, 20 x 0,305Shim 40/46 mm, 20 x 0,305
-
12619300143 Shim 40/46 mm, 22 x 0,114Shim 40/46 mm, 22 x 0,114
-
12619300140 Shim 40/46 mm, 22 x 0,152Shim 40/46 mm, 22 x 0,152
-
12619300098 Shim 40/46 mm, 22 x 0,203Shim 40/46 mm, 22 x 0,203
-
12619300134 Shim 40/46 mm, 22 x 0,254Shim 40/46 mm, 22 x 0,254
-
12619300144 Shim 40/46 mm, 22 x 0,305Shim 40/46 mm, 22 x 0,305
-
12619300145 Shim 40/46 mm, 24 x 0,114Shim 40/46 mm, 24 x 0,114
-
12619300146 Shim 40/46 mm, 24 x 0,152Shim 40/46 mm, 24 x 0,152
-
12619300147 Shim 40/46 mm, 24 x 0,203Shim 40/46 mm, 24 x 0,203
-
12619300095 Shim 40/46 mm, 24 x 0,254Shim 40/46 mm, 24 x 0,254
-
12619300148 Shim 40/46 mm, 24 x 0,305Shim 40/46 mm, 24 x 0,305
-
12619300149 Shim 40/46 mm, 26 x 0,114Shim 40/46 mm, 26 x 0,114
-
12619300141 Shim 40/46 mm, 26 x 0,152Shim 40/46 mm, 26 x 0,152
-
12619300150 Shim 40/46 mm, 26 x 0,203Shim 40/46 mm, 26 x 0,203
-
12619300099 Shim 40/46 mm, 26 x 0,254Shim 40/46 mm, 26 x 0,254
-
12619300100 Shim 40/46 mm, 26 x 0,305Shim 40/46 mm, 26 x 0,305
-
12619300101 Shim 40/46 mm, 28 x 0,114Shim 40/46 mm, 28 x 0,114
-
12619300151 Shim 40/46 mm, 28 x 0,152Shim 40/46 mm, 28 x 0,152
-
12619300102 Shim 40/46 mm, 28 x 0,203Shim 40/46 mm, 28 x 0,203
-
12619300103 Shim 40/46 mm, 28 x 0,254Shim 40/46 mm, 28 x 0,254
-
12619300152 Shim 40/46 mm, 28 x 0,305Shim 40/46 mm, 28 x 0,305
-
12619300153 Shim 40/46 mm, 30 x 0,114Shim 40/46 mm, 30 x 0,114
-
12619300104 Shim 40/46 mm, 30 x 0,152Shim 40/46 mm, 30 x 0,152
-
12619300154 Shim 40/46 mm, 30 x 0,203Shim 40/46 mm, 30 x 0,203
-
12619300113 Shim 40/46 mm, 30 x 0,254Shim 40/46 mm, 30 x 0,254
-
12619300056 Shim 40/46 mm, 30 x 0,305Shim 40/46 mm, 30 x 0,305
-
12230082 Shim 40/46 mm, 32 x 0,114Shim 40/46 mm, 32 x 0,114
-
12619300137 Shim 40/46 mm, 32 x 0,152Shim 40/46 mm, 32 x 0,152
-
12619300138 Shim 40/46 mm, 32 x 0,203Shim 40/46 mm, 32 x 0,203
-
12619300059 Shim 40/46 mm, 32 x 0,254Shim 40/46 mm, 32 x 0,254
-
12619300022 Shim 40/46 mm, 32 x 0,305Shim 40/46 mm, 32 x 0,305
-
12230033 Shim 40/46 mm, 34 x 0,114Shim 40/46 mm, 34 x 0,114
-
12230034 Shim 40/46 mm, 34 x 0,152Shim 40/46 mm, 34 x 0,152
-
12230035 Shim 40/46 mm, 34 x 0,203Shim 40/46 mm, 34 x 0,203
-
12230036 Shim 40/46 mm, 34 x 0,254Shim 40/46 mm, 34 x 0,254
-
12619300070 Shim 40/46 mm, 34 x 0,305Shim 40/46 mm, 34 x 0,305
-
12230037 Shim 40/46 mm, 36 x 0,114Shim 40/46 mm, 36 x 0,114
-
12619300155 Shim 40/46 mm, 36 x 0,152Shim 40/46 mm, 36 x 0,152
-
12619300142 Shim 40/46 mm, 36 x 0,203Shim 40/46 mm, 36 x 0,203
-
12619300156 Shim 40/46 mm, 36 x 0,254Shim 40/46 mm, 36 x 0,254
-
12619300105 Shim 40/46 mm, 36 x 0,305Shim 40/46 mm, 36 x 0,305
-
12230040 Shim 40/46 mm, 38 x 0,152Shim 40/46 mm, 38 x 0,152
-
12230041 Shim 40/46 mm, 38 x 0,203Shim 40/46 mm, 38 x 0,203
-
12230042 Shim 40/46 mm, 38 x 0,254Shim 40/46 mm, 38 x 0,254
-
12619300106 Shim 40/46 mm, 38 x 0,305Shim 40/46 mm, 38 x 0,305
-
12619300157 Shim 40/46 mm, 40 x 0,152Shim 40/46 mm, 40 x 0,152
-
12619300112 Shim 40/46 mm, 40 x 0,203Shim 40/46 mm, 40 x 0,203
-
12619300158 Shim 40/46 mm, 40 x 0,254Shim 40/46 mm, 40 x 0,254
-
12619300107 Shim 40/46 mm, 40 x 0,305Shim 40/46 mm, 40 x 0,305
